INSTALLATION
9
■ Mark where to drill holes for the installation screws.
➤ A minimum of 1
1
/
8
" flat vertical surface is required for spacer block installation and
1
3
/
8
" flat vertical surface is required for installation with extension brackets.
➤ Align the spacer blocks or extension brackets on your height marks.
➤ Align the outside edge of the end spacer blocks or extension brackets on your bracket
location marks, then mark each of the screw holes. Center any additional brackets on
the bracket location marks to mark their screw holes.
CautIon: The rear of the blocks/brackets must be flush against a flat mounting surface.
Do not mount brackets oncurved molding.

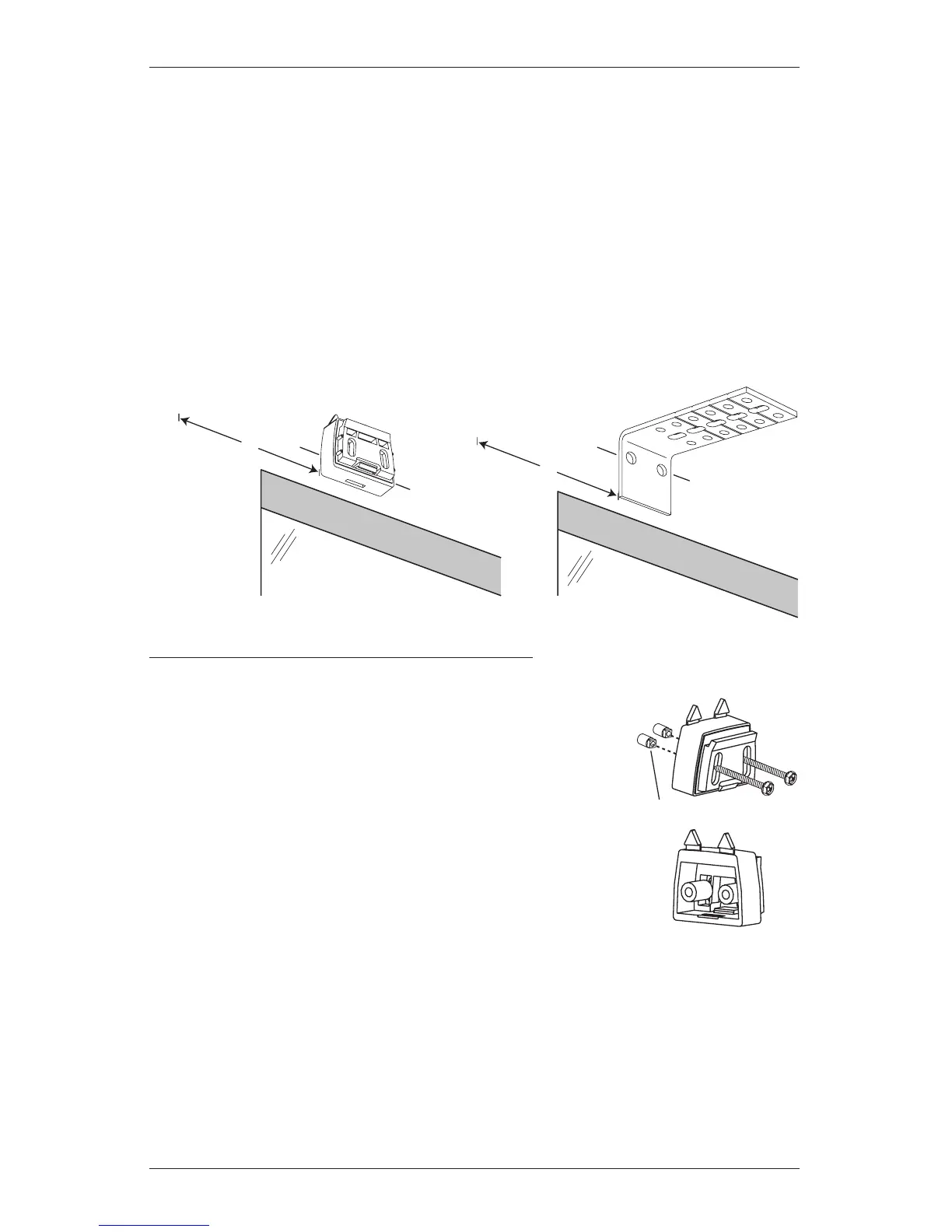

Mount the Spacer Blocks or Extension Brackets
■ Drill the screw holes using a
3
/
32
" drill bit.
Important: Use drywall anchors when mounting into drywall.
■ Attach the spacer blocks or extension brackets using the
screws provided.
➤ For the spacer block installation, first insert the square end
of the bushings into the slots in the spacer block. Insert the
screws through bushings.
Important: With spacer blocks, place the screws in the
middle of the slots to make aligning the brackets easier.
