INSTALLATION
13

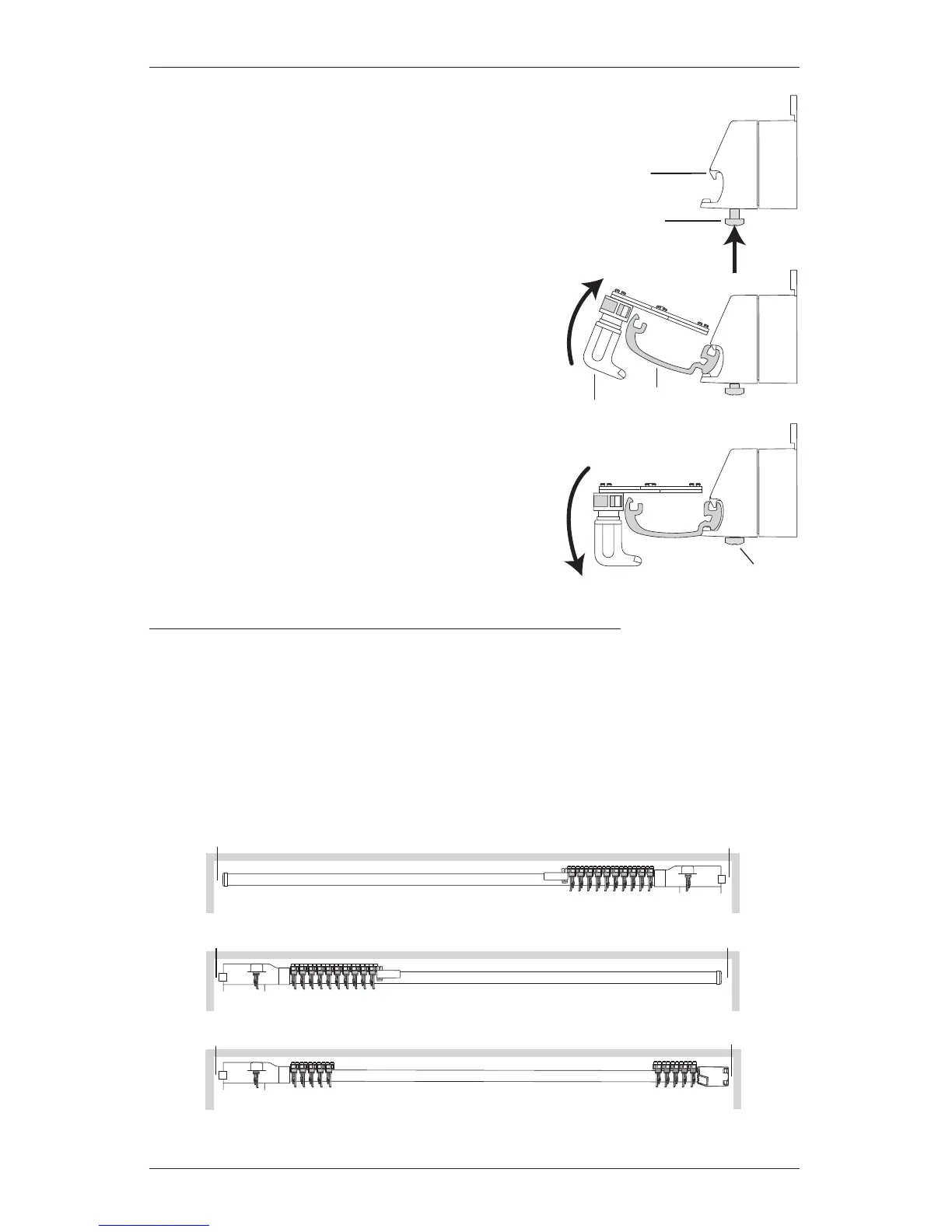

Install the SofTrak
™
Headrail
■ Push up on the locking screws. This raises the locking
tab and makes the headrail easier to install.
■ The grooves on the back of the headrail are designed
to snap into the locking tab on the faceplate and
inside/ceiling mount bracket.
➤ Tilt the front of the headrail (the side with the
pinion clips) up so the top groove fits into the
locking tab on each installation bracket.
■ With the top groove in place on all brackets, tilt
the headrail down so the bottom groove fits into
the bottom tabs on the installation brackets.
■ Position/center the headrail and tighten the locking
screws with a screwdriver. Do not overtighten.
Inside Mount and Wall-To-Wall Outside Mount Installations
■ After the SofTrak
™
headrail is installed into the installation brackets, check the clearance at
eachend and make any necessary adjustments.
Important: The recommended amount of clearance varies according to the motor end
and stack design, as shown below.
■ Lock the headrail into place by tightening the locking screws on the bottom of the brackets
until they are snug. Do not overtighten.
Tilt Down
Pinion
Clip
Tighten
Tilt Up
Locking
Tab
SofTrak
Headrail
Locking
Screw
Split Stack and Dual Panel Design — Minimum Clearances*
5
/
8
"
Non-Motor End*
5
/
8
"
Right Stack Design — Minimum Clearances
7
/
8
"
Non-Motor End
5
/
8
"
Left Stack Design — Minimum Clearances
5
/
8
"
Non-Motor End
7
/
8
"
*Split Stack Design: Motor is on either the right or left as ordered.
Motor End*
Motor End
Motor End
