GETTING STARTED
3
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows very
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■ For proper operation, the fabric must clear all obstructions, including window cranks,
handles, and moldings.
➤ Replace protruding window cranks with T-cranks, as needed.
■ Refer to the appropriate page below based on your order:
➤ Inside/Ceiling Mount — Page 4
➤ Outside Mount — Page 7

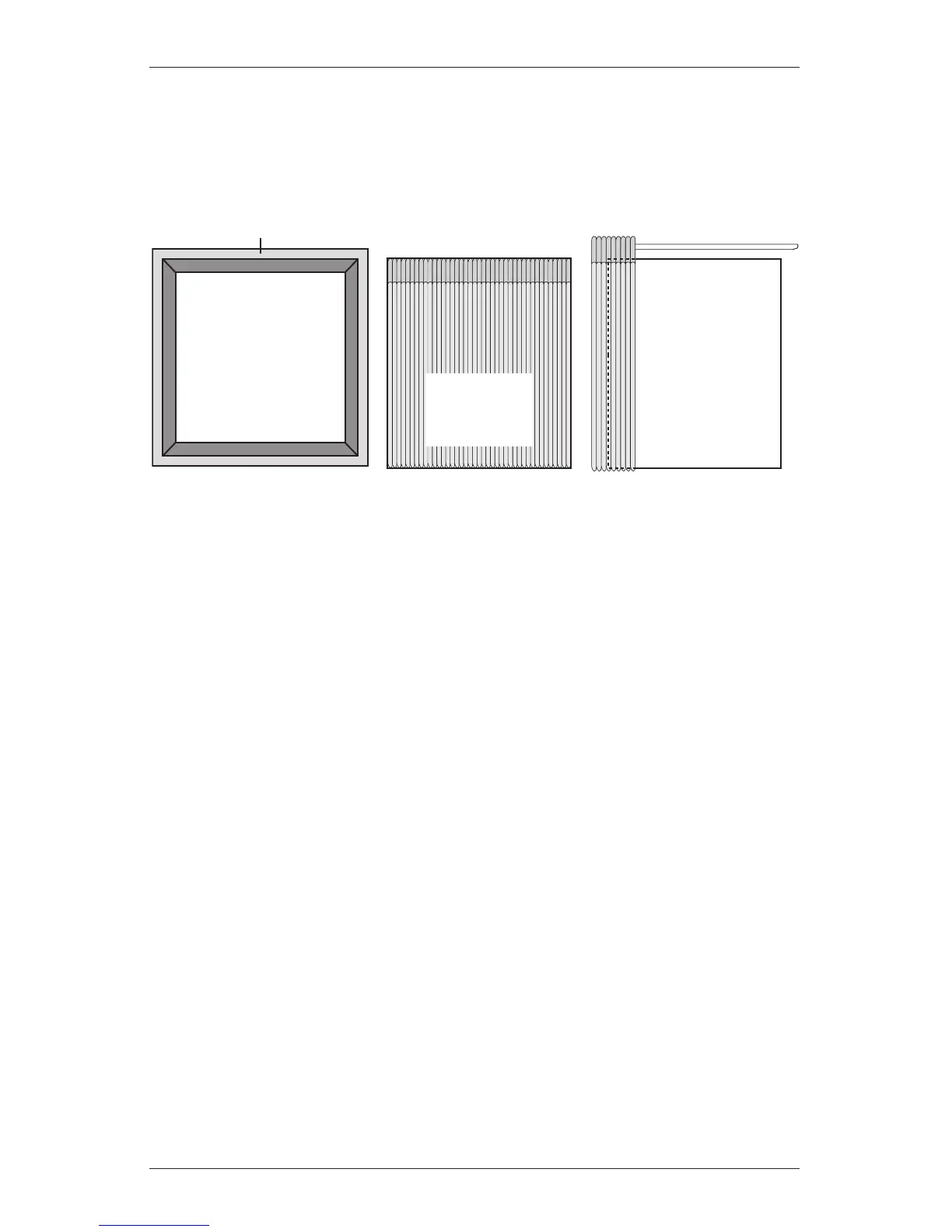

Collectively, the sill and
jambs are called the
“window casement.”
Molding (or Wall)
Head Jamb
Sill (or Floor)
Jamb Jamb
Inside Mount
Sheer or drapery
fits within
window opening.
Outside Mount
Sheer or drapery
mounts outside
window opening.
