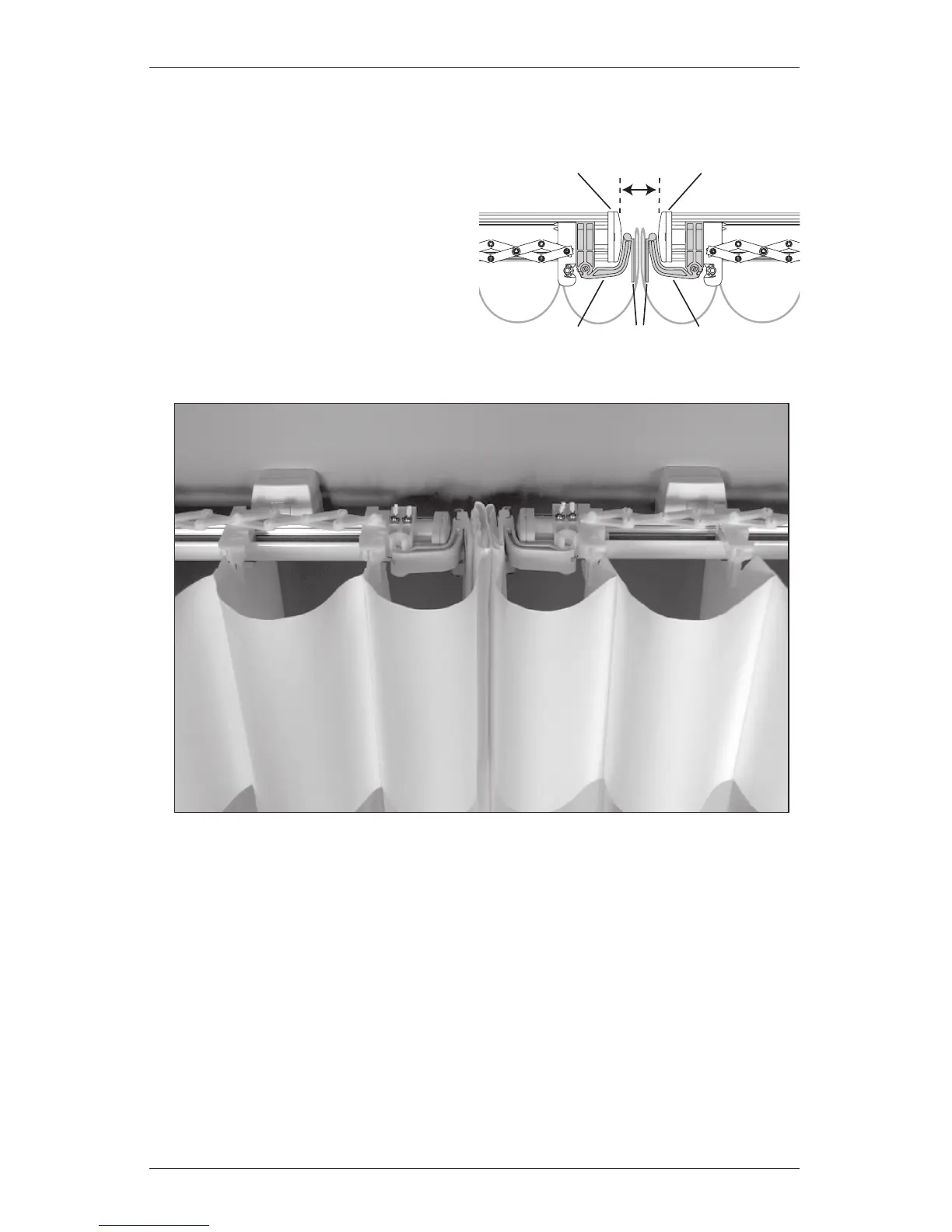

Side-by-Side (Abutted) Installations (Simulated Split Stack)
A simulated split stack (the fabric opens in the
center) is two side stack systems installed with
the non-motor ends side-by-side.
■ Adjust the SofTrak
™
headrails according
to the illustration for proper swivel arm
operation.
Important: Be sure to measure the
spacing from end cap to end cap, not from
the swivel arms.
Non-Motor
End Cap
Non-Motor
End Cap
1
1
/ 2 "
Swivel
Plates
Swivel
Arm
Swivel
Arm
RTW
Swivel
Plates
RTW Not Recommended
Proper Installation
Simulated Split Stack
