Mount the Installation Brackets — Inside/Ceiling Mount
If you are mounting on corner or bay windows, refer to “Bracket Locations — Corner and Bay
Windows” on page12 for specific bracket locations. Return to this page after identifying
thelocations.
■ Your order will include the appropriate number of inside/ceiling mount installation brackets.
The number of installation brackets required varies with headrail width, as shown below.
Measure and Mark Bracket Locations
■ Measure for the bracket locations.
➤ Mark 5" from each jamb on the mounting surface. These marks are for the outside edge
of the end installation brackets.
➤ If more than two installation brackets are required (see table above), mark the locations
of additional bracket(s) spaced evenly between the two end brackets.
Important: For the most reliable operation, the motor side bracket needs to be close
(
3
/
4
" or less) to the motor.
CautIon: Installation brackets should be fastened into wood whenever possible.
Use drywall anchors when mounting into drywall. When attaching brackets into drywall,
additional brackets may be required to keep the headrail level after the fabric is attached.

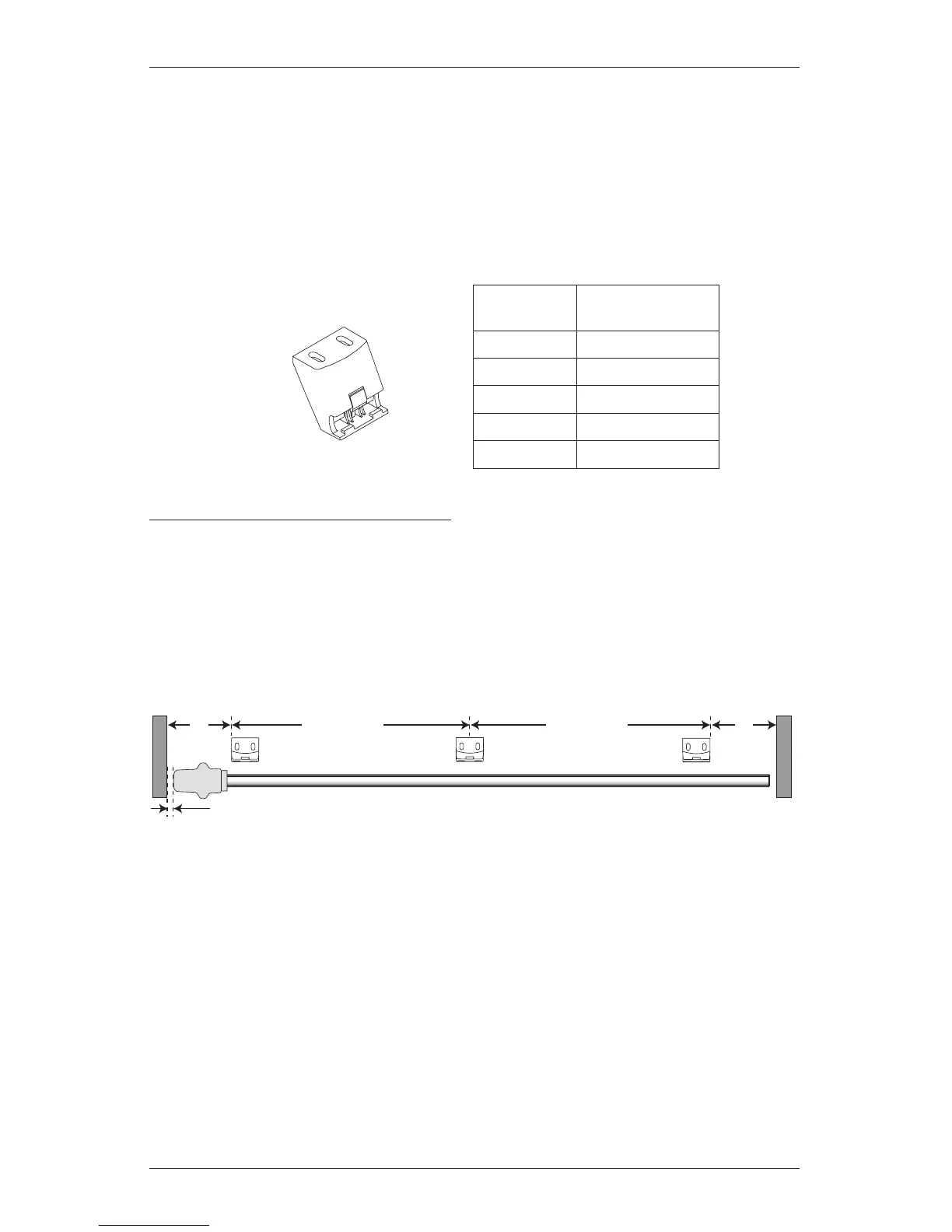

Inside/Ceiling Mount
Installation Bracket
To Next Page
