INSTALLATION
5
■ Mark where to drill holes for the screws.
Important: The front edges of the brackets must be level and aligned to each other.
➤ Align the outside edge of the
end brackets on your marks,
then mark each of the screw
holes. Center any additional
brackets on the marks to
mark their screw holes.
➤ The minimum depth required
is 1" for the Classic 3
1
/
2
"
vane size and 2" for the
Quintette
®
4
3
/
4
" vane size.
➤ To fully recess the fabric in the window casement, 6
1
/
4
" is needed for the Classic 3
1
/
2
"
vane size, and 8
1
/
4
" is needed for the Quintette 4
3
/
4
" vane size. See the illustration
below.

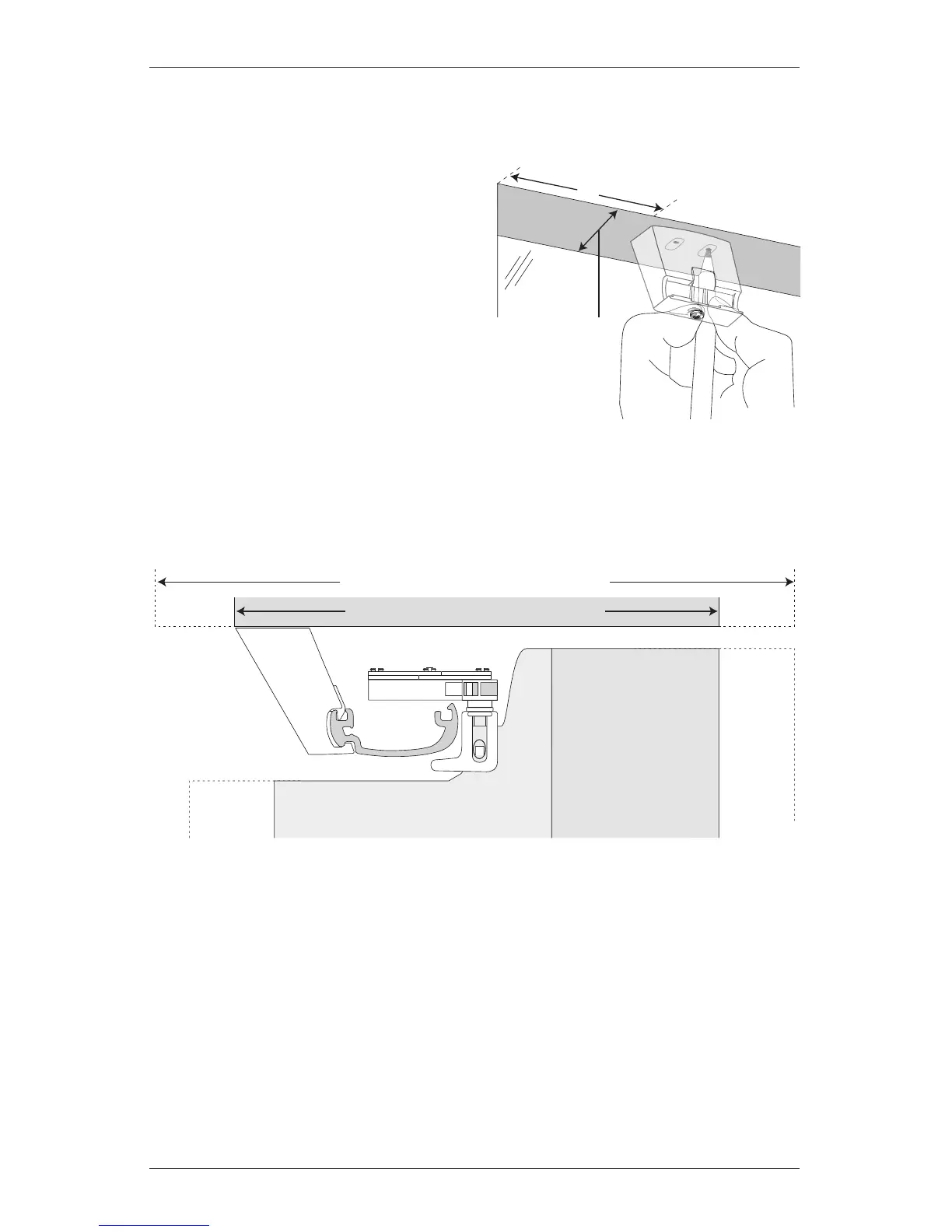

Minimum Inside Mount Depth:
Classic 3
1
/
2
" Vane Size = 1"
Quintette 4
3
/
4
" Vane Size = 2"
5"
SofTrak
™
Headrail
Bracket
Inside Mount
Fully Recessed Mounting Depth
Stacked
Classic Fabric
(Privacy Sheers
and Modern
Draperies)
Stacked
Quintette
Fabric
Classic Vane
Quintette
Vane
6
1
/
4
" Minimum for Classic 3
1
/
2
" Vane Size
8
1
/
4
" Minimum for Quintette 4
3
/
4
" Vane Size
Window
Side
