Mounting the Sensor
Surface Mounting
Using the screws provided with your sensor, mount the
transmitter on any surface where it will be exposed to
unobstructed rainfall, but not in the path of sprinkler
spray. The sensor should be oriented upright (as pictured),
but the swivel bracket can be moved for mounting on
any angled surface. Loosen the locknut and screw before
swiveling the bracket, and then re-tighten.
Gutter Mounting
The SGM allows the transmitter to be mounted
directly to the edge of a gutter. Install the SGM on
the transmitter by removing the metal extension arm
supplied with your sensor and reinstalling the SGM.
Position the gutter mount on the edge of the gutter and
twist the thumbscrew to secure it in place.

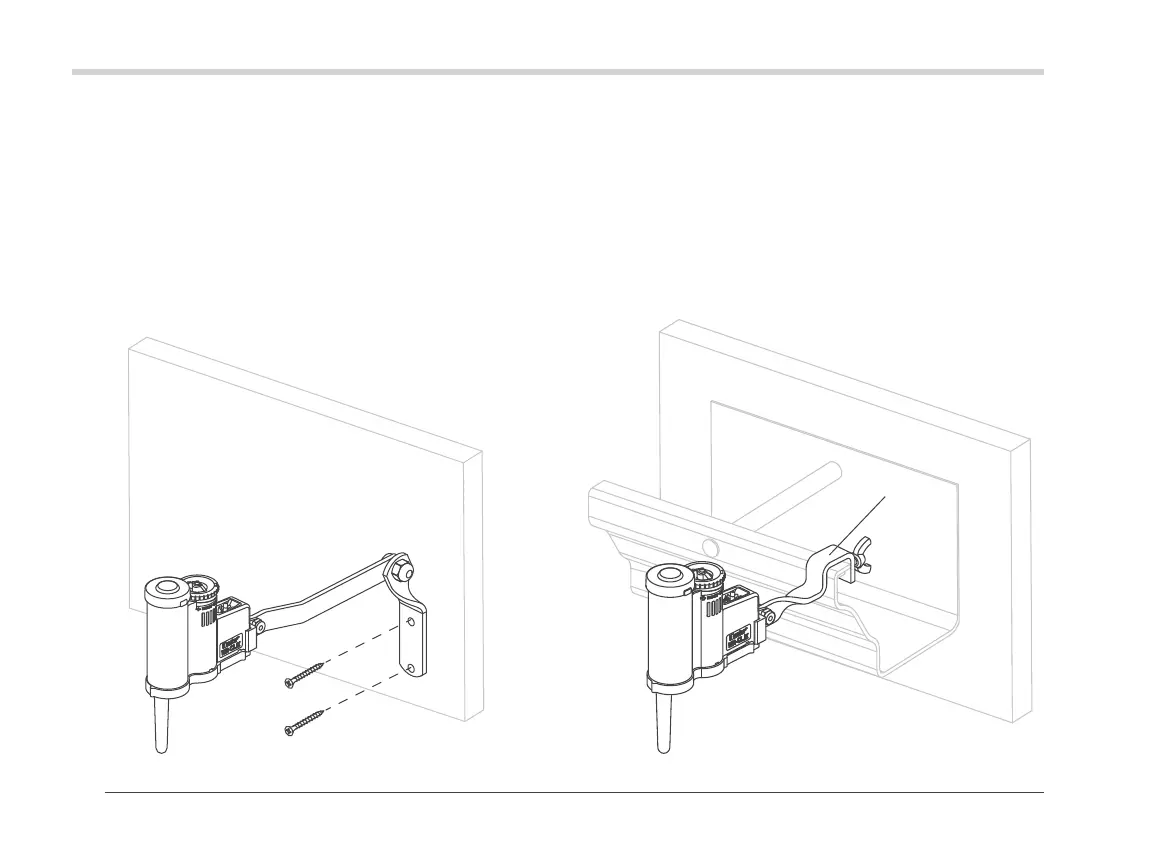

Surface Mount Gutter Mount
SGM
