3.10 Installation examples
A number of examples of settings are presented on the following pages. Each installation has been
assessed according to the scale:
• Non approved installation
• Approved installation
• Fully approved installation.

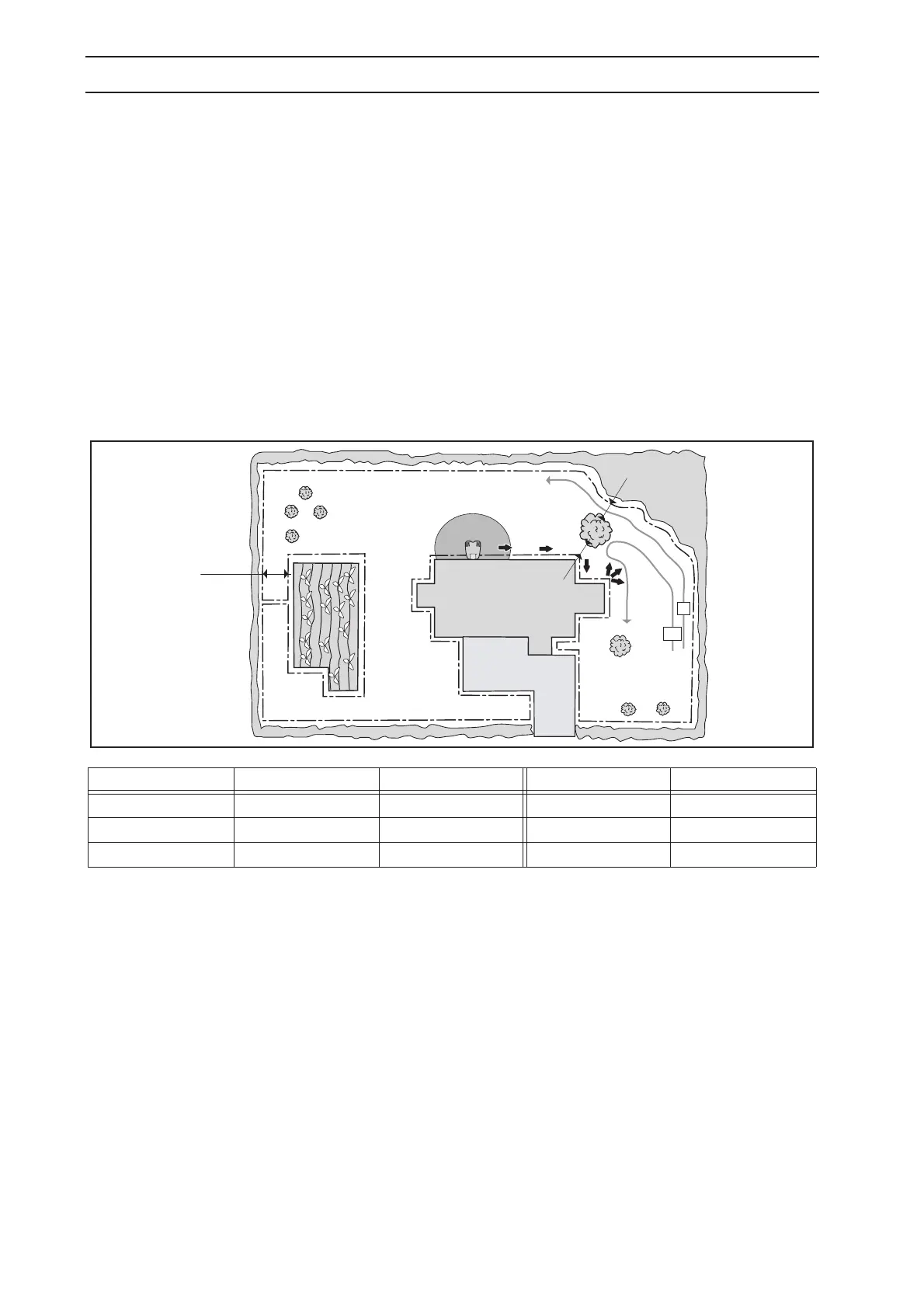

Example number 1
This installation is not approved if Corridor width 10 is used. This results in a corridor that is too wide.
Automower
®
would not pass through this passage.
On the other hand, with Corridor width 3 the installation is approved. Automower
®
can pass through this
passage. However, a narrow corridor can result in tracks forming on the lawn, especially around a large
island. A guide wire is recommended through the passage.
Follow loop Boundary wire Guide wire Follow loop out Area 1
Delay 11 minutes 7 minutes Direction Left
Corridor width 10 / 3 6 Distance 20 metres (65 ft)
Proportion 30 %
10
3
2m (6.5ft)
2m (6.5ft)
3m (10ft)
1
Approved with
Corridor width 3
