12 SERVICE WORK ON THE CHASSIS

114

F00594-10

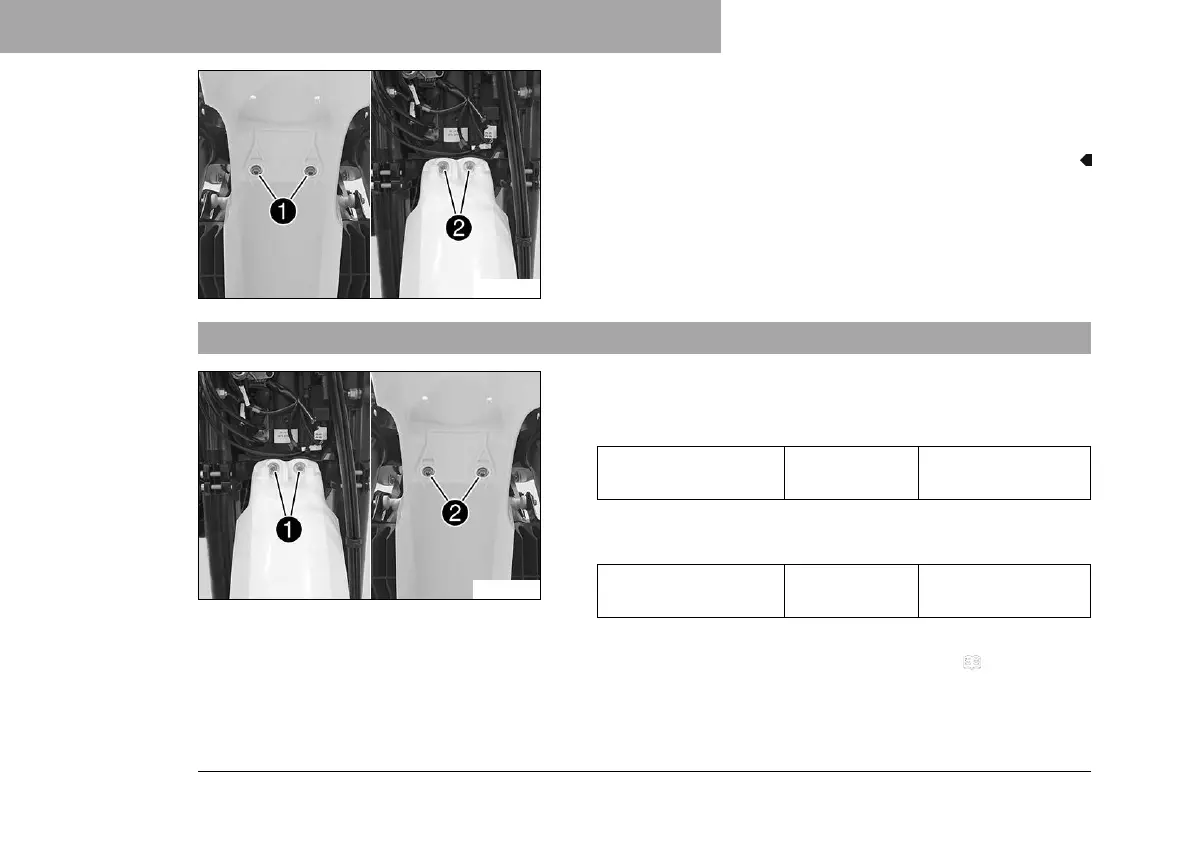

Main work

–

Remove screws

–

Remove screws

and take off the fender.

12.18 Installing front fender

F00595-10

Main work

–

Position front fender. Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

–

Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

Finishing work

– Install the headlight mask with the headlight. ( p. 188)

Default Chapter5
- Table of Contents5
1 Means of Representation 111
- Symbols Used11
- Formats Used12
2 Safety Advice 213
- Use Definition - Intended Use13
- Misuse13
- Degrees of Risk and Symbols14
- Tampering Warning15
- Safe Operation16
- Protective Clothing17
- Work Rules17
- Environment18
- Owner's Manual18
3 Important Notes20
- Manufacturer Warranty, Implied Warranty20
- Fuel, Auxiliary Substances20
- Spare Parts, Accessories20
- Service21
- Figures21
- Customer Service21
4 View of Vehicle22
- View of Vehicle, Front Left (Example)22
- View of Vehicle, Rear Right (Example)24
5 Serial Numbers26
- Vehicle Identification Number26
- Type Label27
- Key Number28
- Engine Number28
- Fork Part Number29
- Shock Absorber Article Number29
6 Controls30
- Clutch Lever30
- Hand Brake Lever30
- Throttle Grip31
- Horn Button31
- Light Switch32
- Turn Signal Switch32
- Emergency off Switch33
- Start Button34
- Combination Switch34
- Ignition and Steering Lock36
- Overview of Indicator Lights37
- Seat Release39
- Grab Handles39
- Passenger Foot Pegs40
- Shift Lever40
- Foot Brake Lever41
- Side Stand42
- Opening Fuel Tank Filler Cap43
- Closing the Fuel Tank Filler Cap45
7 Dash46
- Overview46
- Activation and Test46
- Setting the Combination Instrument47
- Setting Kilometers or Miles48
- Setting the Clock49
- Setting the Service Interval50
- Distance 151
- Distance 252
- Average Speed 153
- Average Speed 253
- Riding Time 154
- Riding Time 255
- Service Hour Counter55
- Clock56
- Service Interval Display56
- Tachometer57
- Odometer58
- Gear Display59
- Service Display59
- Distance Fuel Reserve60
8 Preparing for Use 861
- Advice on Preparing for First Use61
- Running in the Engine63
- Loading the Vehicle64
9 Riding Instructions 967
- Checks and Maintenance Measures When Preparing for Use67
- Starting the Vehicle68
- Starting off70
- Shifting, Riding70
- Easy Shift76
- Motorcycle Traction Control77
- Braking78
- Stopping, Parking80
- Transport82
- Refueling83
10 Service Schedule86
- Additional Information86
- Required Work86
- Recommended Work89
11 Tuning the Chassis90
- Fork/Shock Absorber90
- Adjusting the Compression Damping of the Fork90
- Adjusting the Rebound Damping of the Fork92
- Compression Damping of the Shock Absorber93
- Adjusting the Low-Speed Compression Damping of the Shock Absorber94
- Adjusting the High-Speed Compression Damping of the Shock Absorber95
- Adjusting the Rebound Damping of the Shock Absorber97
- Handlebar Position98
- Adjusting the Handlebar Position99
12 Service Work on the Chassis102
- Raising the Motorcycle with a Lift Stand102
- Removing the Motorcycle from the Lift Stand102
- Raising the Motorcycle with the Rear Lifting Gear103
- Removing the Rear of the Motorcycle from the Wheel Stand104
- Lifting the Motorcycle with the Front Lifting Gear105
- Taking the Motorcycle off the Front Lifting Gear106
- Cleaning the Dust Boots of the Fork Legs107
- Removing the Fork Protector109
- Installing the Fork Protector109
- Bleeding the Fork Legs110
- Removing the Seat111
- Mounting the Seat111
- Removing the Tool Set112
- Storing Tool Set113
- Take off the Side Cover114
- Mounting the Side Cover115
- Removing Front Fender115
13 Brake System136
- Anti-Lock Braking System (ABS)136
- Adjusting the Basic Position of the Hand Brake Lever139
- Checking the Brake Discs140
- Checking the Front Brake Fluid Level141
- Adding Front Brake Fluid142
- Checking the Front Brake Linings145
- Checking the Free Travel of Foot Brake Lever146
- Adjusting the Basic Position of the Foot Brake Lever147
- Checking the Rear Brake Fluid Level149
- Adding Rear Brake Fluid150
- Checking the Rear Brake Linings152
14 Wheels, Tires154
- Removing the Front Wheel154
- Installing the Front Wheel156
- Removing the Rear Wheel159
- Installing the Rear Wheel161
- Checking the Rear Hub Damping Rubber Pieces165
- Checking the Tire Condition167
- Tubeless Tire System170
- Checking Tire Pressure171
- Checking Spoke Tension172
- Using Tire Repair Spray174
15 Electrical System 15175
- Removing the 12-V Battery175
- Installing the 12-V Battery177
- Charging the 12-V Battery179
- Changing the Main Fuse181
- Changing the ABS Fuses184
- Changing the Fuses of Individual Electrical Power Consumers186
- Removing the Headlight Mask with the Headlight189
- Installing the Headlight Mask with the Headlight190
- Changing the Headlight Bulb191
- Changing the Parking Light Bulb193
- Checking the Headlight Setting194
- Adjusting the Headlight Range195
- ACC1 and ACC2196
- Diagnostics Connector196
16 Cooling System 16197
- Checking the Antifreeze and Coolant Level198
- Checking the Coolant Level200
- Draining the Coolant202
- Filling/Bleeding the Cooling System203
- Changing the Coolant206
17 Tuning the Engine210
- Changing the Riding Mode210
- Adjusting Traction Control211
- Checking the Basic Position of the Shift Lever212
- Adjusting the Basic Position of the Shift Lever213
18 Service Work on the Engine214
- Changing the Fuel Screen214
- Checking the Engine Oil Level216
- Changing the Engine Oil and Oil Filter, Cleaning the Oil Screens217
- Adding Engine Oil225
19 Cleaning, Care228
- Cleaning the Motorcycle228
- Checks and Maintenance Steps for Winter Operation231
20 Storage 20233
- Preparing for Use after Storage236
21 Troubleshooting 21237
22 Technical Data 22241
- Engine241
- Engine Tightening Torques243
- Capacities248
- Engine Oil248
- Coolant249
- Fuel249
- Chassis249
- Electrical System251
- Tires252
- Fork252
- Shock Absorber253
- Chassis Tightening Torques255
23 Substances262
24 Auxiliary Substances 24265
25 Standards 25267
26 Index of Special Terms268
27 List of Abbreviations 27269
28 List of Symbols270
- Red Symbols270
- Yellow and Orange Symbols270
- Green and Blue Symbols271
- Index272
