WHEELS, TIRES 14

157

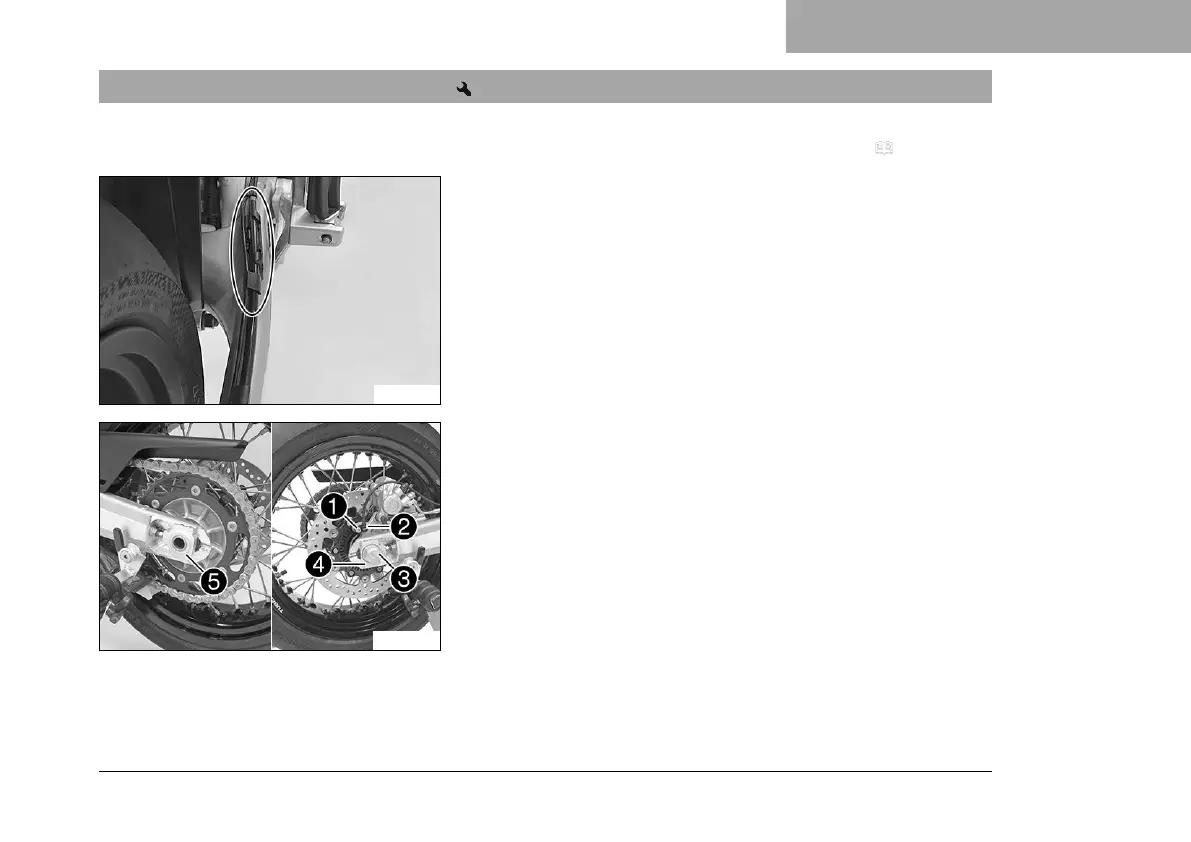

14.3 Removing the rear wheel

Preparatory work

– Raise the motorcycle with the rear lifting gear. ( p. 101)

F00598-10

Main work

– Take the brake line out of the guide.

E00025-10

– Manually press the brake caliper toward the brake disc to

push back the brake piston.

–

Remove screw

and pull wheel speed sensor

out of

the hole.

–

Remove nut

. Take off chain adjuster

–

Pull out wheel spindle

to the point where the chain

adjuster is no longer in contact with the adjusting screw.
