14 WHEELS, TIRES

154

14.2 Installing the front wheel

Warning

Danger of accidents Oil or grease on the brake discs reduces the braking effect.

– Always keep the brake discs free of oil and grease.

– Clean the brake discs with brake cleaner when necessary.

H00935-10

Main work

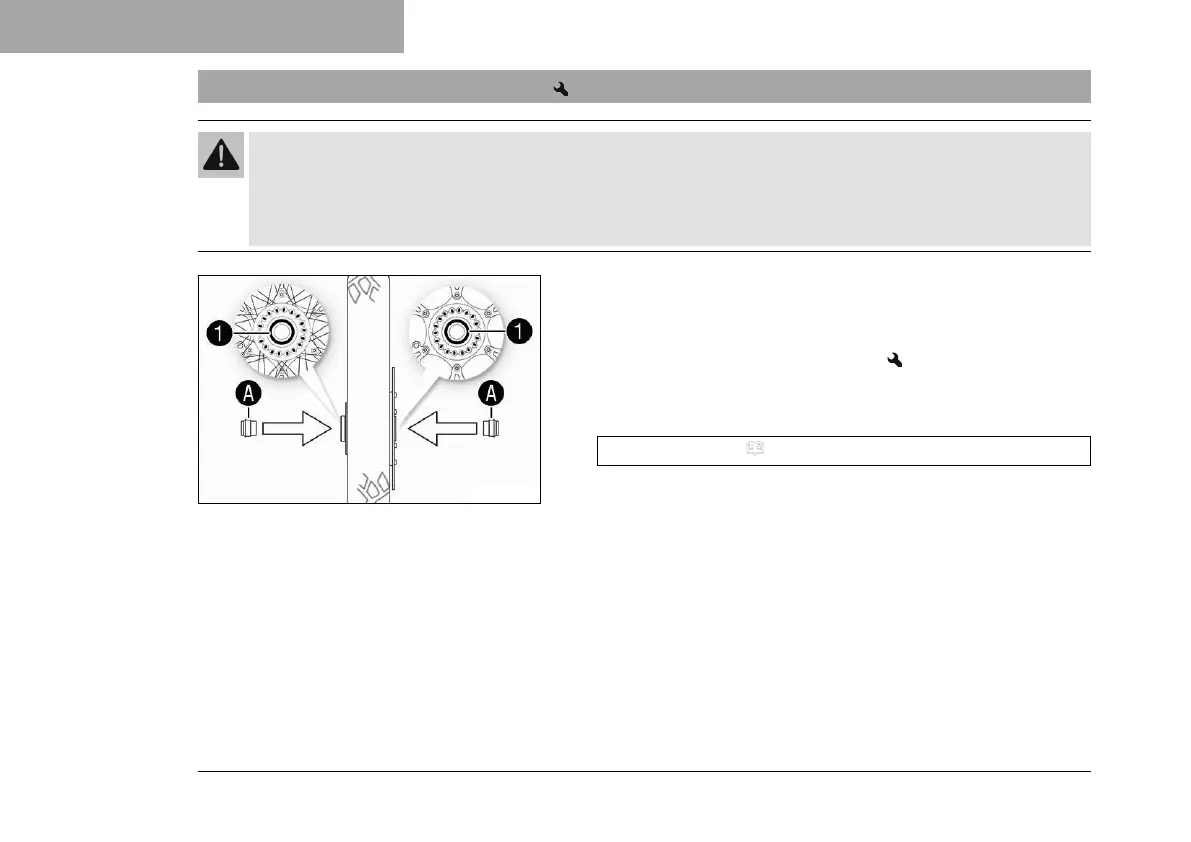

– Check the wheel bearing for damage and wear.

» If the wheel bearing is damaged or worn:

– Change front wheel bearing.

–

Clean and grease shaft seal rings

and contact

surfaces

of the spacers.

Long-life grease ( p. 263)

– Insert the spacers.

Default Chapter5
- Table of Contents5
