Husqvarna Supermoto 701 2021 User Manual
5
of 1
of 1 rating
278 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
COOLIN
G
SYSTE
M
16
205
K00402-10

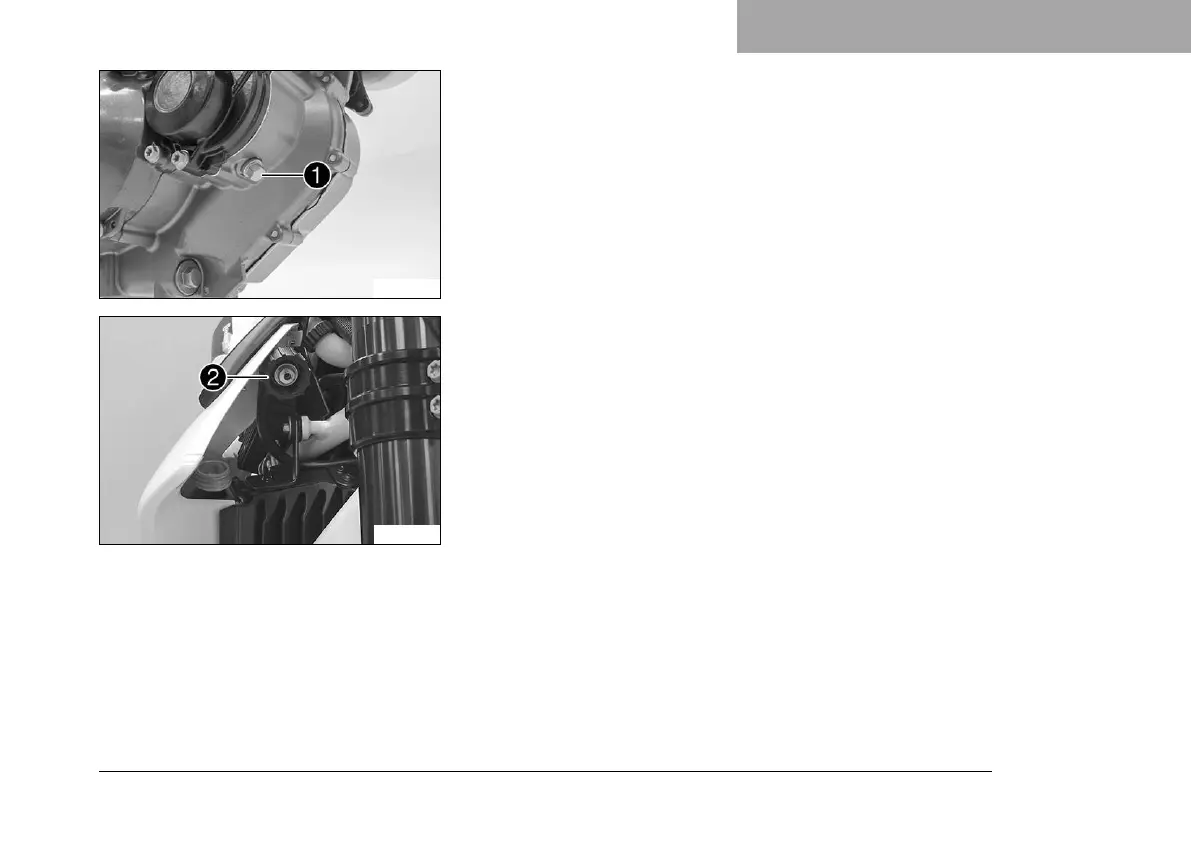

Main
work
–
Position
the
motorcycle
upright.
–
Position
an
appropriate
container
under
the
engine.
–
Remove
screw
1
with
the
seal
ring.
F00608-10
–
Remove
radiator
cap
2
.
–
Completely
drain
the
coolant.
206
208
Table of Contents
Default Chapter
5
Table of Contents
5
1 Means of Representation 1
11
Symbols Used
11
Formats Used
12
2 Safety Advice 2
13
Use Definition - Intended Use
13
Misuse
13
Degrees of Risk and Symbols
14
Tampering Warning
15
Safe Operation
16
Protective Clothing
17
Work Rules
17
Environment
18
Owner's Manual
18
3 Important Notes
20
Manufacturer Warranty, Implied Warranty
20
Fuel, Auxiliary Substances
20
Spare Parts, Accessories
20
Service
21
Figures
21
Customer Service
21
4 View of Vehicle
22
View of Vehicle, Front Left (Example)
22
View of Vehicle, Rear Right (Example)
24
5 Serial Numbers
26
Vehicle Identification Number
26
Type Label
27
Key Number
28
Engine Number
28
Fork Part Number
29
Shock Absorber Article Number
29
6 Controls
30
Clutch Lever
30
Hand Brake Lever
30
Throttle Grip
31
Horn Button
31
Light Switch
32
Turn Signal Switch
32
Emergency off Switch
33
Start Button
34
Combination Switch
34
Ignition and Steering Lock
36
Overview of Indicator Lights
37
Seat Release
39
Grab Handles
39
Passenger Foot Pegs
40
Shift Lever
40
Foot Brake Lever
41
Side Stand
42
Opening Fuel Tank Filler Cap
43
Closing the Fuel Tank Filler Cap
45
7 Dash
46
Overview
46
Activation and Test
46
Setting the Combination Instrument
47
Setting Kilometers or Miles
48
Setting the Clock
49
Setting the Service Interval
50
Distance 1
51
Distance 2
52
Average Speed 1
53
Average Speed 2
53
Riding Time 1
54
Riding Time 2
55
Service Hour Counter
55
Clock
56
Service Interval Display
56
Tachometer
57
Odometer
58
Gear Display
59
Service Display
59
Distance Fuel Reserve
60
8 Preparing for Use 8
61
Advice on Preparing for First Use
61
Running in the Engine
63
Loading the Vehicle
64
9 Riding Instructions 9
67
Checks and Maintenance Measures When Preparing for Use
67
Starting the Vehicle
68
Starting off
70
Shifting, Riding
70
Easy Shift
76
Motorcycle Traction Control
77
Braking
78
Stopping, Parking
80
Transport
82
Refueling
83
10 Service Schedule
86
Additional Information
86
Required Work
86
Recommended Work
89
11 Tuning the Chassis
90
Fork/Shock Absorber
90
Adjusting the Compression Damping of the Fork
90
Adjusting the Rebound Damping of the Fork
92
Compression Damping of the Shock Absorber
93
Adjusting the Low-Speed Compression Damping of the Shock Absorber
94
Adjusting the High-Speed Compression Damping of the Shock Absorber
95
Adjusting the Rebound Damping of the Shock Absorber
97
Handlebar Position
98
Adjusting the Handlebar Position
99
12 Service Work on the Chassis
102
Raising the Motorcycle with a Lift Stand
102
Removing the Motorcycle from the Lift Stand
102
Raising the Motorcycle with the Rear Lifting Gear
103
Removing the Rear of the Motorcycle from the Wheel Stand
104
Lifting the Motorcycle with the Front Lifting Gear
105
Taking the Motorcycle off the Front Lifting Gear
106
Cleaning the Dust Boots of the Fork Legs
107
Removing the Fork Protector
109
Installing the Fork Protector
109
Bleeding the Fork Legs
110
Removing the Seat
111
Mounting the Seat
111
Removing the Tool Set
112
Storing Tool Set
113
Take off the Side Cover
114
Mounting the Side Cover
115
Removing Front Fender
115
Installing Front Fender
116
Removing the Air Filter
117
Installing the Air Filter
118
Checking the Chain for Dirt
119
Cleaning the Chain
120
Checking the Chain Tension
122
Adjusting the Chain Tension
124
Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide
126
Adjusting the Chain Guide
131
Adjusting the Basic Position of the Clutch Lever
132
Checking/Correcting the Fluid Level of the Hydraulic Clutch
133
13 Brake System
136
Anti-Lock Braking System (ABS)
136
Adjusting the Basic Position of the Hand Brake Lever
139
Checking the Brake Discs
140
Checking the Front Brake Fluid Level
141
Adding Front Brake Fluid
142
Checking the Front Brake Linings
145
Checking the Free Travel of Foot Brake Lever
146
Adjusting the Basic Position of the Foot Brake Lever
147
Checking the Rear Brake Fluid Level
149
Adding Rear Brake Fluid
150
Checking the Rear Brake Linings
152
14 Wheels, Tires
154
Removing the Front Wheel
154
Installing the Front Wheel
156
Removing the Rear Wheel
159
Installing the Rear Wheel
161
Checking the Rear Hub Damping Rubber Pieces
165
Checking the Tire Condition
167
Tubeless Tire System
170
Checking Tire Pressure
171
Checking Spoke Tension
172
Using Tire Repair Spray
174
15 Electrical System 15
175
Removing the 12-V Battery
175
Installing the 12-V Battery
177
Charging the 12-V Battery
179
Changing the Main Fuse
181
Changing the ABS Fuses
184
Changing the Fuses of Individual Electrical Power Consumers
186
Removing the Headlight Mask with the Headlight
189
Installing the Headlight Mask with the Headlight
190
Changing the Headlight Bulb
191
Changing the Parking Light Bulb
193
Checking the Headlight Setting
194
Adjusting the Headlight Range
195
ACC1 and ACC2
196
Diagnostics Connector
196
16 Cooling System 16
197
Checking the Antifreeze and Coolant Level
198
Checking the Coolant Level
200
Draining the Coolant
202
Filling/Bleeding the Cooling System
203
Changing the Coolant
206
17 Tuning the Engine
210
Changing the Riding Mode
210
Adjusting Traction Control
211
Checking the Basic Position of the Shift Lever
212
Adjusting the Basic Position of the Shift Lever
213
18 Service Work on the Engine
214
Changing the Fuel Screen
214
Checking the Engine Oil Level
216
Changing the Engine Oil and Oil Filter, Cleaning the Oil Screens
217
Adding Engine Oil
225
19 Cleaning, Care
228
Cleaning the Motorcycle
228
Checks and Maintenance Steps for Winter Operation
231
20 Storage 20
233
Preparing for Use after Storage
236
21 Troubleshooting 21
237
22 Technical Data 22
241
Engine
241
Engine Tightening Torques
243
Capacities
248
Engine Oil
248
Coolant
249
Fuel
249
Chassis
249
Electrical System
251
Tires
252
Fork
252
Shock Absorber
253
Chassis Tightening Torques
255
23 Substances
262
24 Auxiliary Substances 24
265
25 Standards 25
267
26 Index of Special Terms
268
27 List of Abbreviations 27
269
28 List of Symbols
270
Red Symbols
270
Yellow and Orange Symbols
270
Green and Blue Symbols
271
Index
272
5
Based on 1 rating
Ask a question
