Q3 MV-BC FOCALPOINT RE-POSITIONING
CANOPY LIGHT
Backward
Forward
ROTATE

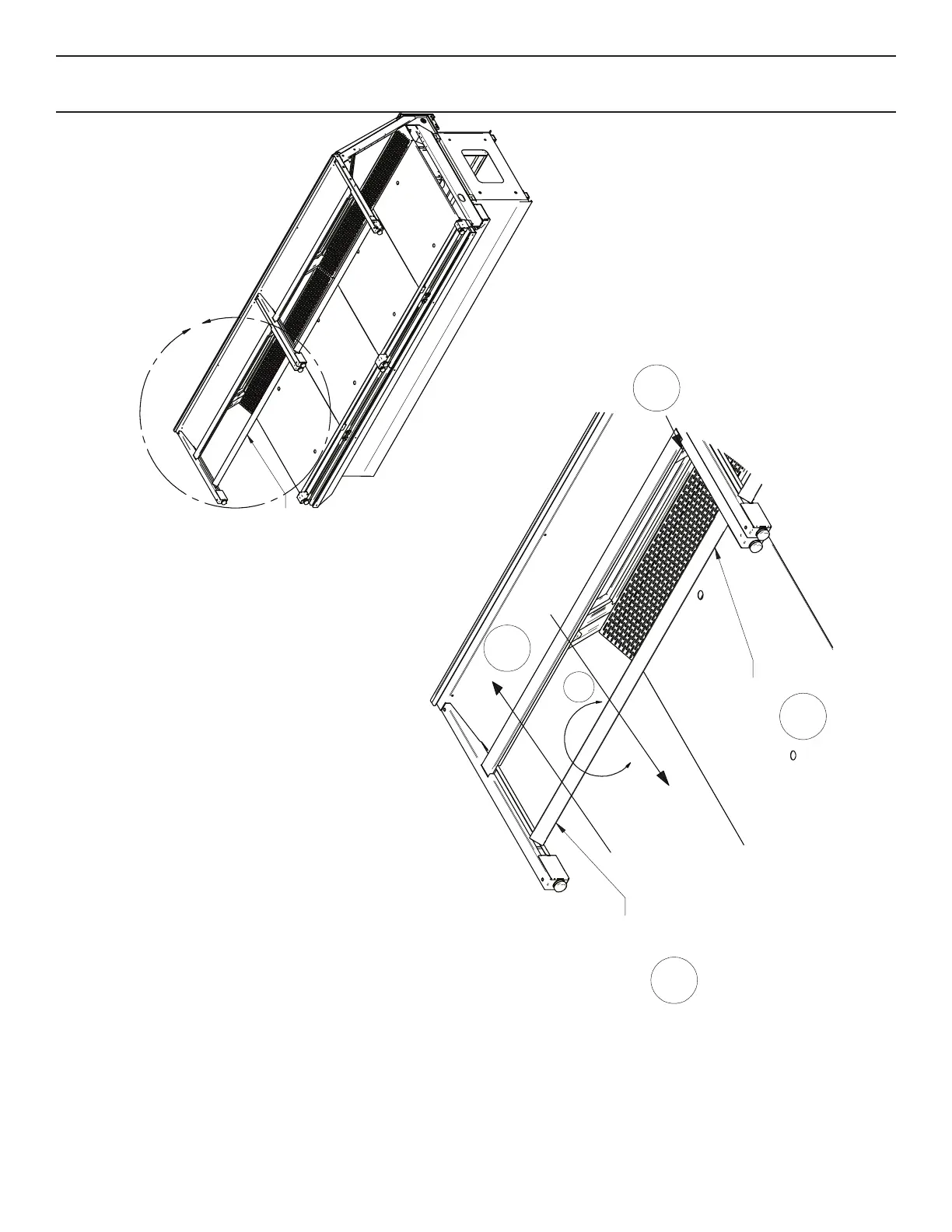

STEP 1: Hold canopy lightwith bothhands. Each hand should be as
close
to the end as posibl
e(shownbelow).
STEP 2: Pushcanopylight with equalforce forwardor
backward to desired location.
STEP 3: Rotate lightto desired aim for application. STEP 4: Tuck anyexcess wiring throughthe wiring chase.
I
DETAIL I
Left hand hold location
Righthand
hold location
1
1
NOTE: FOCAL POINT PATENT PENDING
2
3
4
