HUSSMANN_GDF_1.1 SHEET SIZE D
MATERIAL - N/A
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
DRAWN BY -CRAIG BOOREY
APPROVED BY - CRAIG BOOREY
TOLERANCES ARE:
DECIMALS .XX
u
.03, .XXX
u
.010
ANGLES
u
2
v
DATE DRAWN - 2-1-18
ECN-CAP-0011187
REVIEWED BY -CRAIG BOOREY
REF -
3055096
DIAGRAM-Q3-MV-BC-8R
W/AK-CC-210 FOR /MISTING
SYSTEM
REV ECN DATE REVISION DESCRIPTION REV BY CHKD BY APPR BY
A ECN-CAP-0011187 2018/02/01 RELEASED TO PRODUCTION CB CB CB
B ECN-CAP-0011188 2018/02/02 REMOVED AIR SWEEP HEATER CB CB CB
C ECN-CAP-0011190 2018/02/09 ADDED FIELD INSTRUCTIONS CB CB CB
D ECN-CAP-0011191 2018/02/14 ADDED ADDITIONAL FIELD INSTRUCTIONS CB CB CB
REVISION HISTORY
NOTES:
CASE MUST BE GROUNDED
WHEN PASSING WIRES THROUGH METAL HOLES A GROMMET MUST BE USED
D
SHEET 3 OF 3
R
E
T
U
R
N
A
IR
H
E
A
T
E
R
F
O
R
8
'
S
E
C
O
N
D
A
R
Y
C
A
S
E
BLACK #14
WHITE #14
SUCTION STOP
SOLENOID
FOR 8' SECONDARY CASE
L1
L1
N
N
BUNDLE IN RACEWAY
AND LABEL SECONDARY
CASE SUCTION
SOLENOID VALVE
BUNDLE IN RACEWAY
AND LABEL SECONDARY
CASE RETURN AIR
HEATER
8' SECONDARY CASE
L1
L1
N
N
LABEL RETURN AIR
HEATER TO TIE INTO 8'
SECONDARY CASE
8' PRIMARY CASE
LABEL SUCTION STOP
SOLENOID TO TIE INTO 8'
SECONDARY CASE
LEADS TERMINATED IN
RACEWAY FOR BOTH
CASES TO BE FIELD
CONNECTED
FROM PRIMARY CASE
RETURN AIR HEATER
FROM PRIMARY CASE
SUCTION STOP SOLENOID

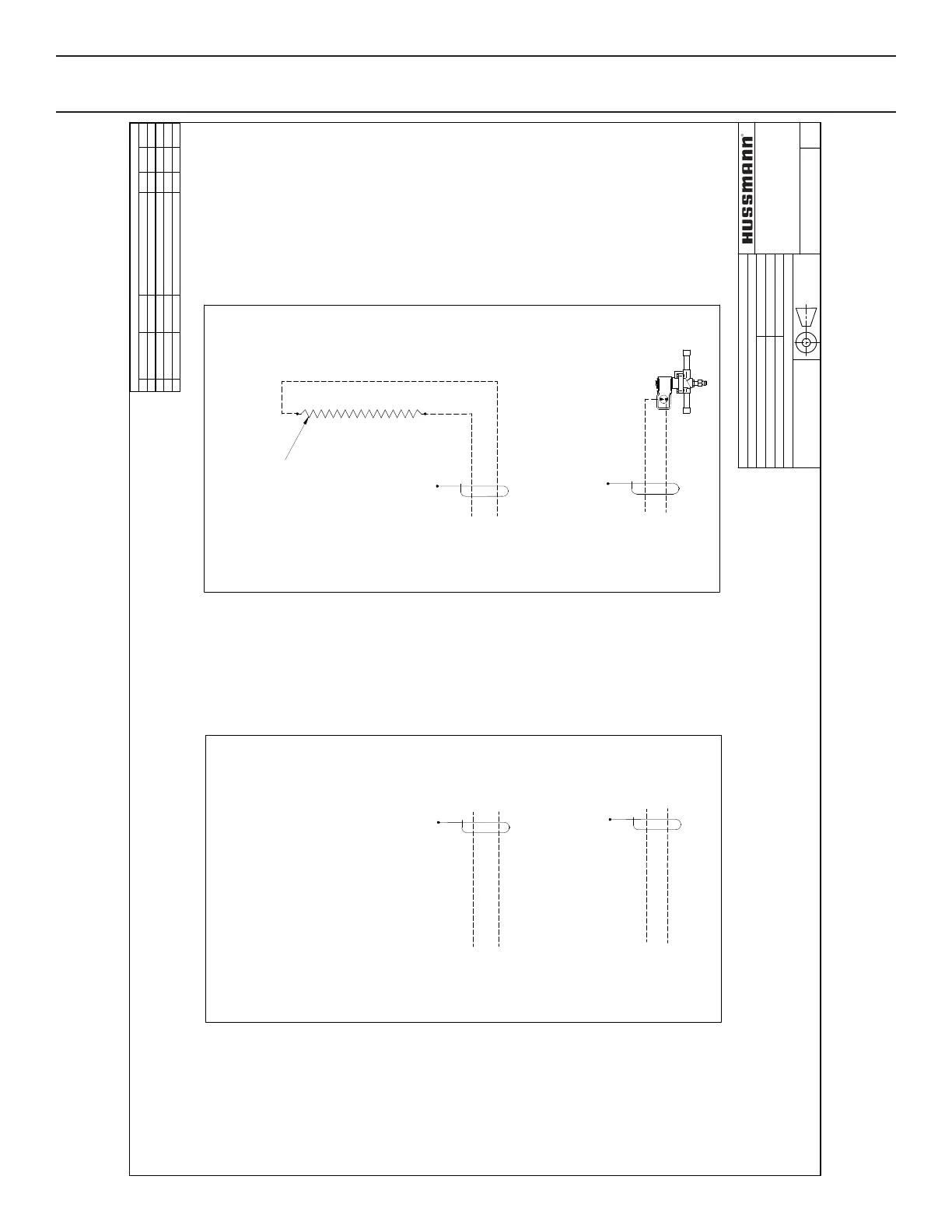

Electrical Wiring Diagram (Cont’d)
