SECTION 3
Pr.6.1.5.1
Dish h
Pr.6.1.5.2
Radius R

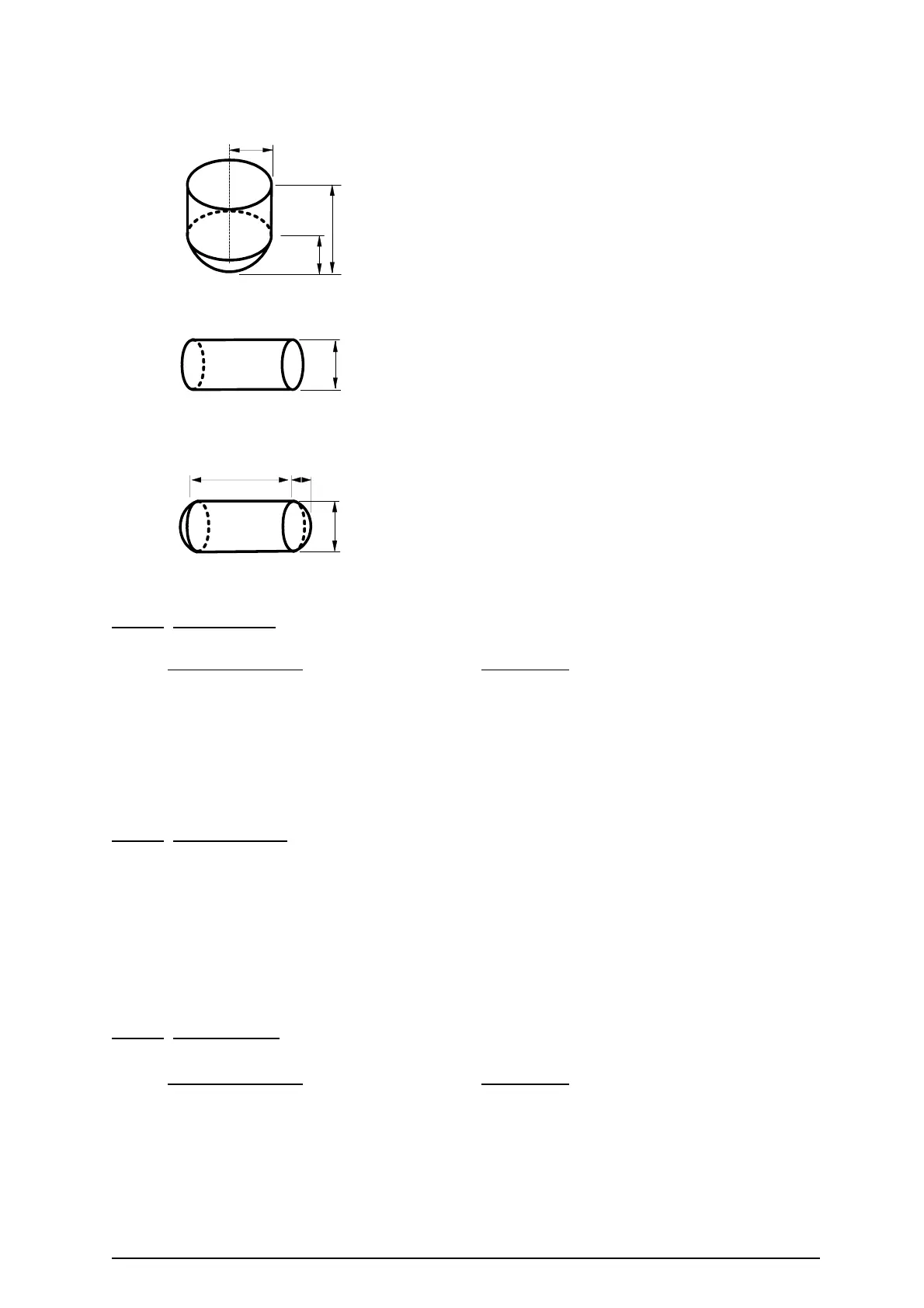

6.1.5 VERTICAL DISHED BOTTOM.
Pr.3.0
Pr 6.1.5.1 Dish h (D = 0.00)
Enter dish h in metres.
Pr 6.1.5.2 Radius R (D = 0.00)
Enter radius R in metres.
6.1.6 HORIZONTAL CYLINDER FLAT ENDS.
Pr.3.0
No additional parameters
Pr 6.1.7.1 Dish L (D = 0.00)
Enter dish L in metres.
Pr 6.1.7.2 Cylndr R (D = 0.00)
Enter cylinder R in metres.
6.1.7 HORIZONTAL CYLINDER DISHED ENDS.
Pr.3.0
Cylndr L
Dish L
Pr.6.1.7.1
Pr.6.1.7.2
Pr. 6.2
DisplayUnits Display Units (D = %)
Options displayed
Description
6.2.1 Units Litres Units label displayed in Litres
6.2.2 Units Gallons Units label displayed in Gallons
6.2.3 Units Tons Units label displayed in Tons
6.2.4 Units Tonnes Units label displayed in Tonnes
6.2.5 Units Kg Units label displayed in Kg
6.2.6 Units m3 Units label displayed in m3
6.2.7 Units % Units label displayed in %
Pr. 6.3 MaxDsp x 100 Maximum display x 100 (D = 1.0)
Enter - full scale display ÷ 100
e.g. if 100% = 2000 litres and display required in litres then set Pr. 6.3 to 2000 ÷ 100
= 20.
This parameter should not be adjusted in conjunction with 6.2.7 Units % as it will
invalidate the % reading.
Pr. 6.4
Disp. Format Display Format (D = Contents)
Options displayed Description
6.4.1 Display Contents Display contents only
6.4.2 Display Ullage Display ullage only
6.4.3 Display Ullage &Contents Display both ullage and contents
Ref: MINIFLEX LR MANUAL Rev. 0 19
