ST16135-00E 9
4 Transportation and Handling
4 Transportation and Handling
4.1 Introduction
Lifting and transportation must only be carried out by authorised
persons, fully trained in the use of the equipment employed.
Ensure that all means of transportation and/or lifting equipment
are adequate for purpose and are rated to exceed the full load of
the unit.
4.2 Lifting and Handling (Fig. 4.1 and Fig. 4.2)
A fork lift or pallet truck are the most suitable means of
transportation. Pay particular attention to ensure stability to
prevent the unit tilting over.

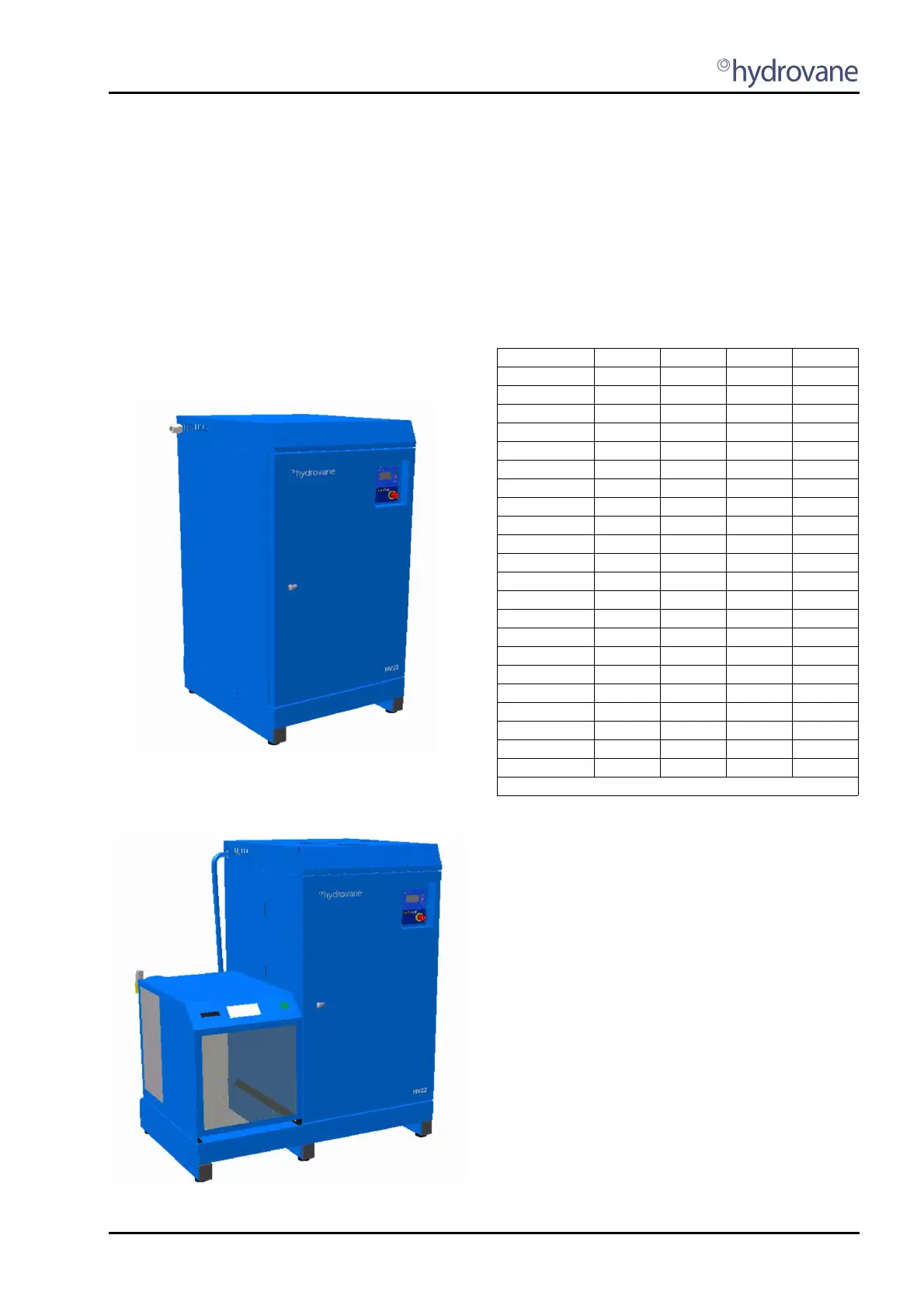

Fig. 4.1 - ACE HV11-22 Vertical Compressor
Lift the hypac or compressor and place it in the desired location.
Fig. 4.2 - ACED HV11-22 Hypac Compressor
Damage to mountings may occur if you attempt to slide the
compressor into position.
Take care when moving units, some models have support rails for
motor filters positioned just inside the front base members.
4.3 Model Weights
Table 4.1 shows weights for the ACE HV04-HV45 compressors
and the hypac range.
Table 4.1 - Model Weights
Model ACE ACER ACED AERD
HV04 181 306 223 348
HV05 186 311 229 354
HV07 197 322 240 365
HV07RS 204 329 247 372
HV11 384 521 446 586
HV15 397 534 459 599
HV18 481 618 543 683
HV22 494 631 556 696
HV11RS 393 528 453 593
HV15RS 406 541 466 606
HV18RS 507 644 569 709
HV22RS 520 657 582 722
HV30 857 - - -
HV37 911 - - -
HV45 940 - - -
HV30RS 909 - - -
HV37RS 963 - - -
HV45RS 992 - - -
All weights in kilograms
