Hypertherm HyPerformance HPR400XD Auto Gas User Manual

Parts List

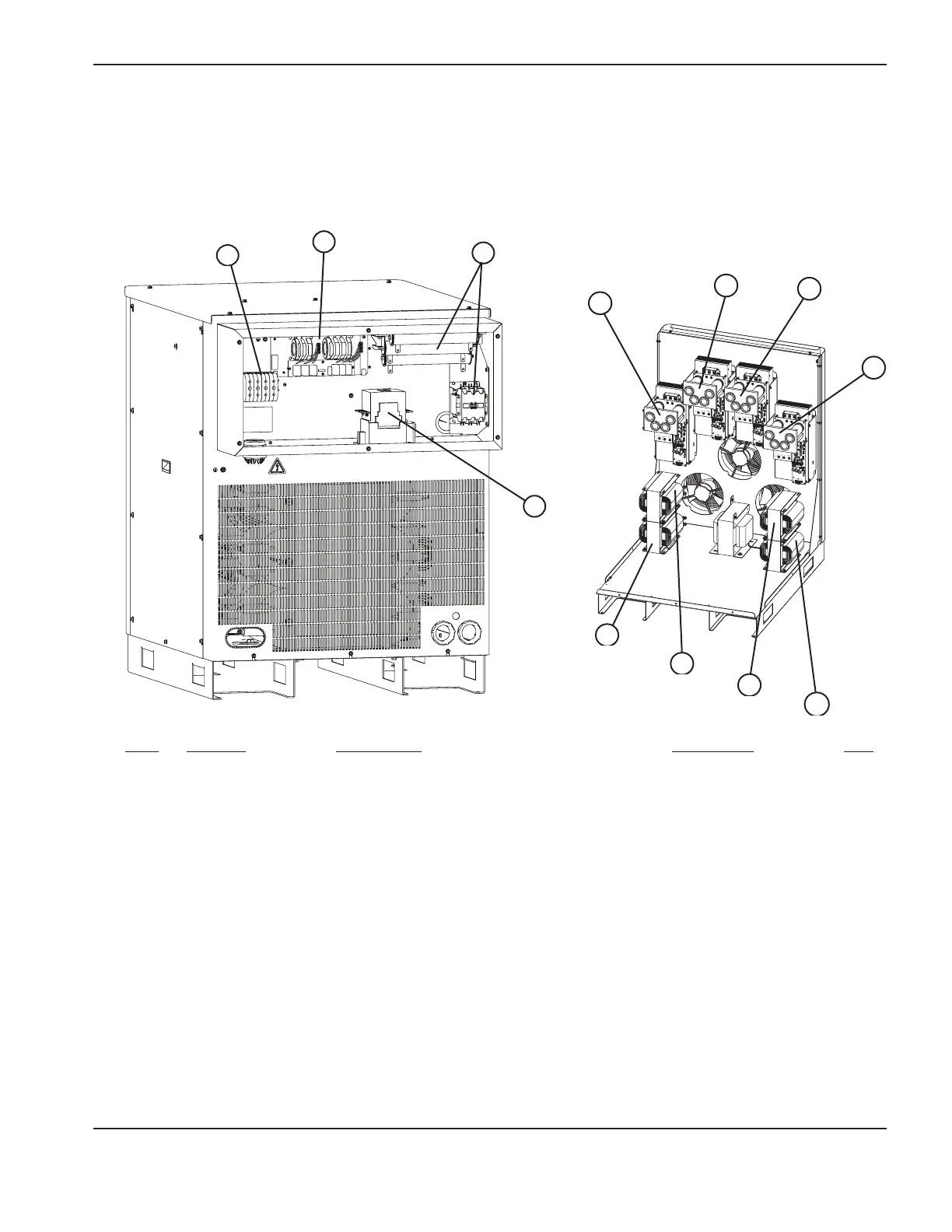

HPR400XD Auto Gas – 806160 6-3
Power supply
Part
Item Number Description Designator Qty.
1 229214* Terminal block: Input power TB1 1
229033** Terminal block: Input power TB1 1
2 229195 EMI filter (400 volt power supply only) 1
3 428064 Kit: HPR400/800 inrush circuit 1
4a 129792 Chopper assembly CHA 1
4b 129792 Chopper assembly CHB 1
4c 129792 Chopper assembly CHC 1
4d 129792 Chopper assembly CHD 1
127039 6” fan: 230 CFM, 115 VAC 50-60 HZ 8
5a 014080 Inductor: 100 amp, 4 mH L1 1
5b 014080 Inductor: 100 amp, 4 mH L2 1
5c 014080 Inductor: 100 amp, 4 mH L3 1
5d 014080 Inductor: 100 amp, 4 mH L4 1
6 003218* Contactor CON1 1
003233** Contactor CON1 1
* 200, 220, and 240 volt power supplies
** 380, 400, 440, 480, and 600 volt power supplies
1
3
2
4a
4b
4c
5a
5d
5c
5b
6
4d
