Hypertherm HyPerformance HPR400XD Auto Gas User Manual

Parts List

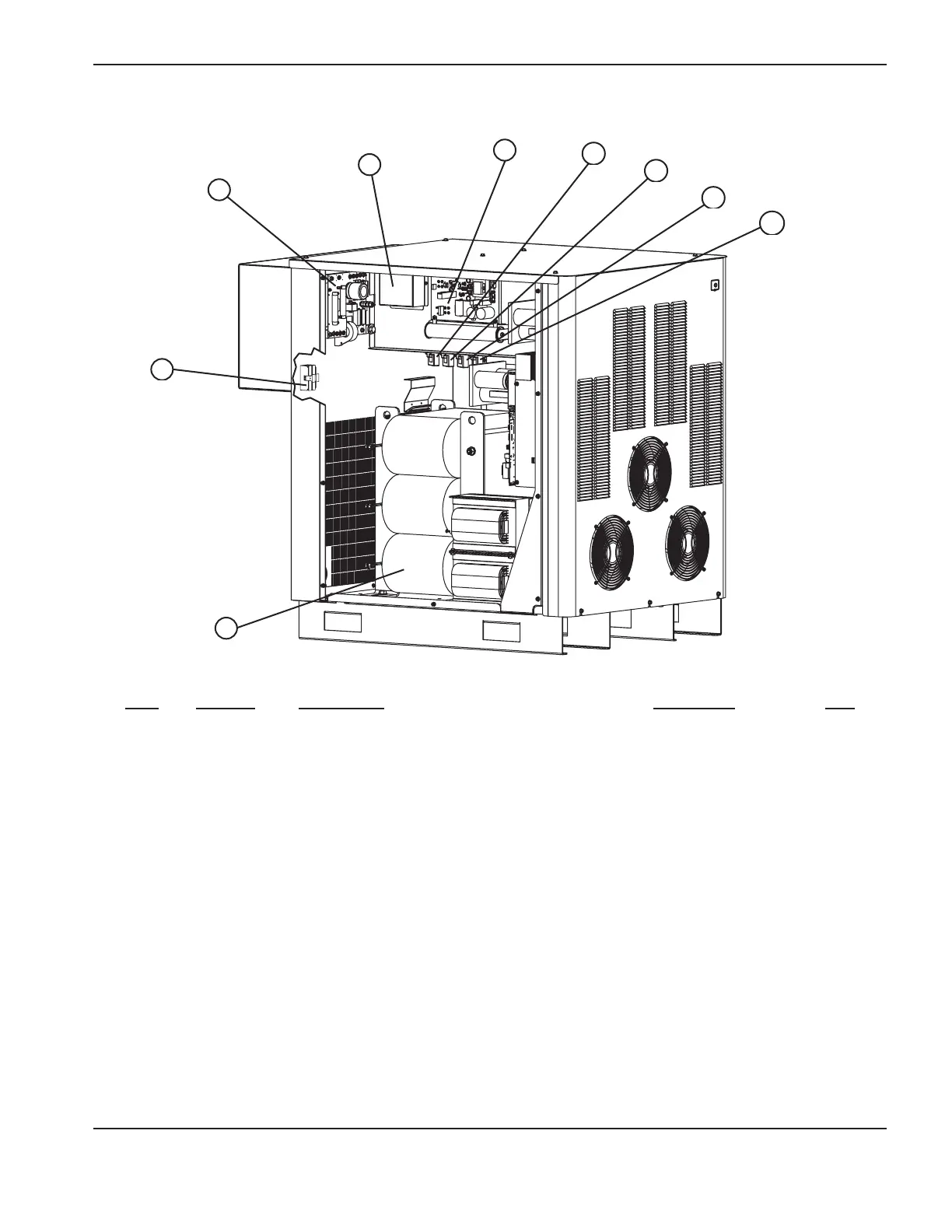

6-4 HPR400XD Auto Gas – 806160
Power supply
Part
Item Number Description Designator Qty.
1 108847* Fuse: 7.5 amp, 600 volt, high surge F1, F2 2
008709** Fuse: 20 amp, 500 volt, slow blow F1, F2 2
2 229213 PCB: I/O 1
3 003149*** Relay: Pilot arc, 120 VAC CR1 1
4 229238 Start circuit assembly PCB1 1
5a 109004 Current sensor: Hall 100 amp, 4 volt CS1 1
5b 109004 Current sensor: Hall 100 amp, 4 volt CS2 1
5c 109004 Current sensor: Hall 100 amp, 4 volt CS3 1
5d 109004 Current sensor: Hall 100 amp, 4 volt CS4 1
6 014321 200 volt main transformer: 80KW, 3 ph, 50 HZ T2 1
014322 220 volt main transformer: 80KW, 3 ph, 50 HZ 1
014323 240 volt main transformer: 80KW, 3 ph, 60 HZ 1
014324 380 volt main transformer: 80KW, 3 ph, 50 HZ 1
014325 400 volt main transformer: 80KW, 3 ph, 50 HZ 1
014326 440 volt main transformer: 80KW, 3 ph, 50 HZ 1
014327 480 volt main transformer: 80KW, 3 ph, 60 HZ 1
014328 600 volt main transformer: 80KW, 3 ph, 60 HZ 1
228309 Kit: Thermistor replacement for main transformer 1
* 380, 400, 440, 480, and 600 volt power supplies
** 200, 220, and 240 volt power supplies
*** CR1 is located under the cover
3
4
1
2
5b
5d
5a
5c
6
