Hypertherm Powermax 30 User Manual

PARTS
powermax30 Service Manual 4-3
1

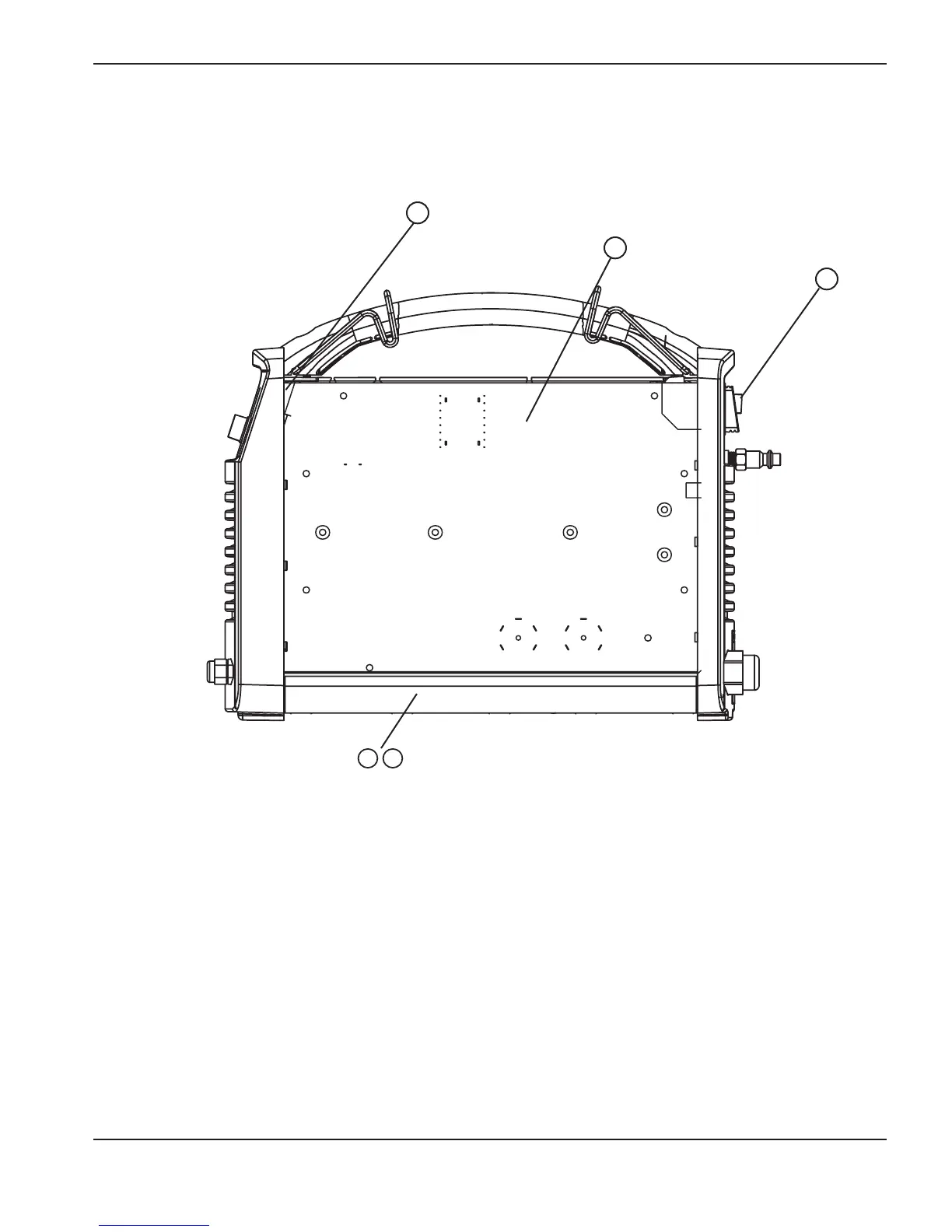

Interior, power board side
Part
Item number Description Designator Qty.
1 228093 Kit: Control board PCB1 1
2 005605 Power rocker switch 1
3 228094 Kit: Power board, CSA PCB2 1
228102 Kit: Power board, CE PCB2 1
4 228139 Kit: Base 1
5 228105 Kit: Magnetic mounting base 1
228104 Kit: Powermax30 insulator 1
228103 Kit: Powermax30 wire group 1
1
2
3
4 5

Hypertherm Powermax 30 Specifications

General

Gas Pressure	5.2 bar (75 psi)
Torch	Hand Torch
Input Voltage	120-240 V
Input Phase	1
Current Output	20-30 A
Cutting Thickness	10 mm (3/8 inch)
Max Severance Thickness	16 mm (5/8")
Max Clean Cut Thickness	10 mm (3/8 inch)
Weight	9.5 kg (21 lbs)
Gas Type	Air
Dimensions	356 mm D x 168 mm W x 305 mm H (14" D x 6.6" W x 12" H)
