Hypertherm Powermax 30 User Manual

PARTS
4-4 powermax30 Service Manual

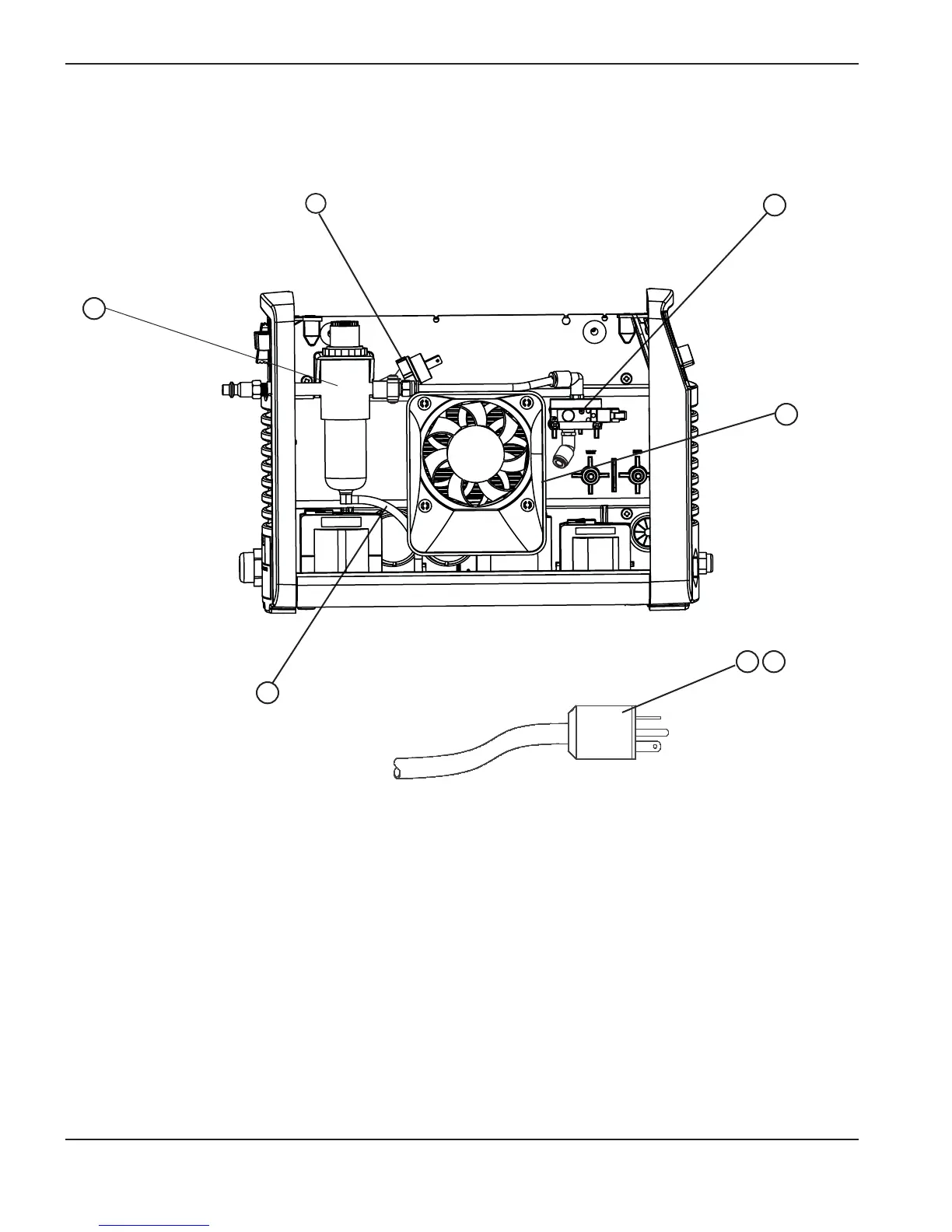

Interior, fan side
Part
Item number Description Designator Qty.
1 005112 Kit: Pressure sensor 1
2 228108 Kit: Solenoid valve V1 1
3 228095 Kit: Hoses 2
4 228142 Kit: CSA power cord, 1-phase, 8 ft 1
5 228140 Kit: CE power cord, 1-phase, 2.5 m
6 228106 Kit: Filter regulator 1
011106 Air filter element 1
7 228107 Kit: Fan M1 1
1
2
3
5
6
4
7

Hypertherm Powermax 30 Specifications

General

Gas Pressure	5.2 bar (75 psi)
Torch	Hand Torch
Input Voltage	120-240 V
Input Phase	1
Current Output	20-30 A
Cutting Thickness	10 mm (3/8 inch)
Max Severance Thickness	16 mm (5/8")
Max Clean Cut Thickness	10 mm (3/8 inch)
Weight	9.5 kg (21 lbs)
Gas Type	Air
Dimensions	356 mm D x 168 mm W x 305 mm H (14" D x 6.6" W x 12" H)
