TECHNICAL QUESTIONS
If you are unable to fix the problem with your Powermax350 by following this basic troubleshooting
guide or if you need further assistance:
1. Call your distributor. He/she will be able to help you, or refer you to an authorized Hypertherm
repair facility.
2. Call Hypertherm's Technical Service group at 1 800 643 9878 or the nearest Hypertherm office,
listed in the front of this manual.
3. See the Powermax350 Service Manual IM-292 (802920) for wiring diagrams, higher level
troubleshooting and more parts list information.
PARTS
Powermax350 Hand Systems
070052 115/230 VAC, 1 Phase, 60 Hz 15 ft (4.5 M)
070053 115/230 VAC, 1 Phase, 60 Hz 25 ft (7.6 M)
070055 CE 115/230 VAC, 1 Phase, 50 Hz 15 ft (4.5 M)
070056 CE 115/230 VAC, 1 Phase, 50 Hz 25 ft (7.6 M)
Consumable Parts
The consumable parts are found in a box, located in the left side of the power supply cover.
Part Number Description
020239................................................................Ring, Swirl
020382.................................................Electrode, Extended
120504............................................ Nozzle, Extended, 25A
020218......................................................... Cap, Retaining
Swirl Ring
020239
Extended
Electrode
020382
Extended
Nozzle
120504
Retaining Cap
020218

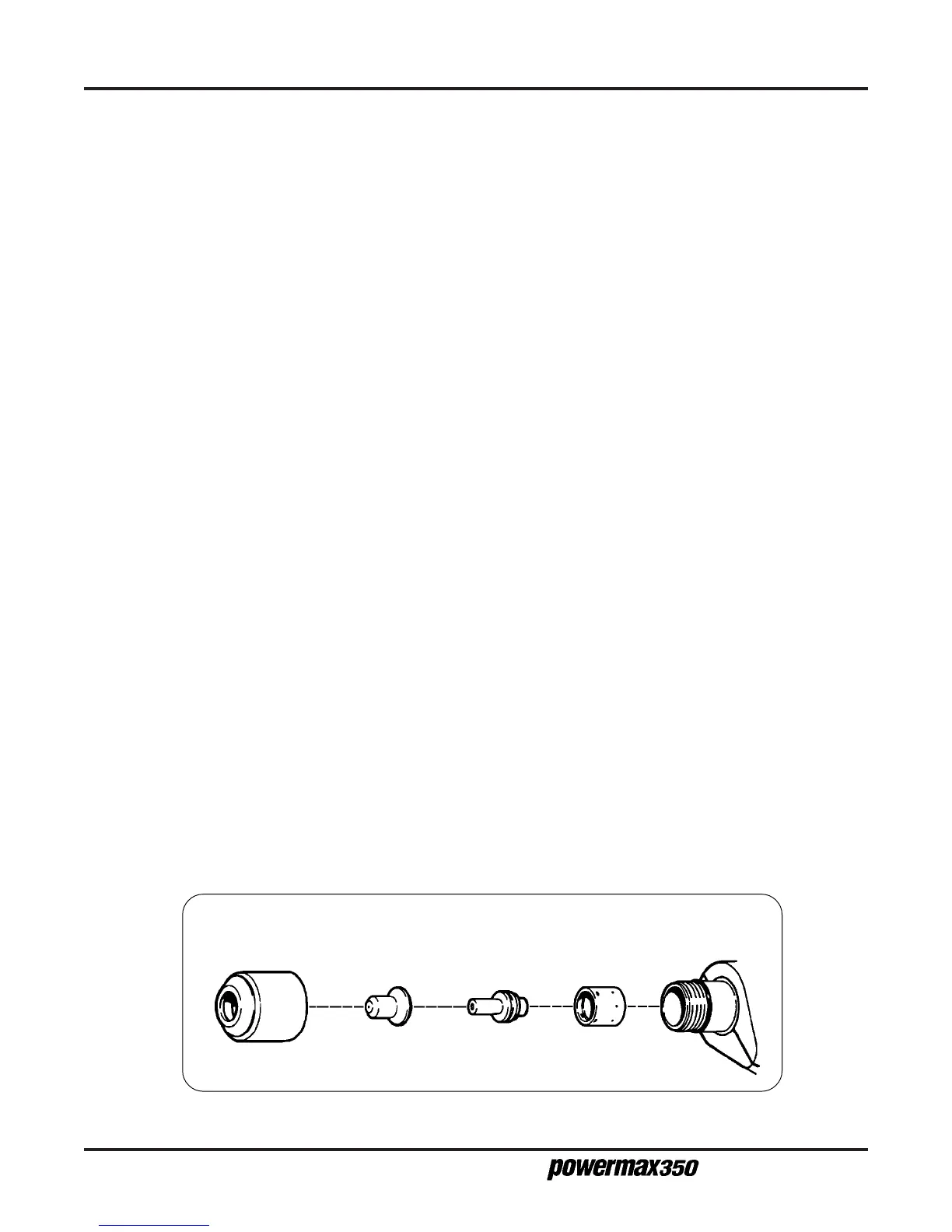

Figure 5-3 Consumable Parts
5-98
To Next Page
