Hypertherm powermax1000 Service Manual

PARTS – POWER SUPPLY
4-2 powermax1000 Service Manual
1

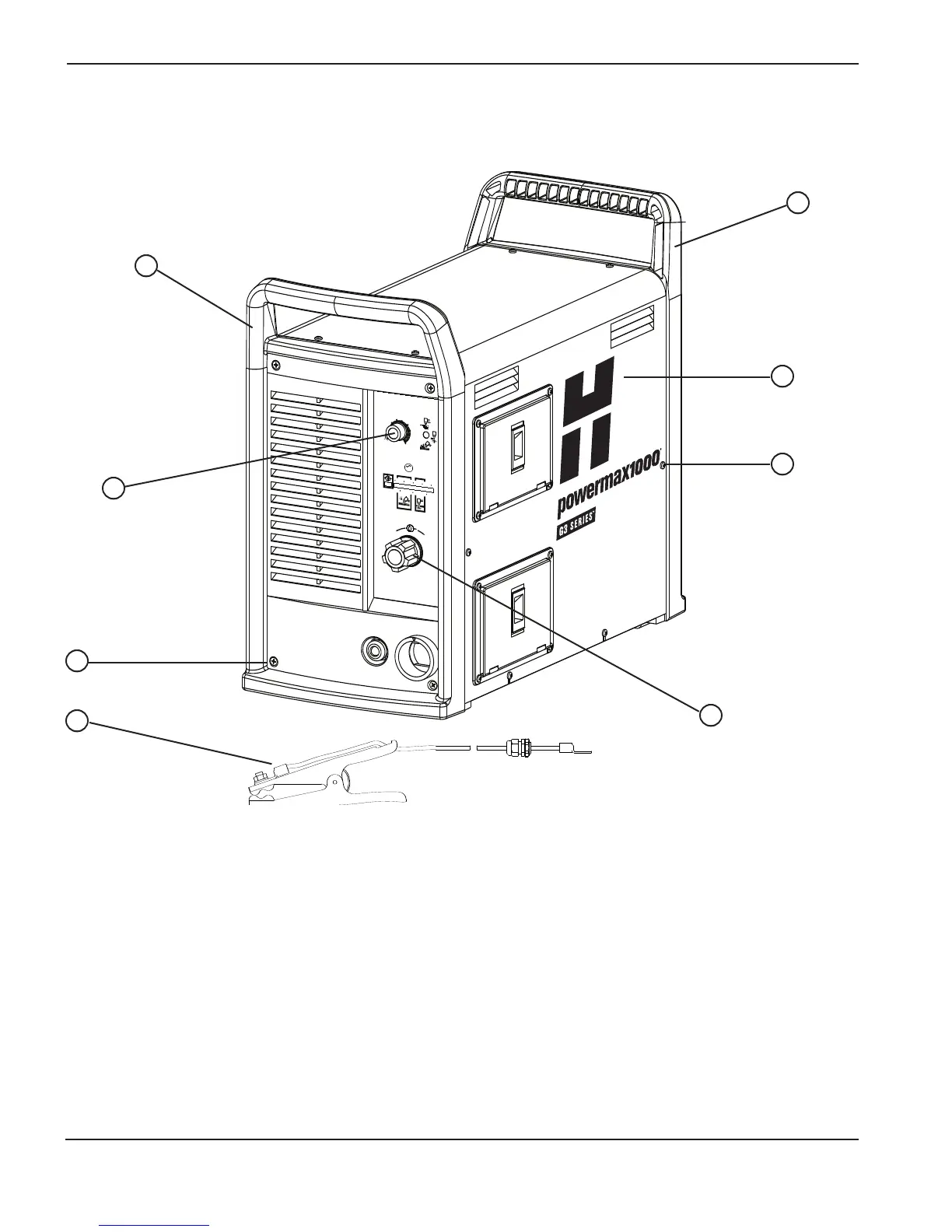

Exterior
Part
Item number Description Qty.
128686 Kit: Labels, domestic 1
128685 Kit: Labels, CE 1
1 128689 Kit: Front panel, domestic 1
128687
Kit: Front panel, CE 1
2 008965 Current adjustment knob 1
3 128630 Kit: End panel screws 8
4
123645 Ground clamp 1
5 011096 Regulator knob 1
6 128629 Kit: Cover screws 12
7 128690 Kit: Power supply cover with labels, domestic 1
128688 Kit: Power supply cover with labels, CE 1
8 128973 Kit: Rear panel 1
6.
0
BAR
5.
0
4.
0
PSI
80
70
50
60
6
0
4
0
A
MP
S
8
0
2
5
AC
+
_
1
8
7
6
5
2
3
4
