Hypertherm powermax1000

PARTS –_ POWER SUPPLY
powermax1000 Service Manual 4-5
1

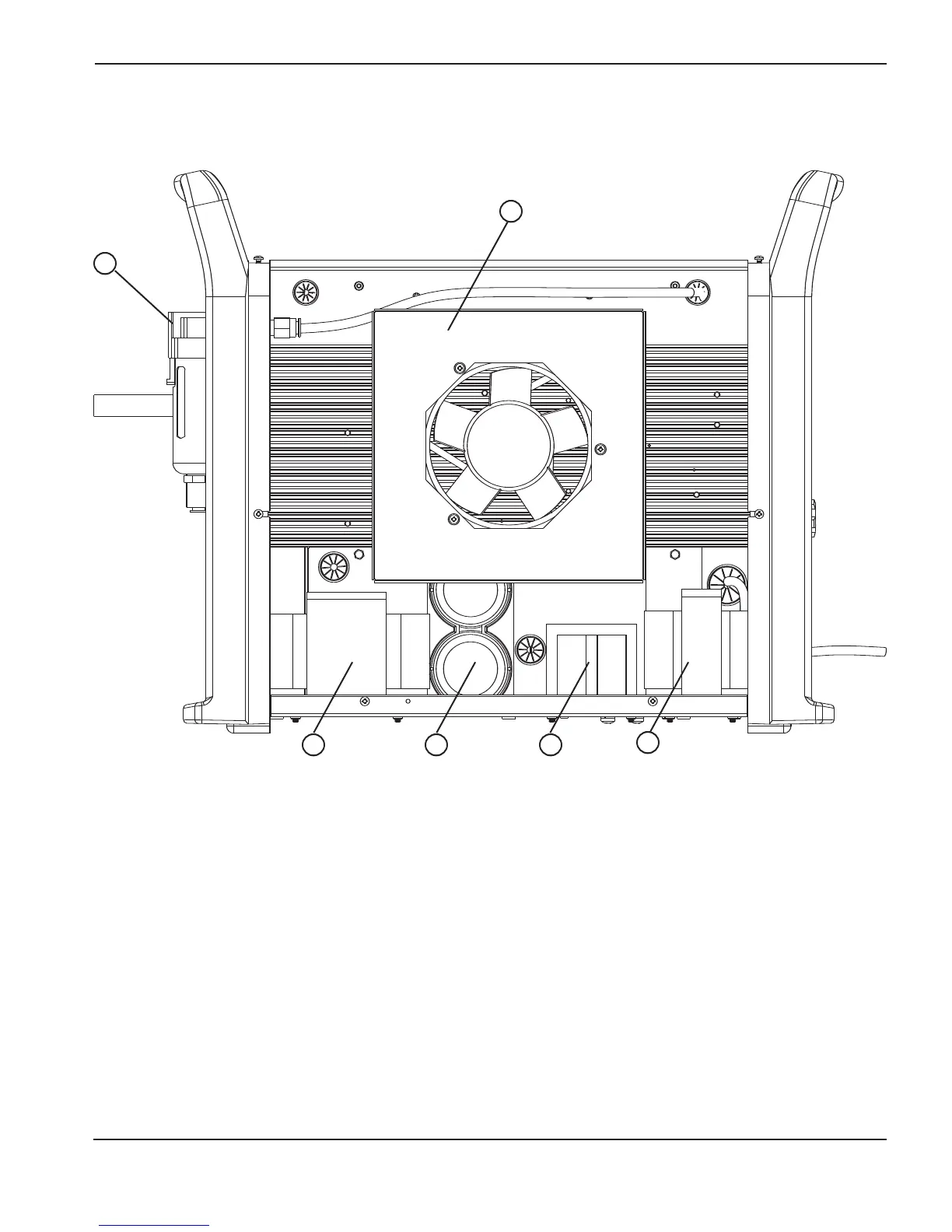

Interior fan side
Part
Item number Description Designator Qty.
1 128627 Kit: Filter 1
011093 Air filter element 1
011094 O-ring, NAF3000 filter 1
011105 O-ring, AF30 filter 1
2 128707 Kit: Fan M1 1
3 128693 Kit: Inductor, input choke L2 1
4 128691 Kit: Capacitor C94, C98 2
5 128692 Kit: Power transformer T2 1
6 128694 Kit: Inductor, output choke L1 1
1
2
6
5
3
4
