SETUP
0
3-10 powermax1000 Operator Manual

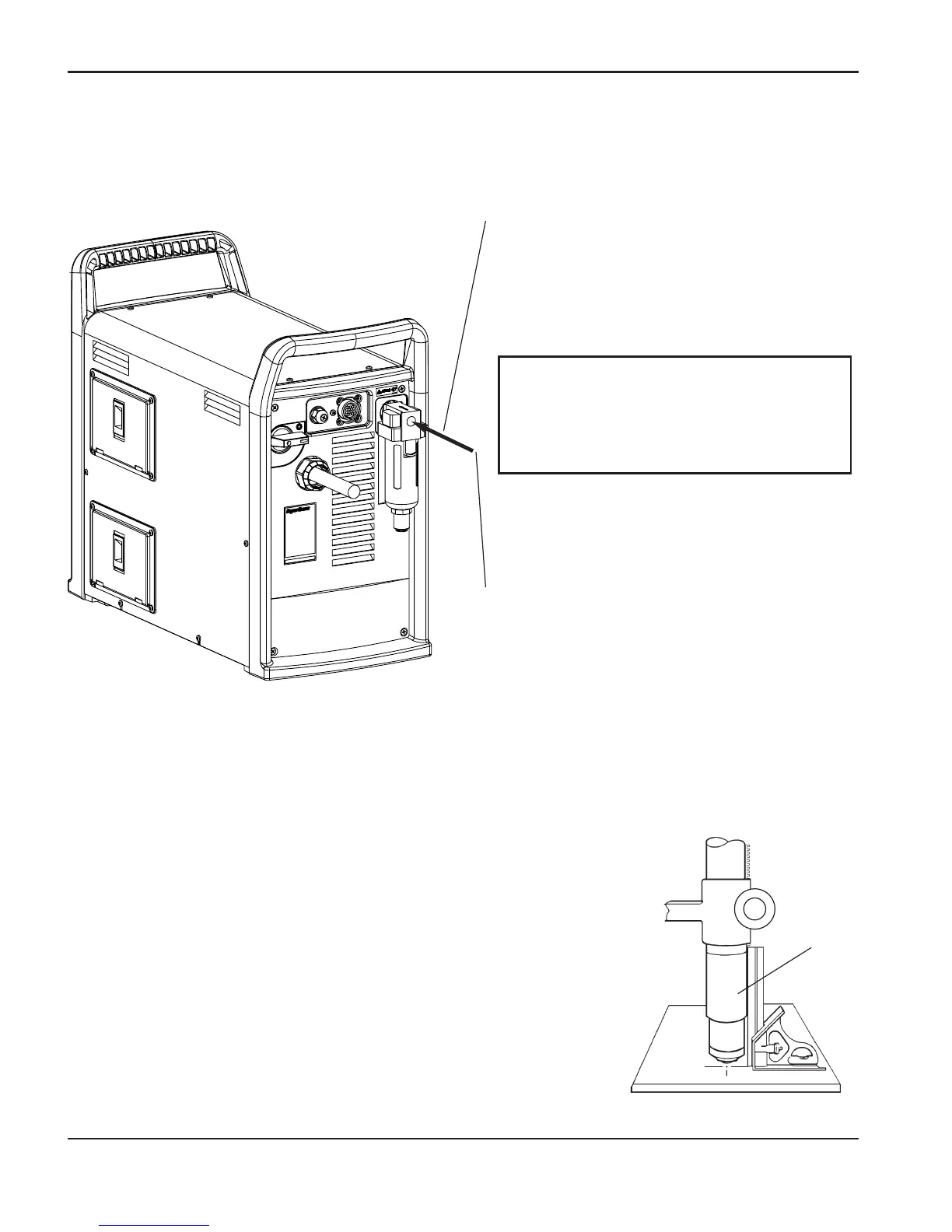

T60M Torch Alignment
Mount the machine torch perpendicular to the workpiece in order
to get a vertical cut. Use a square to align the torch at 0° and 90°.
Gas Supply Installation
Connect the air hose as follows:
1. Air fitting
• For standard model: Install 1/4 NPT
gas fitting on to air filter inlet. CE model
provides G1/4 adapter, in CE kit. Use
liquid pipe sealant on threads.
• Nipple/Adapter is found in the
consumables box, located on the left side
of the power supply cover.
2. Air hose
• Use an inert gas hose with a 3/8 inch
(9.5 mm) internal diameter. Connect
it to the gas fitting installed in step 1.
Adjust the air pressure according to the
procedure in Operation section.
Torch
CAUTION: Never use Teflon tape when
installing the nipple or adapters. Bits of
tape can break off and enter the air line
and harm the pressure regulator,
pressure switch and valve.
0°
90°
To Next Page
