SETUP
0
powermax1000 Operator Manual 3-11

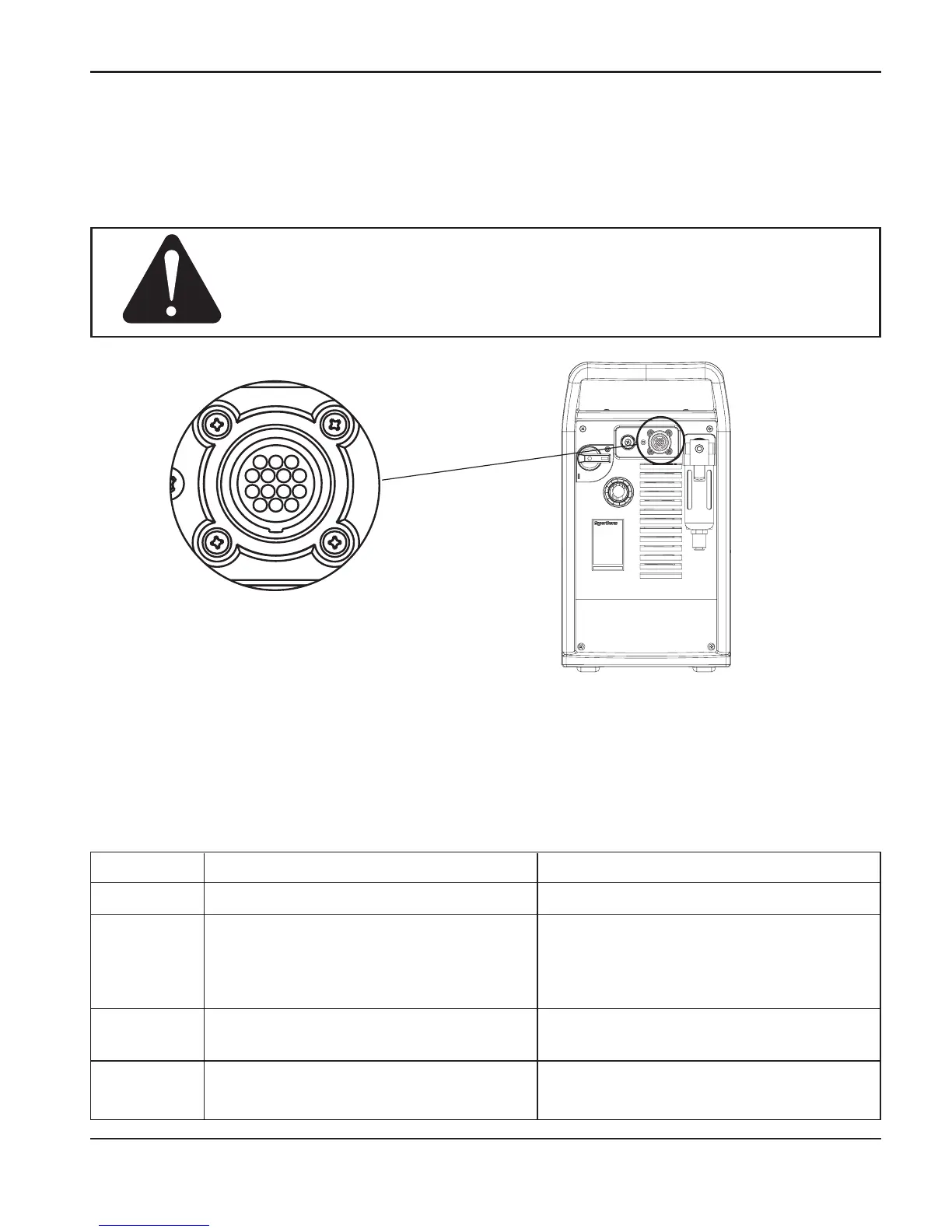

Machine Interface Connection
Signals for arc transfer and start are available through the machine interface connection (see figure
above), on the rear of the power supply. Plug the machine interface cable (Part. No. 023206) into the
connector on the rear panel. See table below to connect the machine interface cable to the cutting
machine
Signal Start (start plasma) XFER (start machine motion)
Type: Input Output
Notes: Normally open. 18VDC open circuit Normally open. Dry contact closure when
voltage at START terminals. arc transfers. 120VAC/1A maximum at
Requires dry contact closure to activate. machine interface relay or switching device
(supplied by customer).
Rear panel
3, 4 12, 14
sockets
Cable wires Green, Black Red, Black
of 023206
ON/OFF Pendant Connection
Inputs for arc start, with machine torch T60M, are available through the machine interface connection on
the rear of the power supply. Plug the Hypertherm remote pendant (see Parts List for part numbers) into
the connector on the rear panel.
WARNING
THE ON/OFF REMOTE PENDANT WILL NOT OPERATE
WHEN A HAND TORCH IS INSTALLED.
