Hypertherm powermax1250 Service Manual

4
MAINTENANCE
3-10 powermax1250 Service Manual
C
aution: Failure to isolate the IGBT may result in false readings and/or damage
to the IGBT tester.

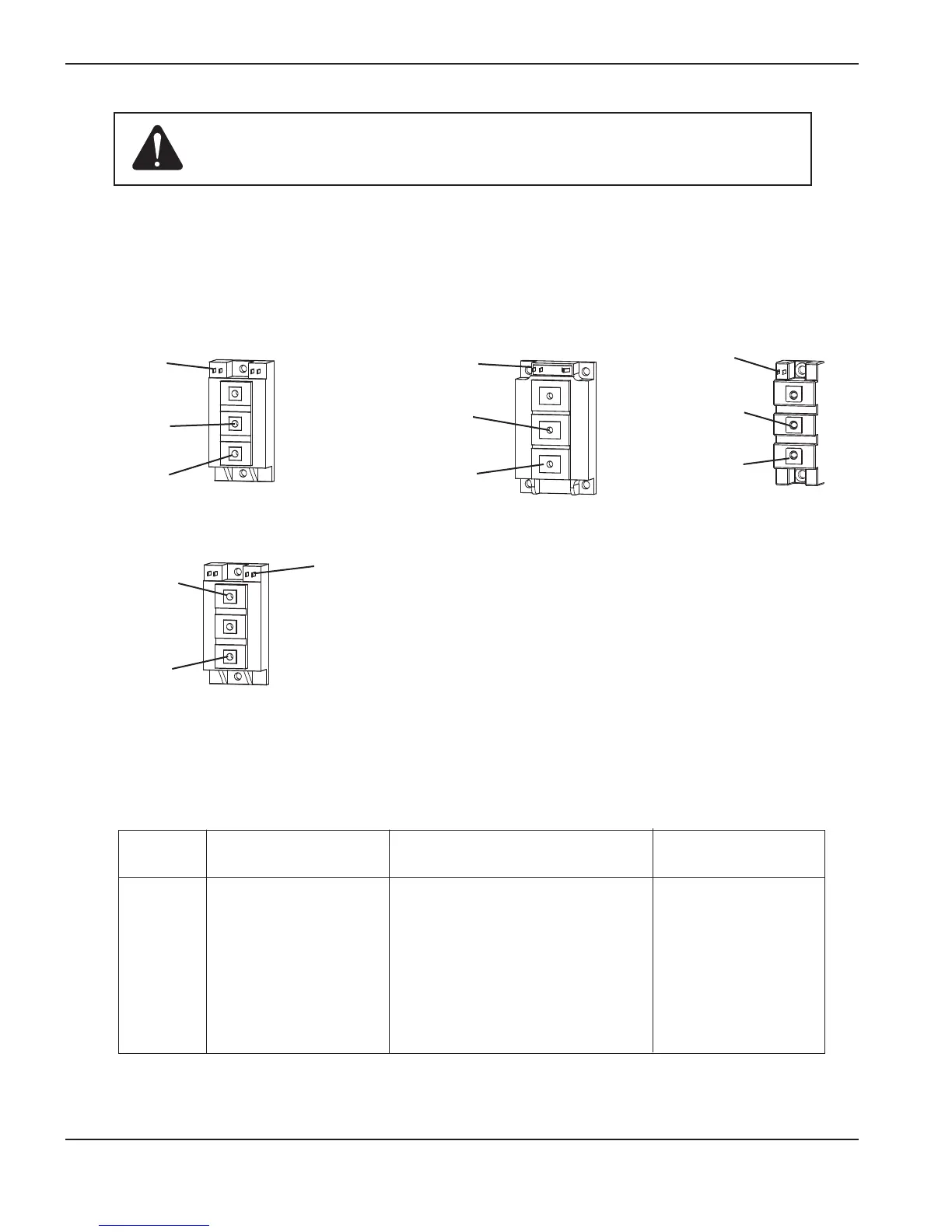

The illustrations below depict three common configurations of an IGBT. Each connection on the IGBT will be
labeled with an abbreviation. They may be labeled as C, E, G or 1, 2, 3 with a schematic that shows numbers and
pin functions.
Yellow lead
Gate 2 (G2)
Black lead
Emitter 2 (E2)
Red lead
Collector 2, (C2)
IGBT, Inverter
Test 1
Yellow lead
Gate (G)
Black lead
Emitter (E)
Red lead
Collector (C)
IGBT, PFC
Yellow lead
Gate (G)
Red lead
Collector (C)
Black lead
Emitter (E)
IGBT, Pilot arc
IGBT device test using the Hypertherm tester
Using the Hypertherm IGBT
tester, press and hold the switch in the desired position to perform each test described
in the following table.
Switch
LED
position Fail Pass Battery This may mean Corrective action
Left X – – IGBT is short-circuited Replace IGBT
Left – X – IGBT passed the short-circuit test None
Left – – X Battery below 8V Replace battery
Left – – – Dead battery Replace battery
Right X – – IGBT is open Replace IGBT
Right – X – IGBT passed the open test None
Right – – X Battery below 8V Replace battery
Right – – – Dead battery Replace battery
IGBT, Inverter
Test 2
Yellow lead
Gate 1 (G1)
Red lead
Collector 1, (C1)
Black lead
Emitter 1 (E1)
