Hypertherm powermax1250 - Interior Fan Side

PARTS – POWER SUPPLY
3
powermax1250 Service Manual 4-5

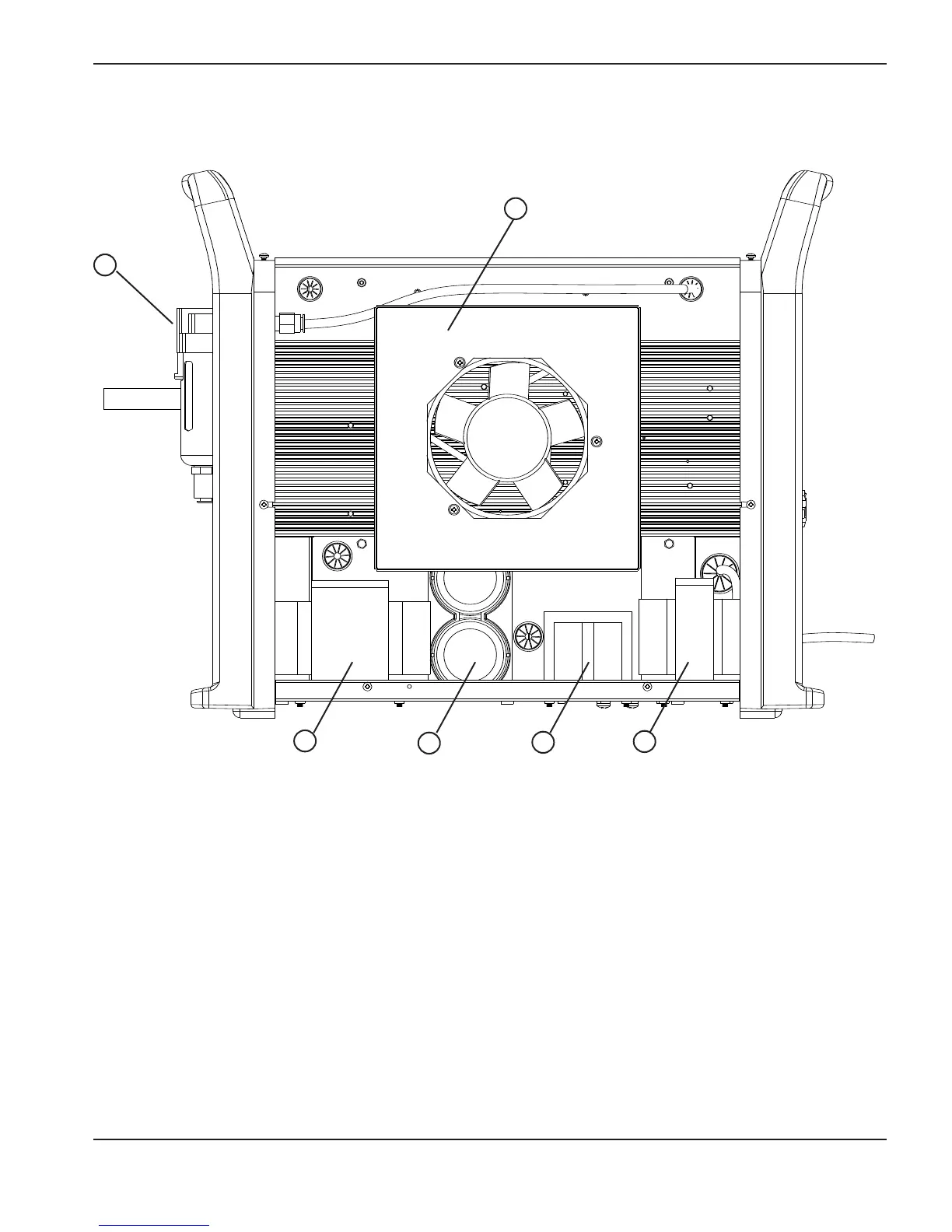

Interior fan side
Part
Item number Description Designator Qty.
1 128627 Kit: Filter 1
011093 Air filter element 1
011094 O-ring, NAF3000 filter 1
011105 O-ring, AF30 filter 1
2 228021 Kit: Fan M1 1
3 128680 Kit: Inductor, input choke L2 1
4 128673 Kit: Capacitor C94, C98 2
5 128664 Kit: Power transformer T2 1
6 128679 Kit: Inductor, output choke L1 1
1
3
4
6
5
2
