Hypertherm powermax1250 - Heat Sink Assembly

PARTS – POWER SUPPLY
4
4-6 powermax1250 Service Manual

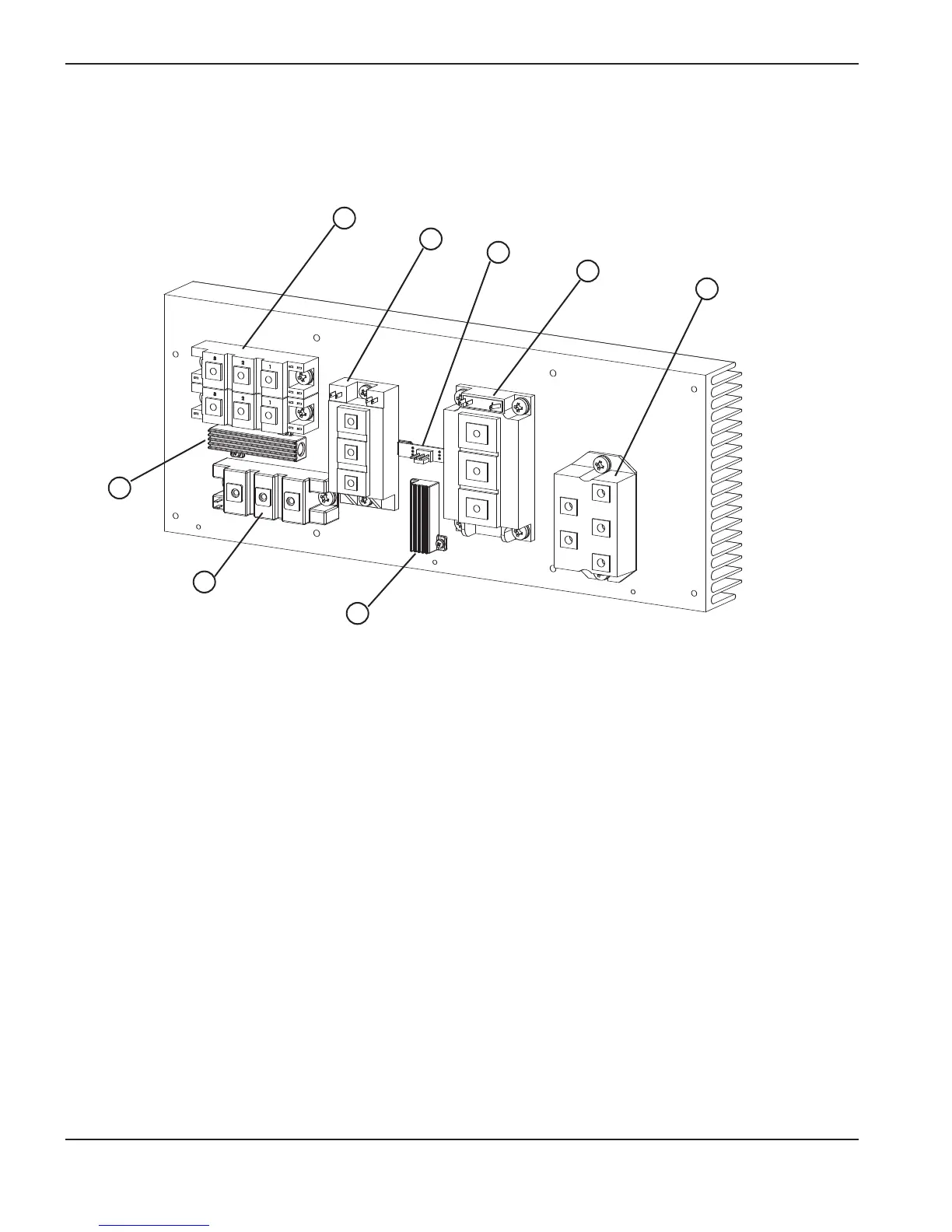

Heat sink assembly
Part
Item number Description Designator Qty.
127128 Thermal grease, T-grease 2500
TM
, 10cc 1
1 128677 Kit: Output diode bridge D25 1
2 128676 Kit: Inverter IGBT Q6 1
3 128684 Kit: Temperature Sensor PCB4 1
4 228071 Kit: PFC IGBT Q7 1
128675 Kit: PFC IGBT
For serial numbers below 1250-014785 or 1250014795 (CE)
5 128678 Kit: Input diode bridge D24 1
6 128670 Kit: Snubber resister (7.5 Ω)1
7 128674 Kit: pilot arc IGBT Q8 1
8 128669 Snubber resister (20 Ω)1
Reference Section 3,
Heat sink component replacement , for torque specifications.
1
2
3
4
6
8
5
7
