MAINTENANCE
3-36 powermax1250 Service Manual
4
A

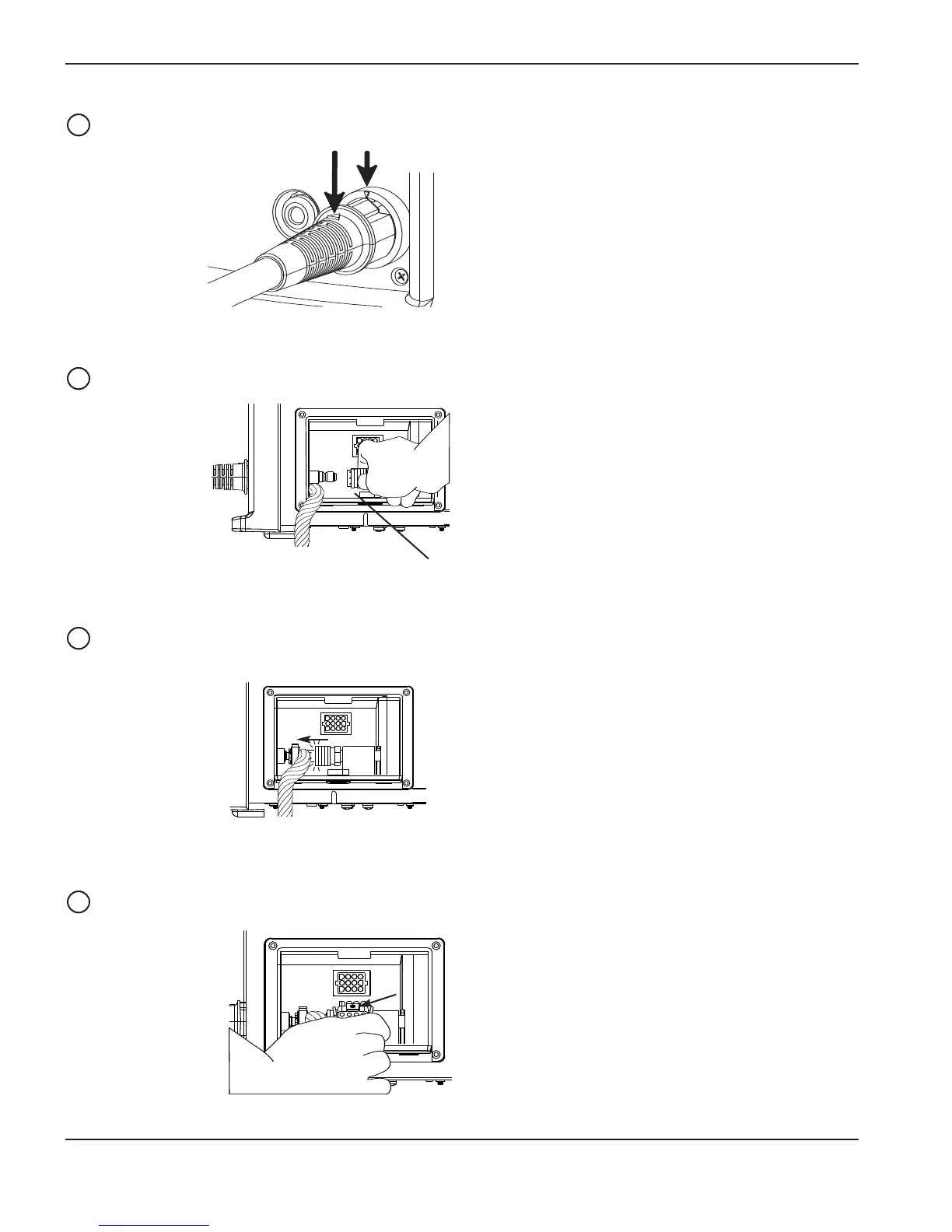

lign the marks on the strain relief with the marks on the end cap.
4
Pull back the quick-release collar and insert the lead’s gas fitting.
5
Slide the quick-release collar forward to lock in the gas fitting. Verify that the gas fitting is secure.
6
Verify that the red dot on the connector is on top, then plug in the electrical connector. Close the ETR door.
7
Quick-release
collar
