Remove an endcap
Endcaps can be removed to replace them. Also some repairs are easier to make with an endcap
removed.
1. Turn OFF the power, disconnect the power cord, and disconnect the gas supply.
2. Remove the cover and the Nomex barrier.

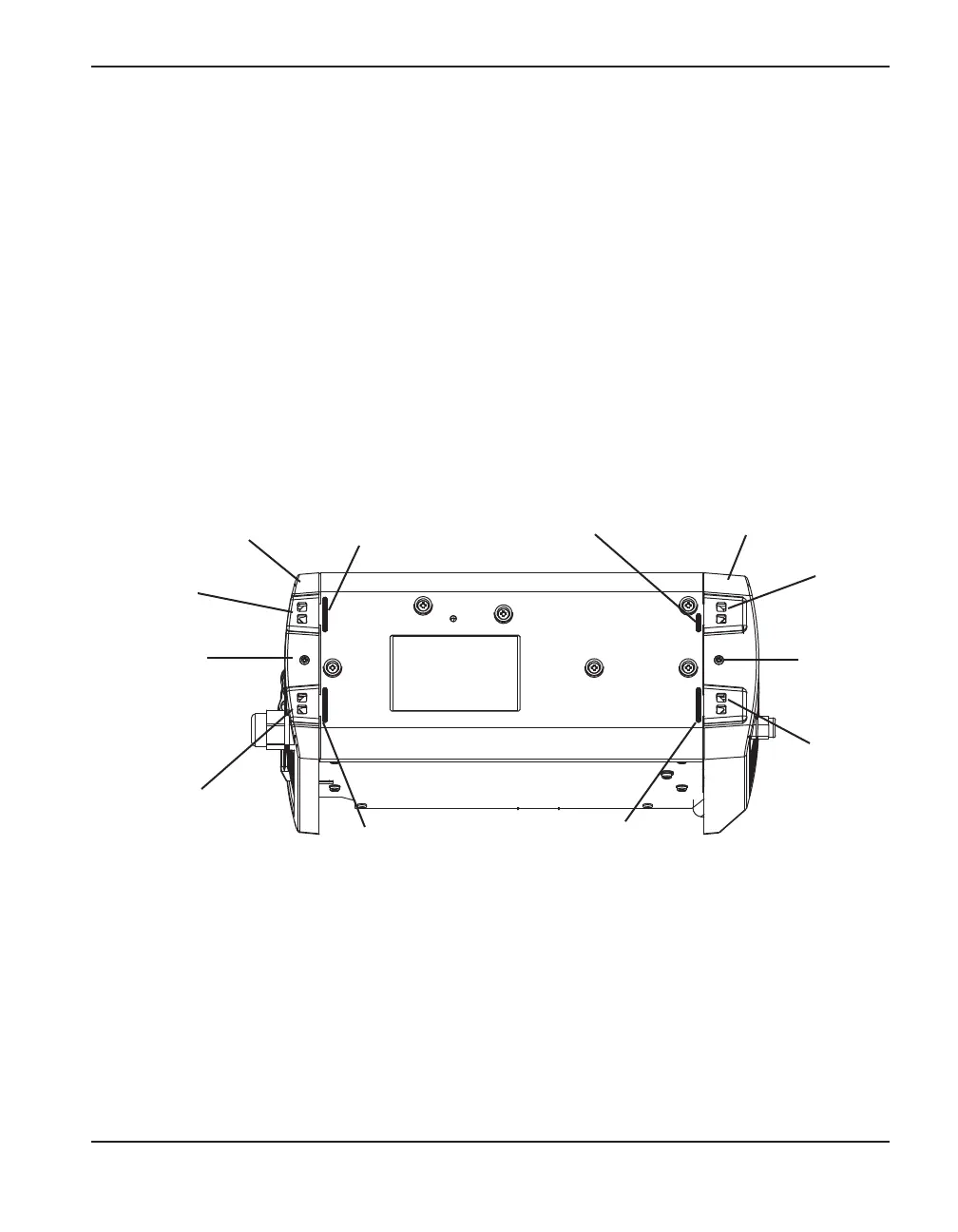

3. Lay the power supply on its side on a workbench or hold it upside down. The raised feet on the
bottom of the unit have holes to provide access to the snaps that hold the endcaps in place.
Next to each foot is a raised rib.
Snap
Snap
Snap
Snap
Rib
Rib
Rib
Rib
Retaining
screw
Retaining
screw
Rear endcap
Front endcap
4. Remove the retaining screw from the bottom of the endcap.
