MAINTENANCE AND PARTS
2
powermax30 Operator Manual 5-11
9. To replace the endcap, push it into the base to re-engage the snaps and then replace the
retaining screw.
10. Replace the Nomex barrier and slide the cover back onto the power supply.
11. Position the handle over the holes in the top of the cover, then use the 2 screws to secure the
cover.
12. Reconnect the electrical power and the gas supply.
Disconnect the torch lead
1. Turn OFF the power, disconnect the power cord, and disconnect the gas supply.
2. Remove the cover and remove the Nomex® barrier from in front of the power board.
3. Compress the hose fitting collar and pull the hose from the fitting to remove the gas hose from
the solenoid valve.

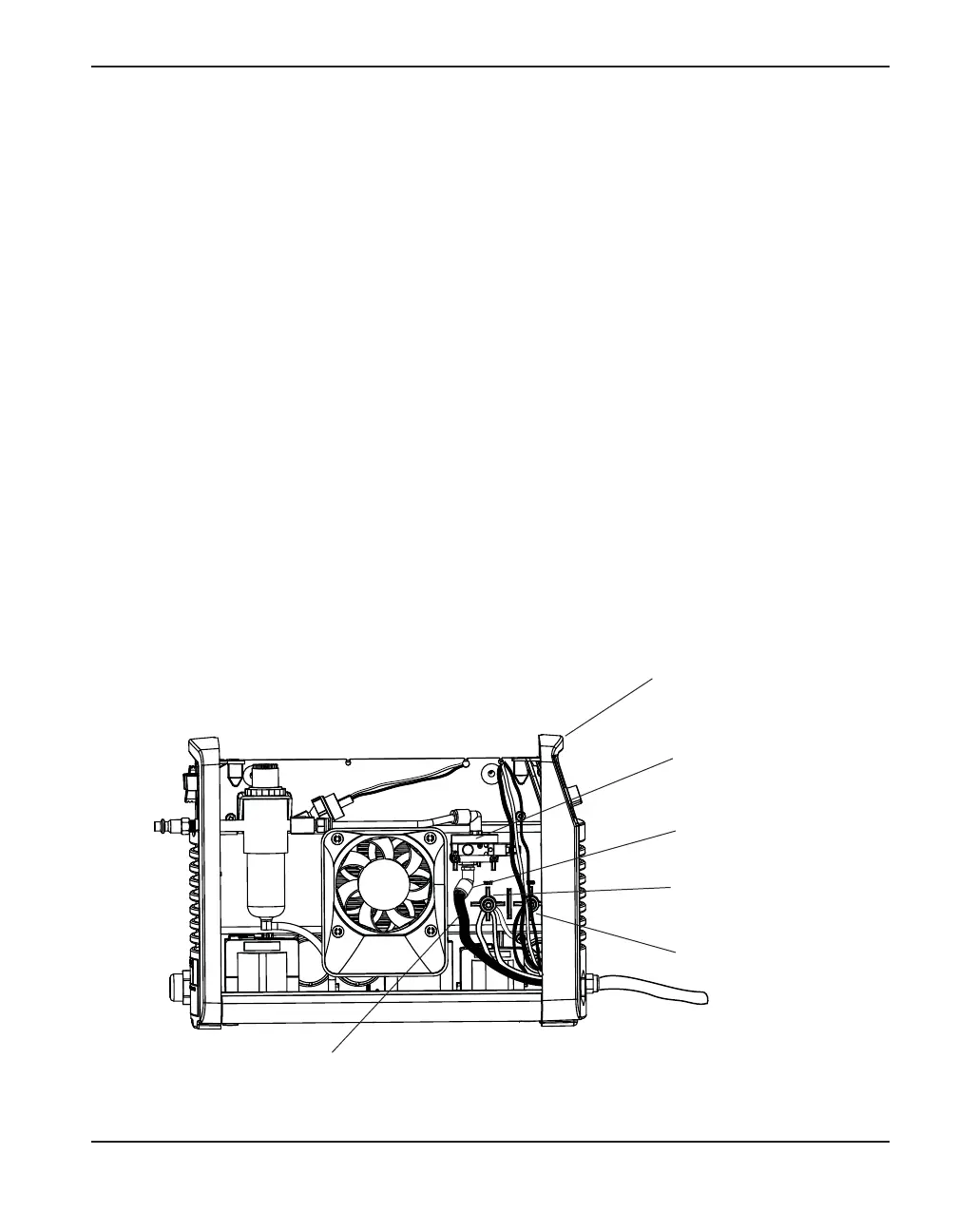

Front endcap
Solenoid valve
Hose fitting collar
Gas hose
White wire group
Red wire group
PMX30_OM_05.qxp:PMX30_OM_05 10/7/09 12:46 PM Page 5-11
