3-32
MAINTENANCE
powermax600 Service Manual
129529exploded.eps
A
A
A
A
B
C
Reference
Notes:
A Apply thermal grease and Torque to 20 in-lb / 23 kg cm
B Apply thermal grease and Torque to 8 in-lb / 9 kg cm
C Torque to 8 in-lb / 9 kg cm
Heat Sink Component Replacement
11-99

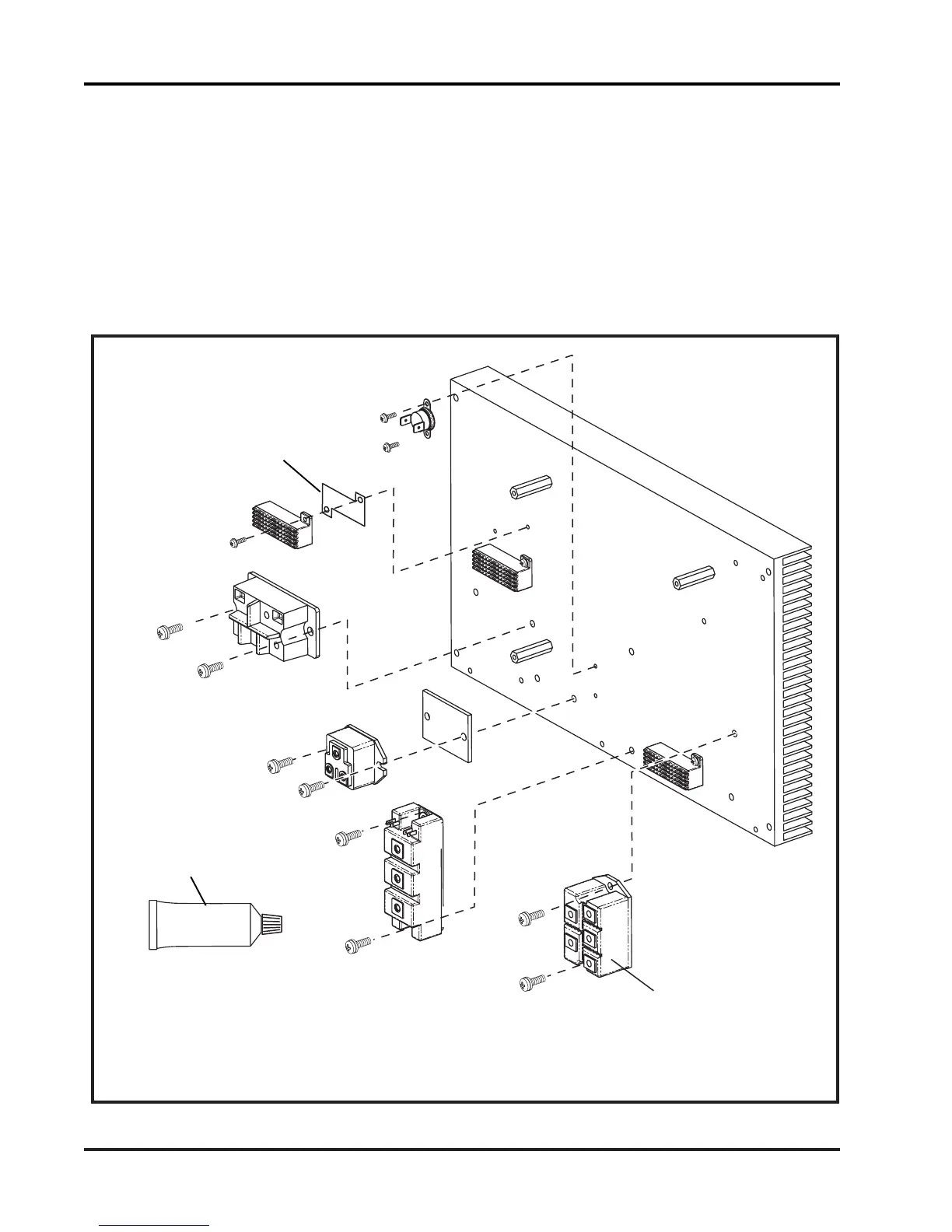

Figure 3-16 Heat Sink Component Replacement
Installation - Refer to Figure 3-16.
Install components to the heat sink as shown
below.
Use a new thermal pad on components C.
Use thermal grease on components A and B.
Apply a thin coat to the component, install with
screws, and tighten to required torque.
Re-torque after 2 minutes. Repeat until torque is
maintained. Clean excess grease from heat sink.
Thermal Pad
Thermal Grease
To Next Page
