4-4
PARTS LIST - 400/230V CE
powermax600 Service Manual
Part
Item Number Description Designator Qty.
1 003193 Circuit breaker, 400 V S1 1
003195 Circuit breaker, 230 V S1 1
2 041566 EMI Filter PCB, 400 V PCB1 1
041587 EMI Filter PCB, 230 V PCB1 1
3 129368 Power cable, 400 V 1
129410 Power cable, 230 V 1
4 008389 Strain relief, 400 V 1
108107 Strain relief, 230 V 1
5 109070 Toroid 1

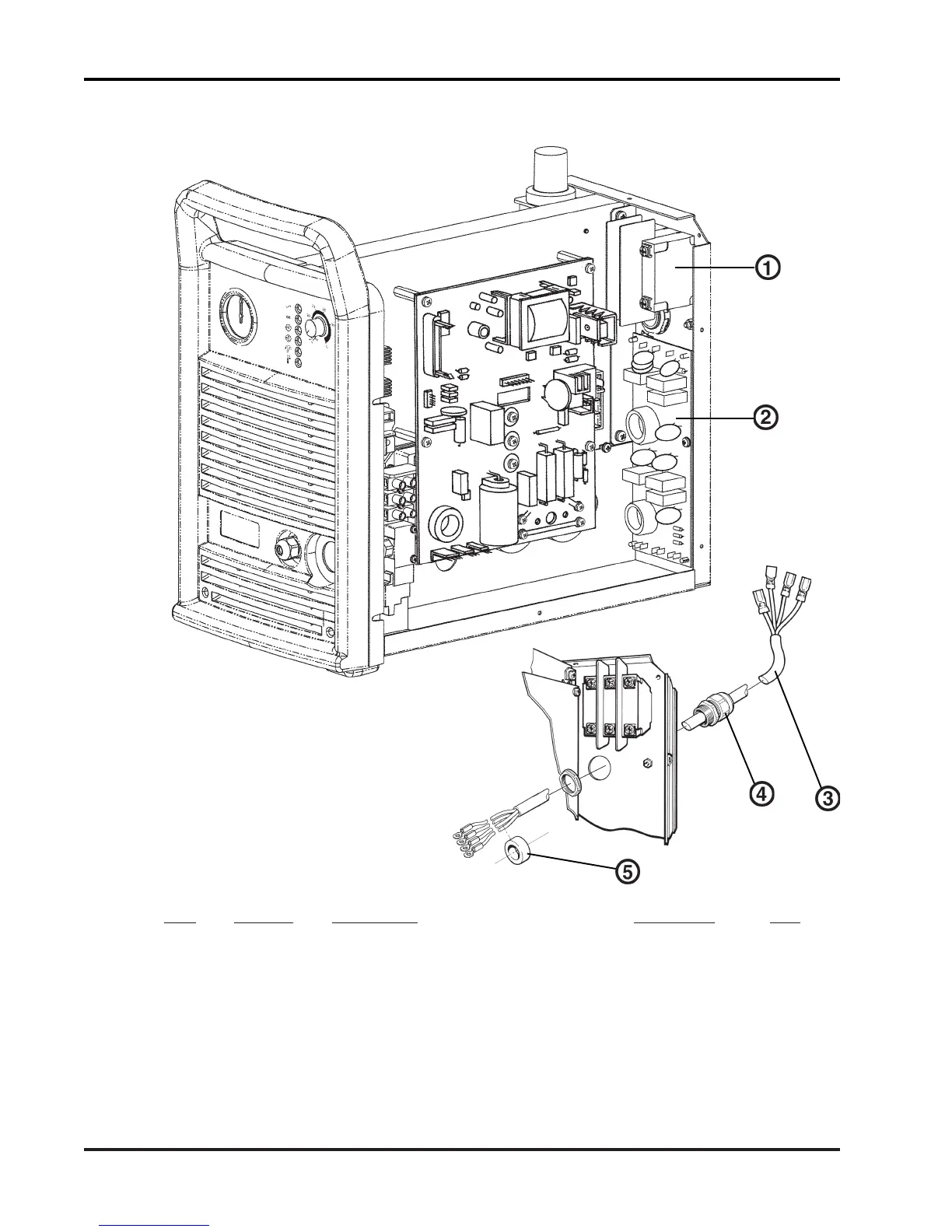

POWER SUPPLY – BACK INTERIOR RIGHT SIDE
