Hypertherm powermax600 - Power Supply - Heat Sink Assembly

5-6
PARTS LIST - 208-240/480V
powermax600 Service Manual
Part
Item Number Description Designator Qty.
1 109088 Output diode D2 1
2 009849 Resistor, 20 OHM 2
3 109080 IGBT, pilot arc Q3 1
4 005222 Temp switch TS1 1
5 109079 IGBT module, 480V Q2 1
109183 IGBT module, 208-240V Q2 1
6 009849 Resistor, 20 OHM 1
7 109175 Input diode bridge, 480V D18 1
- 109174 Input diode bridge, 208-240V D18 1
8 041652 Power PCB, 480V PCB2 1
- 041650 Power PCB, 208-240V PCB2 1
9 008903 Thermal pad 3
10 027662 Thermal grease, 5 oz. tube 5 places
11-99

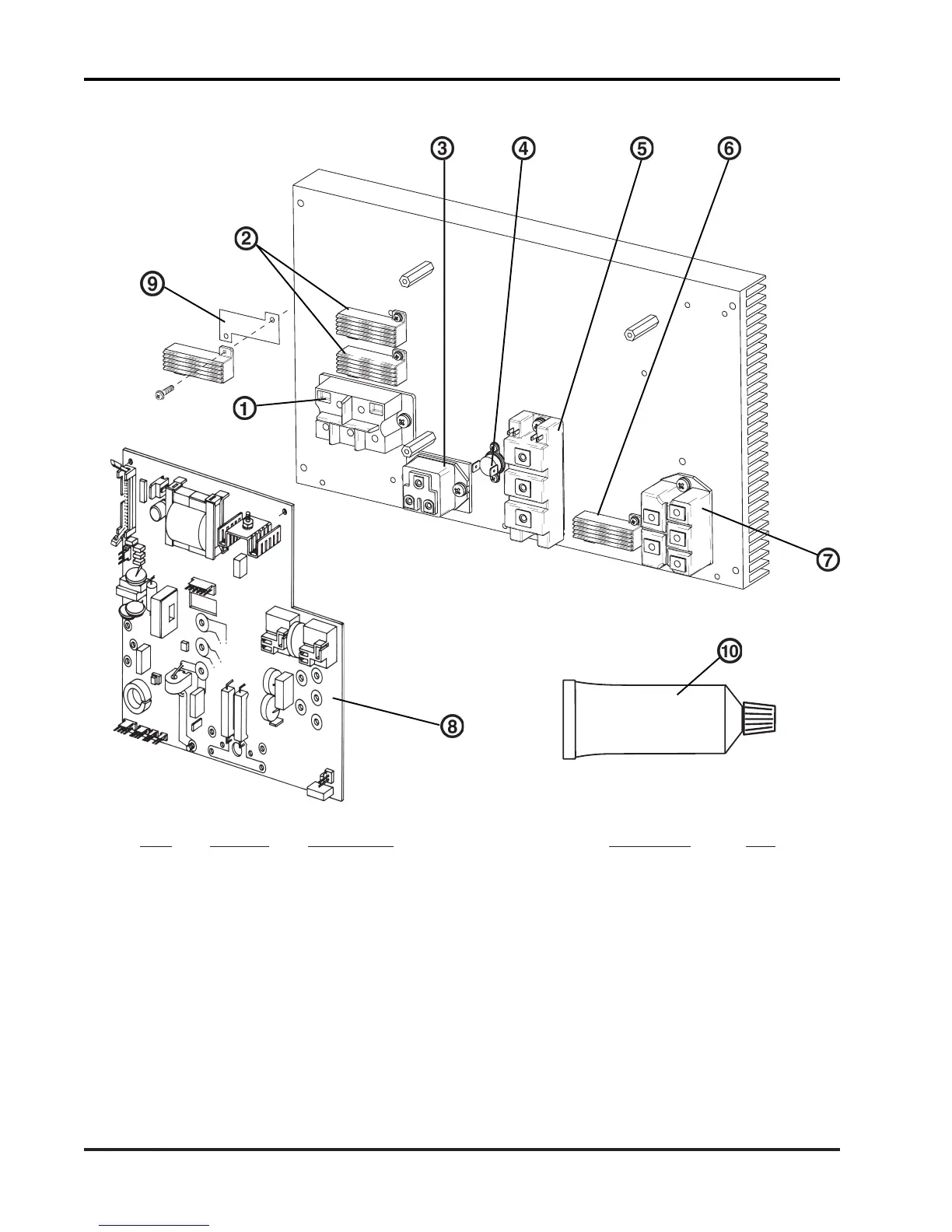

POWER SUPPLY – HEAT SINK ASSEMBLY
129528
DC-120
PMX600.28
