OPERATION
10-99
4-12 powermax600 Operator Manual
Machine Torch Operation

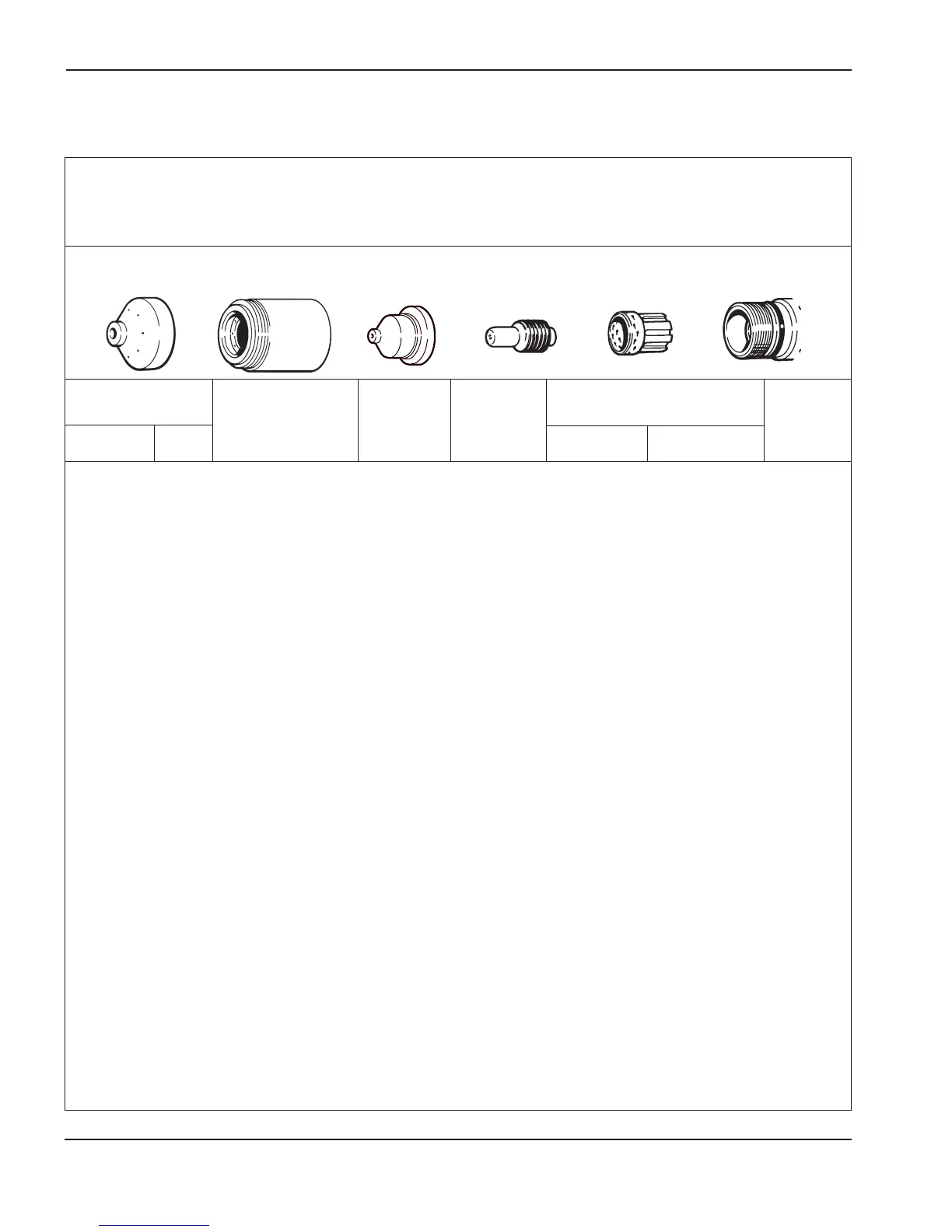

Cut Chart - 40 Amp Standard Consumables
• The following recommended settings are for mechanized cutting.
• Torch-to-work distance for the following cut chart is 1/16 inch / 1.5 mm for all cuts.
Shield
120827
Retaining Cap
120600
Nozzle
120826
Electrode
120573
Swirl Ring
120576
PAC123
Torch
Material Thickness Arc Arc Recommended Travel Speed Pierce
Material Current Voltage Delay
(ga. or in.) (mm) (A) (VDC) (ipm) (mm/min.) (Sec.)
26 ga. 0.5 Mild Steel 20 155 250 6850 0
16 ga. 1.5 Mild Steel 20 155 385 1780 0
16 ga. 1.5 Mild Steel 40 120 370 10150 0
1/8" 3 Mild Steel 40 120 140 4950 0.5
1/4" 6 Mild Steel 40 130 55 1680 1.0
3/8" 10 Mild Steel 40 140 27 640 †
1/2" 13 Mild Steel 40 140 19 460 †
5/8" 16 Mild Steel 40 150 10 250 †
0.020" 1 Aluminum 20 170 175 4150 0
0.060" 1.5 Aluminum 20 170 125 3330 0
16 ga. 1.5 Aluminum 40 130 420 10900 0
1/8" 3 Aluminum 40 135 140 4450 0.5
1/4" 6 Aluminum 40 140 53 1620 1.0
3/8" 10 Aluminum 40 150 25 510 †
1/2" 13 Aluminum 40 150 17 410 †
5/8" 16 Aluminum 40 160 8 200 †
26 ga. 0.5 Stainless Steel 20 160 235 5970 0
16 ga. 1.5 Stainless Steel 20 160 50 1270 0
16 ga. 1.5 Stainless Steel 40 130 400 10150 0
1/8" 3 Stainless Steel 40 140 105 4060 0.5
1/4" 6 Stainless Steel 40 140 44 1320 1,0
3/8" 10 Stainless Steel 40 140 21 510 †
1/2" 13 Stainless Steel 40 150 14 330 †
5/8" 16 Stainless Steel 40 160 7 180 †
† To cut material above 6 mm, start torch at edge of material.
