HySecurity SlideDriver 50 VF Series User Manual

48 MX3630-01 Rev. J SlideDriver/SlideDriver 50VF Series © 2019 www.hysecurity.com
NOTE: VFD manufacturer’s upgrade released May 2017. Refer to Technical
Bulletin located on the HySecurity website. New wiring diagram below.

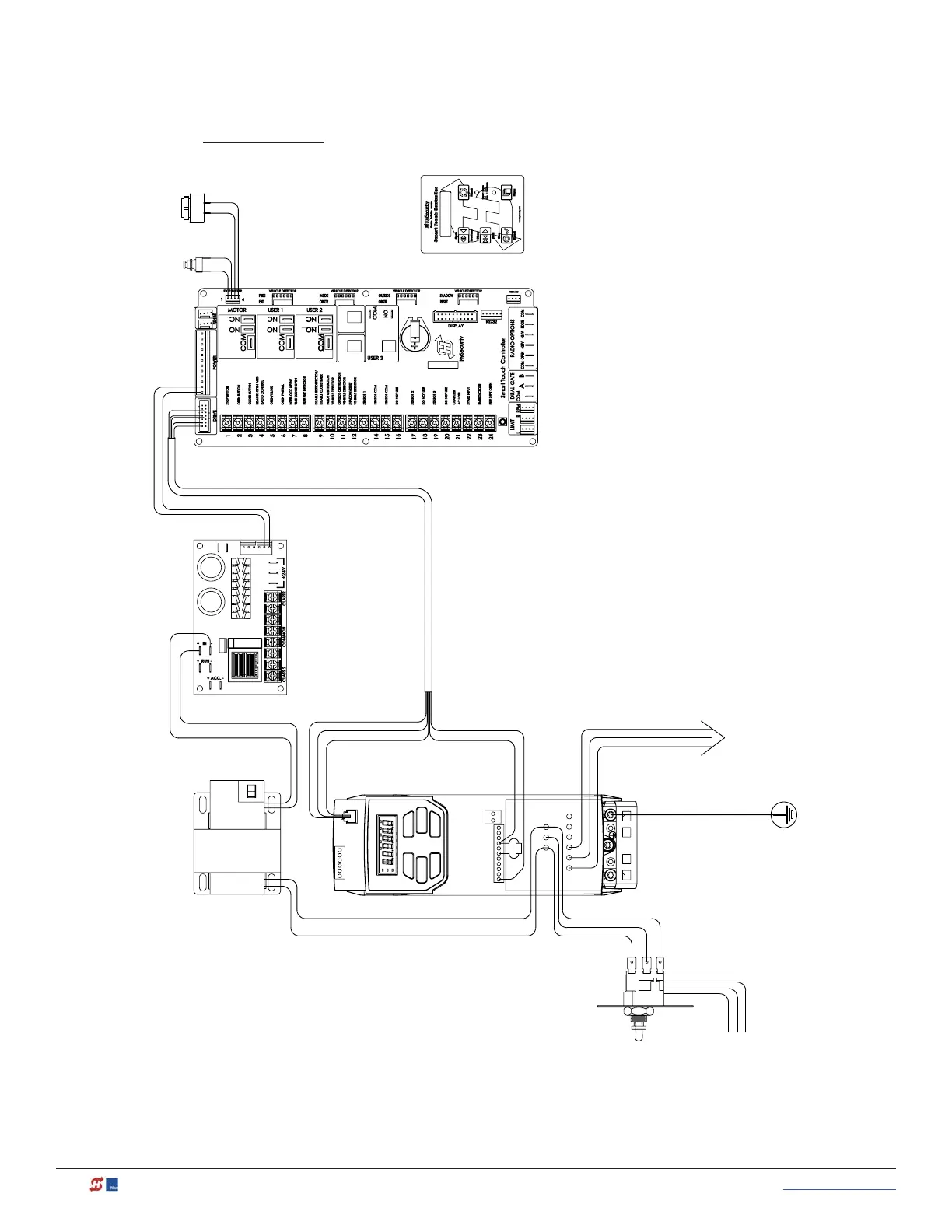

Variable Speed Drive Wiring Diagram, May 2017
11
9
1
L3L2L1
W
U
V
L1 L2 L3
AC POWER IN FOR SINGLE PHASE (1Ø) CONNECT TO L1 & L3 FOR 3Ø CONNECT TO L1,L2 & L3 A 20A CIRCUIT BREAKER MUST BE PROVIDED IN THE FIELD BY THE INSTALLER
1 PH. USE ONLY
L1 & L3
2.2K
24V DC
COMMON
GREEN - RED +
TRANSFORMER 75VA 24VAC SECONDARY
POWER MODULE
VARIABLE FREQUENCY DRIVE (VFD)
BLUE
WHITE/BLUE
3Ø TO THE ELECTRIC MOTOR
2 HP @ 230V
OR
2 HP @ 460V
CHASSIS GROUND
RS-485 CONNECTION
(MX002413)
BUZZER
DISPLAY AND
KEYPAD WIRING
NOT SHOWN
COLOR CODED XFMR TO L1
BLACK XFMR TO L3
STOP
BUTTON
D0808 Rev A
