Items in the Package
Please unpack carefully and check that all items listed
below are received. If any item is missing or damaged,
please contact your dealer.
Note: The frequency band is marked on the
label of the antenna; if not, please refer to
the label on the radio for frequency band
information.
Battery
ChargerAntenna
Strap
Belt Clip
Power Adapter
Radio
Documentation Kit

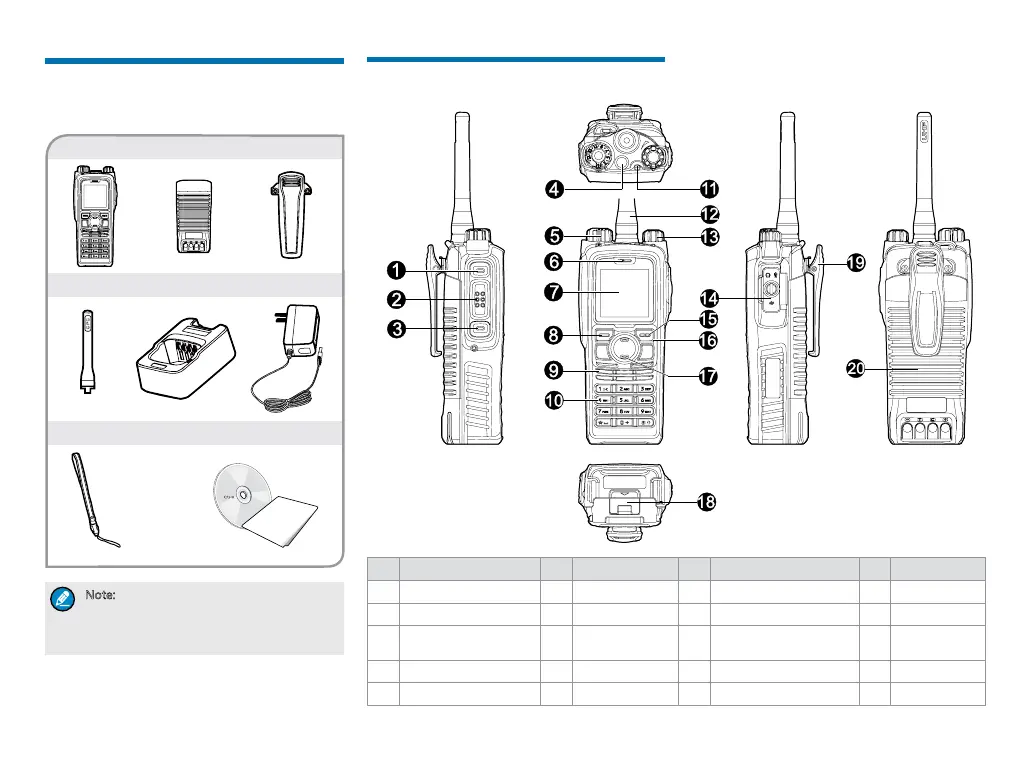

Product Overview
Product Controls
No. Part Name No. Part Name No. Part Name No. Part Name
1
SK1 (Side Key 1)
6
Microphone
11
LED Indicator
16
Up Key
2
PTT (Push-to-Talk) Key
7
LCD Display
12
Antenna
17
Down Key
3
SK2 (Side Key 2)
8
OK/Menu Key
13
Power On-Off/Volume
Control Knob
18
Battery Latch
4
TK (Top Key)
9
Speaker
14 Accessory Connector 19
Belt Clip
5
Channel Selector Knob
10
Numeric Keypad
15
Back Key
20
Battery
