Hytera PD79 Ex Series User Manual

4
Programmable Keys
For enhanced convenience, you may request your
dealer to program the SK1, SK2, and TK (
) as
shortcuts to certain functions. Please refer to the
corresponding Feature Book for more details.
Caution: The TK is programmed with
emergency feature by default (short press:
Emergency On; long press: Emergency
Off). It is programmable by your
dealer.

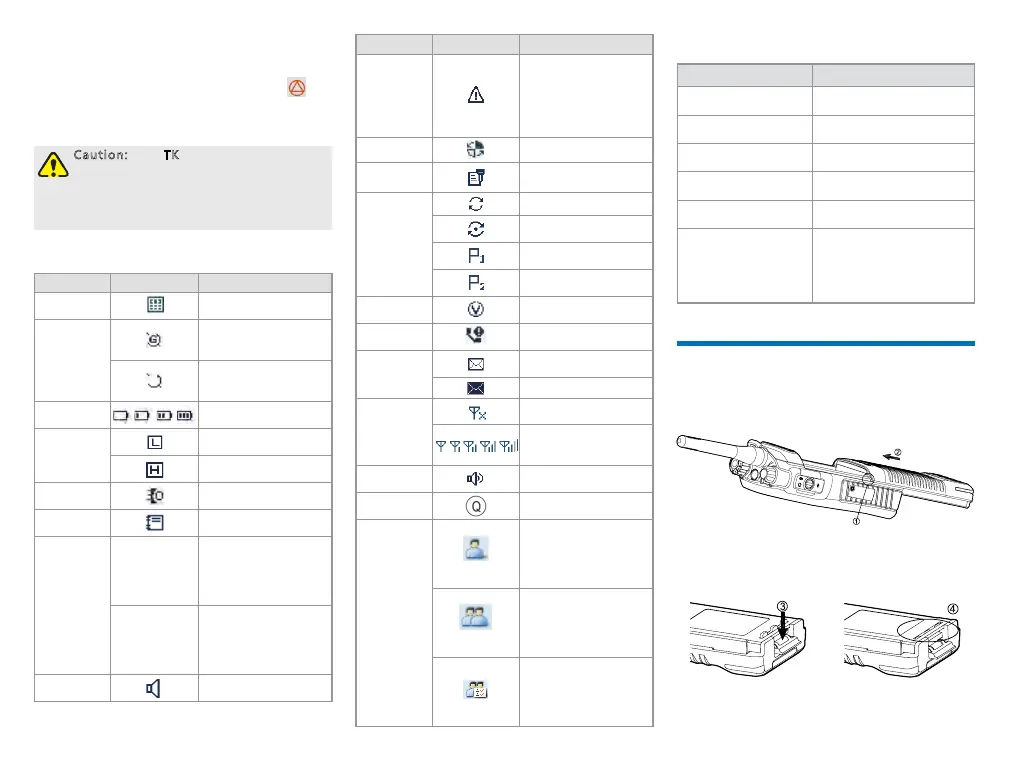

LCD Icon
Icon Name Icon Radio Status
DTMF
Keypad Icon
The DTMF keypad is
active.
GPS Icon
The GPS feature is
enabled, and valid
GPS data is received.
The GPS feature is
enabled, but no valid
GPS data is received.
Battery
Power Icon
More bars indicate
more battery power.
TX Power
Icon
Low TX power for the
current channel.
High TX power for the
current channel.
Accessory
Icon
An accessory is
connected.
Work Order
Icon
One or more new work
orders are received.
Operation
Mode Icon
DM
Direct Mode
Operation: Under
this mode, radios can
communicate with
each other directly.
RM
Repeater Mode
Operation: Under
this mode, radios
communicate with each
other via a repeater.
Monitor Icon
The Monitor feature is
active.
Icon Name Icon Radio Status
Emergency
Icon
The radio is in
emergency state
(except for silent
emergency type) or
an emergency call is
received.
Roam Icon
The radio is roaming.
Scrambler/
Encrypt Icon
The Scrambler/Encrypt
feature is active.
Scan Icon
The radio is scanning.
The radio stays on a
non-priority channel.
The radio stays on
Priority Channel 1.
The radio stays on
Priority Channel 2.
VOX Icon
The VOX feature is
enabled.
Missed Call
Icon
Missed call(s).
Message
Icon
New message/unread
message.
Inbox is full.
RSSI Icon
No signal.
More bars indicate
better signal strength.
Speaker
Icon
The speaker is
unmuted.
LQO Icon
The LQO feature is
active.
Call/Contact
Icon
●
Indicates a private
call in progress.
●
Indicates a private
contact in the
contact list.
●
Indicates a group
call in progress.
●
Indicates a group
contact in the
contact list.
●
Indicates an all call
in progress.
●
Indicates an all
call contact in the
contact list.
LED Indicator
LED Indication Radio Status
The LED indicator
ashes green.
Powering on
The LED indicator
glows green.
Receiving
The LED indicator
glows red.
Transmitting
The LED indicator
ashes orange slowly.
Scanning or roaming
The LED indicator
ashes orange rapidly.
Emergency
The LED indicator
glows orange.
Call hung. During a call,
you can hold down the
PTT key to talk to the other
party before the call hang
time expires.
Before Use
Attaching the Battery
1. Align the battery slots with the guide rails on the
radio as
①
shows, and push the battery as
②
shows.
2. Open the battery latch and hold it down until the
metal lock goes into the battery housing completely
as
③
shows.
