DIGITAL jGUN SETUP AND USE
Proper setup and use of the Digital jGun before and during installation ensures accurate results and safe
operation.
Setting a Torque Value
1. Connect an adequate air supply to the input of the tool's regulator.
2. Select desired Torque units via the right most push button.
3. Adjust the regulator until desired torque is displayed.
NOTE
While setting torque the trigger should be pulsed until the displayed
torque value is stable.

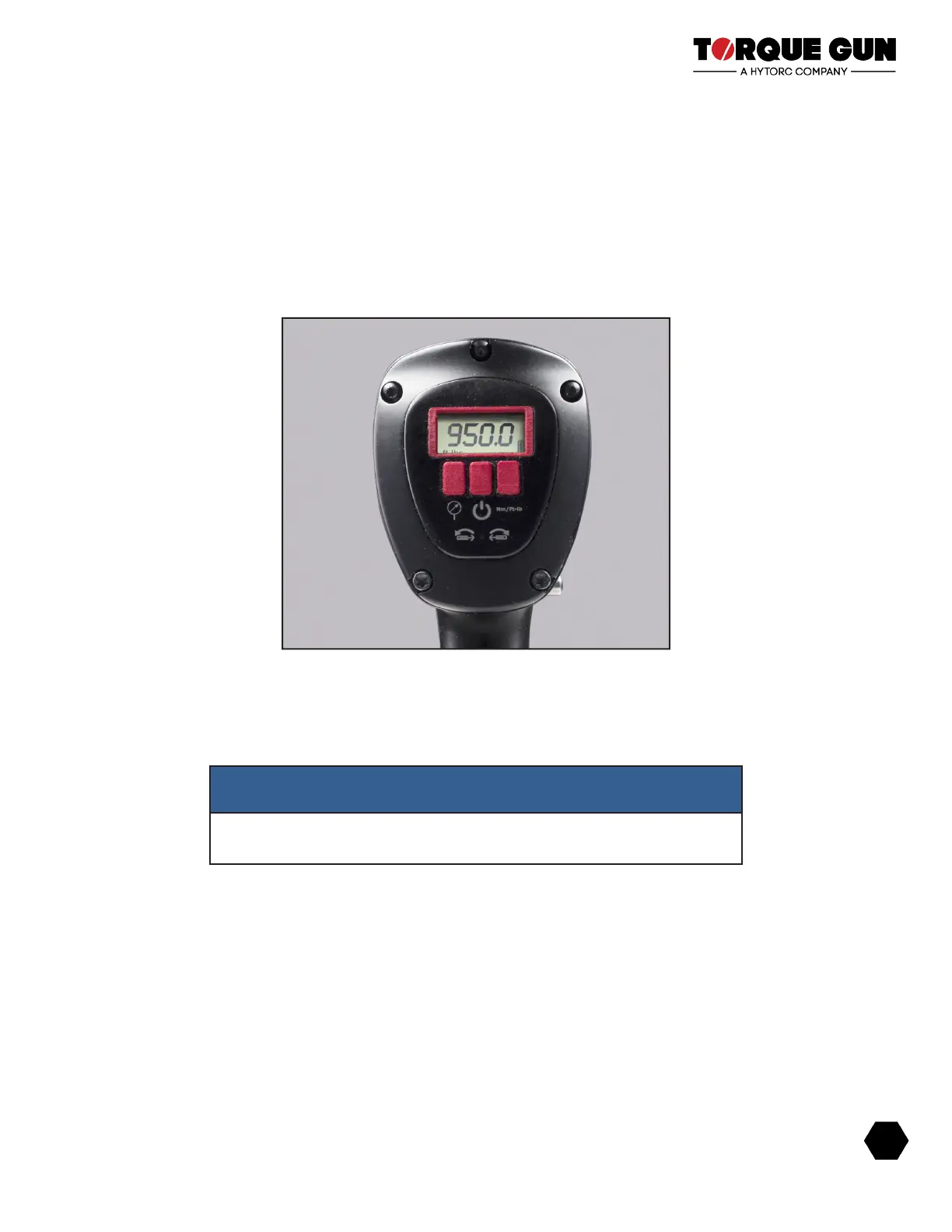

Digital jGun Display
Changing the Drive Direction
1. To change the square drive direction from clockwise to counter clockwise.
2. Move the direction selector behind the trigger as indicated on the back of the unit.
3. Left button – Toggle between TORQUE and PRESSURE mode on the display.
4. Center button – Toggle on-off.
5. Right button – When in TORQUE mode, toggle between units of PSI, bar and KPa. When in
PRESSURE mode, toggle between units of ft-lbs and Nm.
