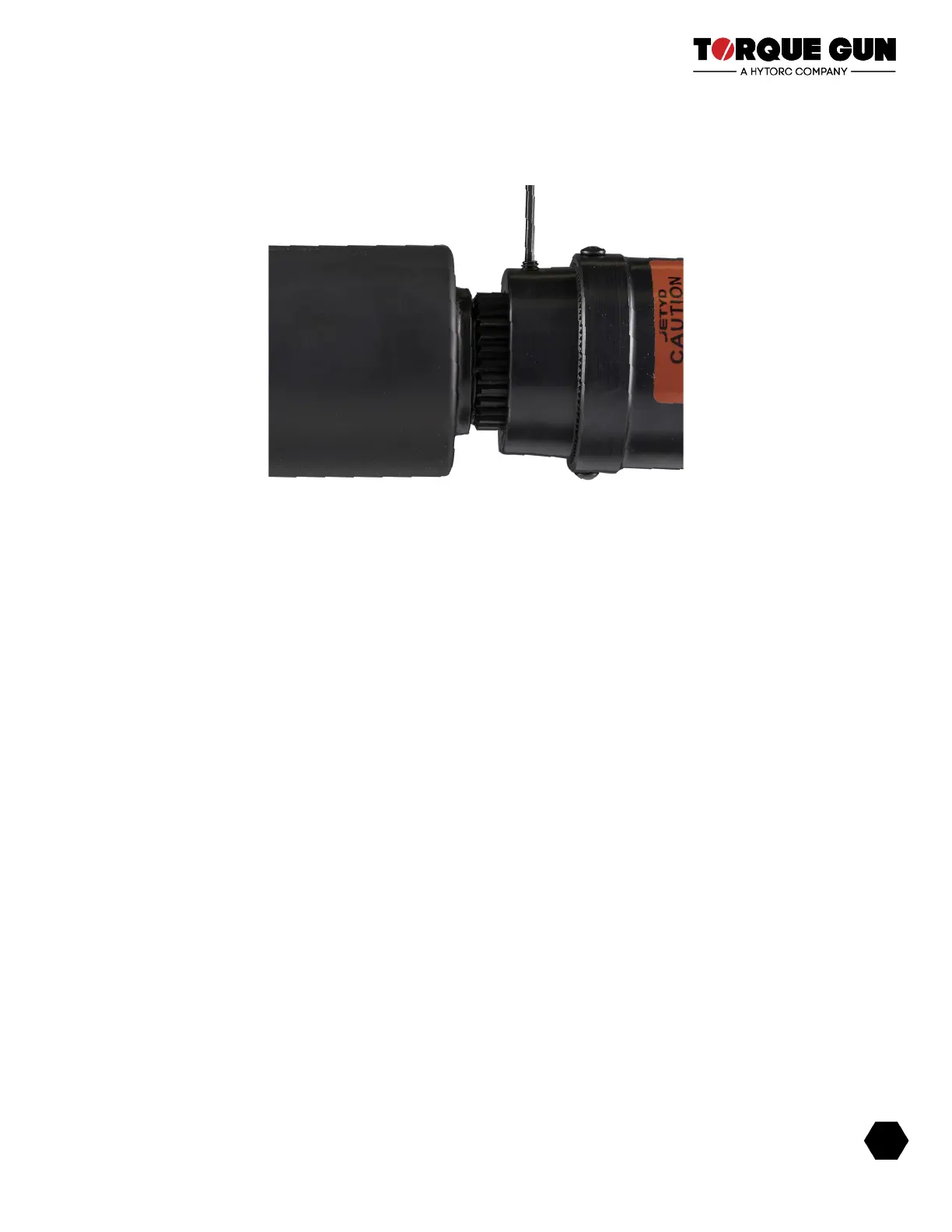

Aligning HYTORC Washer™ Socket Set Screw with Machined Recess in Digital jGun Splines
Installing HYTORC Washer Driver
• The set screw for fastening the HYTORC Washer Driver is aligned with the milled recess in the ring
gear of the tool.
• Tighten the set screw and then loosen it again by ¼ turn.
