4.2 Power supply (electric pump units)
There are different types of electric pump units to operate the tool:
1. 230V pump unit
2. 400V pump unit
Warning:
• If you use an extension cable:
• Do not use an extension cable longer than necessary.
• Make sure that the length of the extension cable does not exceed 50
metres.
• Make sure that the cross section of the wires in the extension cable is
at least 2.5 mm
2
.
• Fully unroll the extension cable from the cable drum.

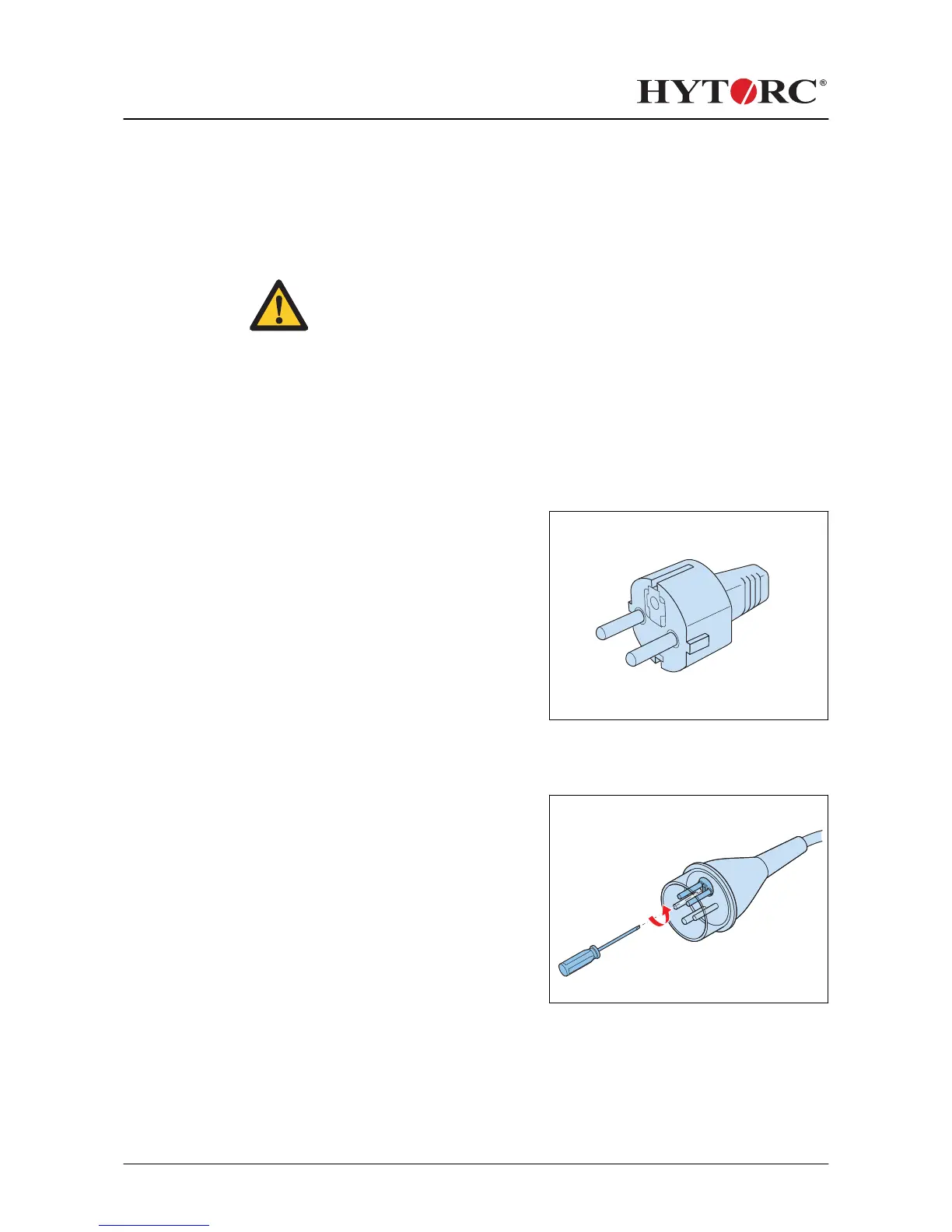

4.2.1 Connecting the power supply (230V)
Procedure
1. Connect the mains plug to the wall
socket.
2. Make sure that the cross section of
the wires in the extension cable is
at least 2.5 mm
2
).
4.2.2 Connecting the power supply (400V)
Procedure
1. Connect the mains plug to the wall
socket.
2. If the pump does not start to
operate, use a thicker or shorter
extension cable.
3. Make sure that the direction of
rotation is correct. If the LED
indicator on the pump unit lights
red, the direction of rotation is
incorrect. Reverse the polarity of
the phase inverter plug.
a) Place a flat-head screwdriver
as shown.
b) Turn the insulated plate 180° to reverse the polarity of the phase inverter plug.
Installation
22 37 - 001 -
