3-5. OPB-340 Board Adjustment
(1) Connection
- OPB-340 Board is used for car call, key box connection, LS board connection, and etc.
- please refer to Figure 8.

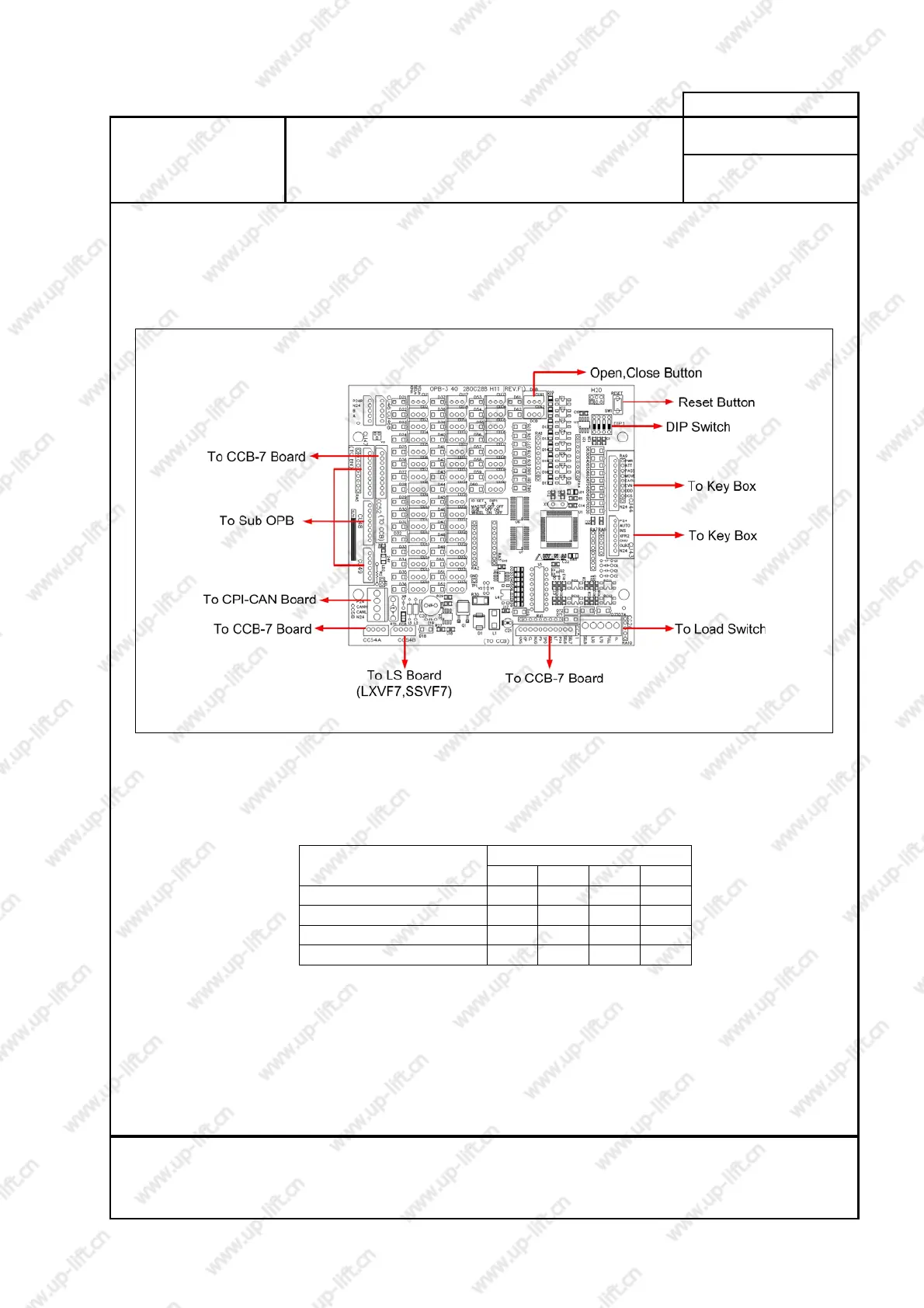

[Figure 8. OPB-340 Board]
(2) DIP Switch adjustment
- OPB-340 Board has a ID of its own. So please check DIP switch.
OPB Type
DIP Switch
1234
Main OPB off off off off
Sub OPB off off off on
Handicap OPB #1 off off on off
Handicap OPB #2 off off on on
[Table 6. OPB-340 Board DIP Switch]
(3) OPB Button
- Resistor of button PCB is 300ohm. (differed from hall button)
(4) Jumper Pin (JU1)
- Jumper Pin (JU1) must be short.
