Hyundai Elevator SSVF7 - 4. Inspection Operation; 4-5. Operate Inspection

Hyundai Elevator Co., Ltd. STVF7 SYSTEM
REV.0 2009.11.06
TITLE
File Name :
STVF7 ADJUST MANUAL
STVF7 SERIES
ADJUSTMENT MANUAL
Document Number :
Rev. Commemts :
HELCO-C5-003-01 - 17 - A4(210㎜×297㎜)
3-9. LS Board Adjustment
- LS board (HLC-2004) is a primary role to decrease start shock.
- Please refer to figure 14.

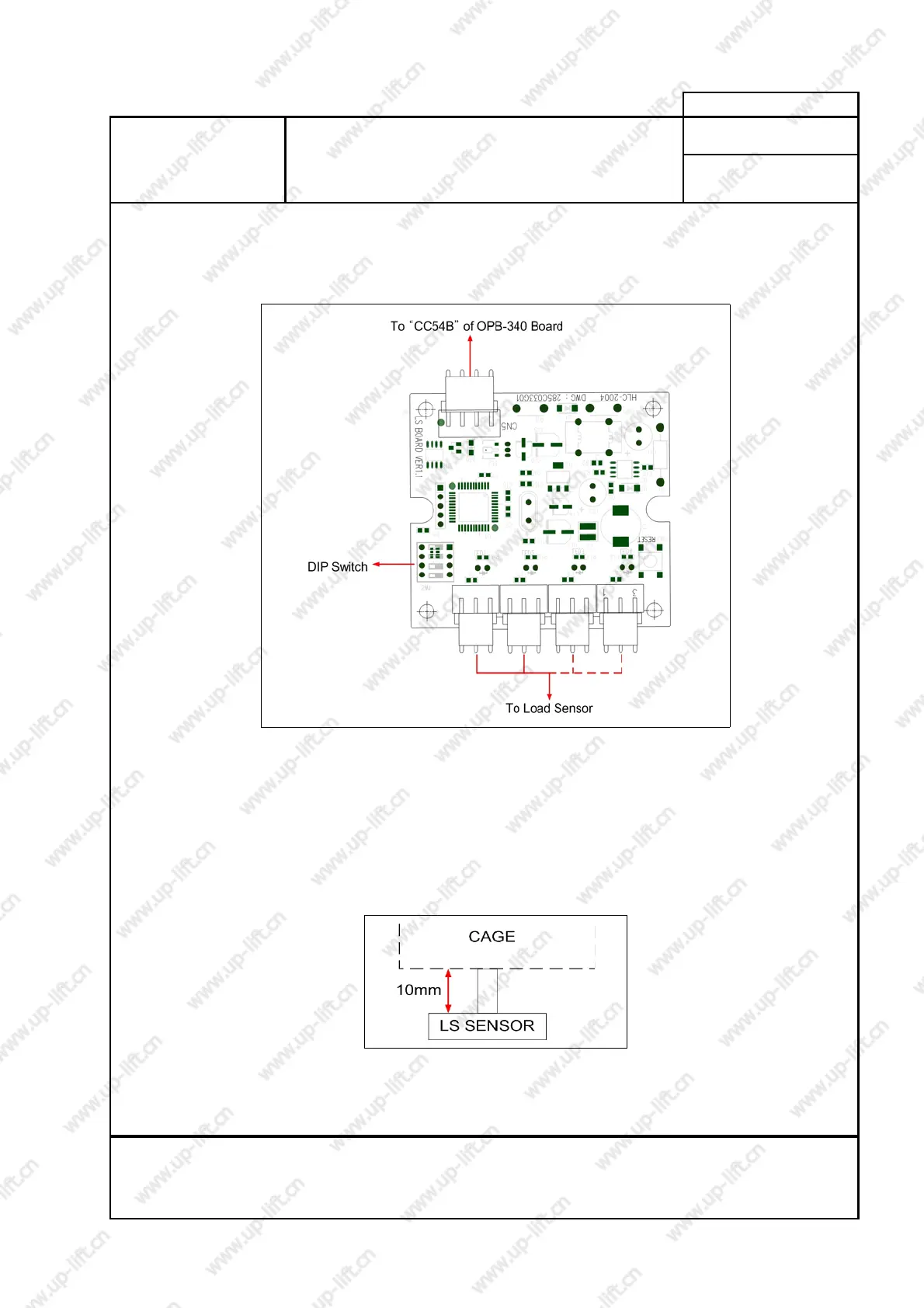

[Figure 14. LS Board]
- Install the LS sensor under the car, and connect to the "CN1,CN2" of LS board.
- And set dip switch 1 and 2 on.
(If Ls sensor is one unit only, connect it to the "CN1" connector of LS board and
set on dip sw 1 only also)
- LS sensor must be installed in state of being pressed with about 10mm.
[Figure 15. LS Sensor position]
- Refer to the "Chapter 6. Load Compensating Device".
