3-4. CCB-7 Board Adjustment
- CCB-7 Board is installed in car junction box.

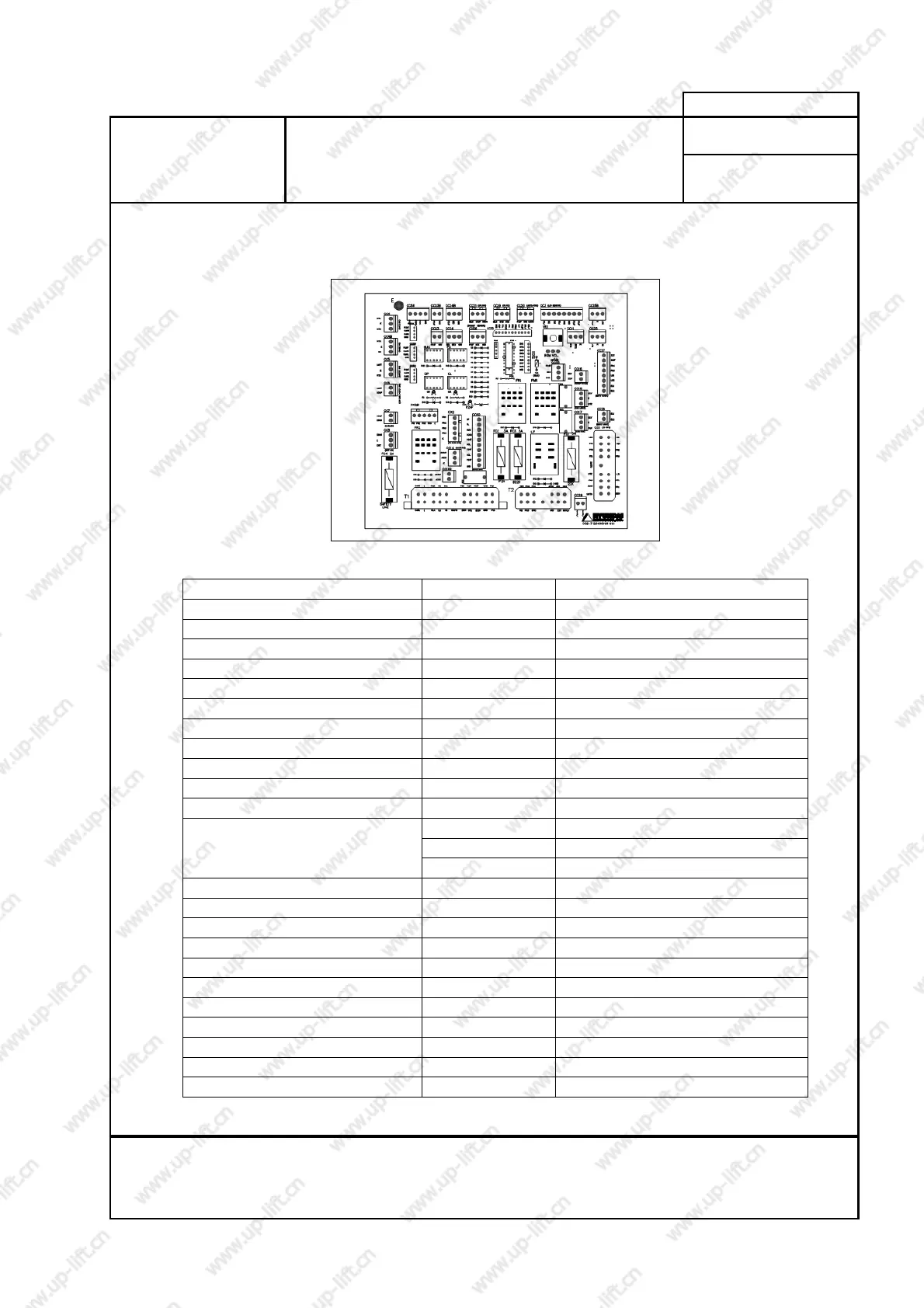

[Figure 7. CCB-7 Board]
DEVICE CONNECTOR REMARK
Safety switch CC5
Exit switch CC8
Compensating chain CC7 Jumper (not used)
Gate switch 1 CC4B
Gate switch 2 CC4 Jumper (not used)
Door inverter CC50
Safety edge 1 CC25B Jumper (not used)
Safety edge 2 CC25 Jumper (not used)
Safety ray power CC23, CC23B
Safety ray 1 CC24B Jumper (not used)
Safety ray 2 CC24 Jumper (not used)
Multi beam
CC24B Jumper
CC24
CC16B Multi beam adapter
Landing device sensor CC3
Dummy sensor CC56 for Non-stop floor
Door load detector CC55 for door turn function
Cage fan CC17
Cage light CC18
Emergency light CC28
BGM speaker CC11
OPB CAN communication CC54A, CC54B to "CC54A" of OPB-340 board
Voice synthesizer CC54C to "CN2" of voice synthesizer
Emergency power supply CC27
CPI-CAN CC58 to "CH1" of CPI-CAN board
[Table 5. CCB-7 Board Connection]
