Hyundai Elevator SSVF7 - 3-6. HPI;HIP CAN Board Adjustment

Hyundai Elevator Co., Ltd. STVF7 SYSTEM
REV.0 2009.11.06
TITLE
File Name :
STVF7 ADJUST MANUAL
STVF7 SERIES
ADJUSTMENT MANUAL
Document Number :
Rev. Commemts :
HELCO-C5-003-01 - 12 - A4(210㎜×297㎜)
3-6. HPI/HIP CAN Board Adjustment

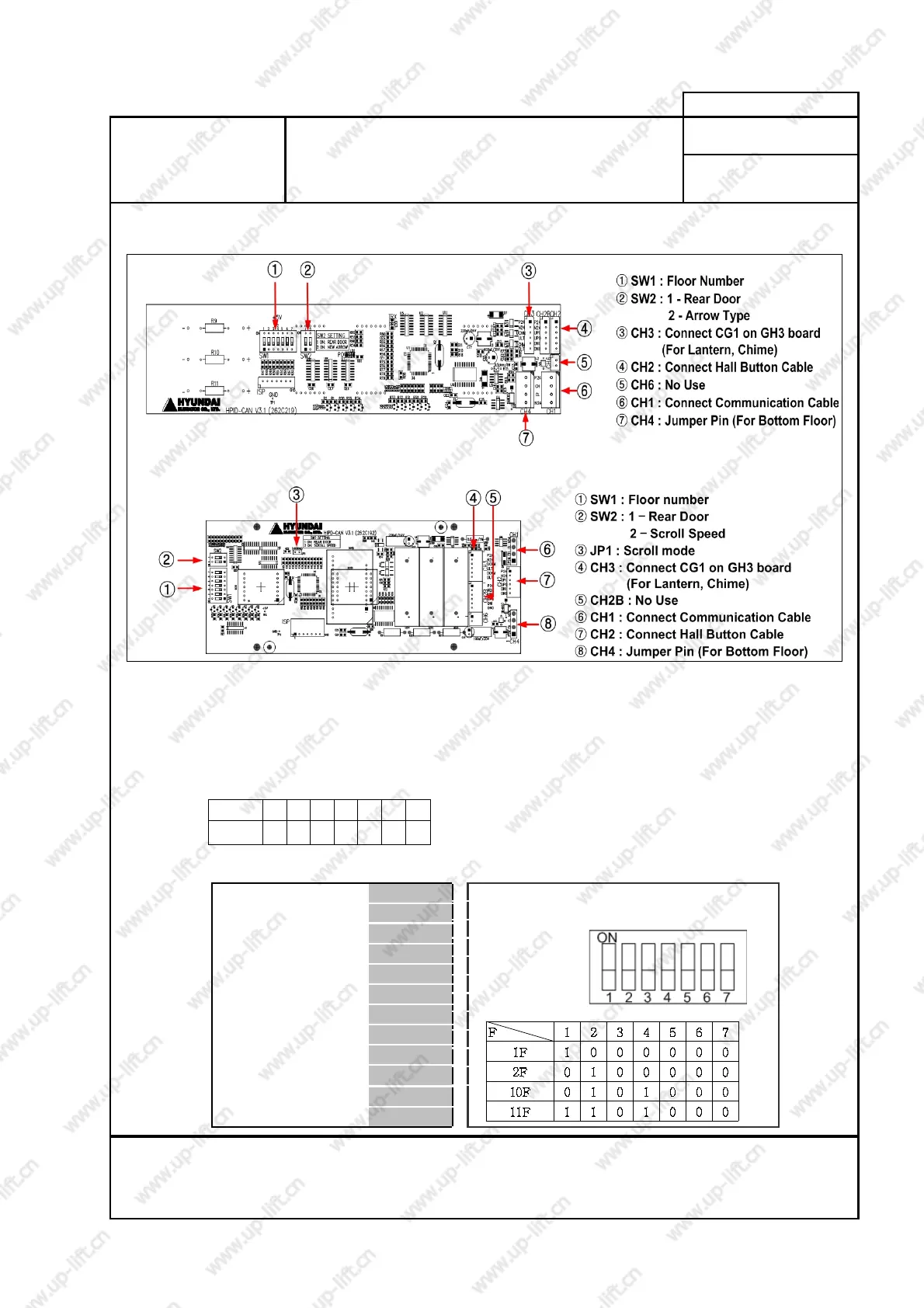

[Figure 9. HPI & HIP CAN Board]
(1) The color of HPI/HIP CAN board is Red.
(2) One set of HPI/HIP treats the data of one floors.
(3) Set a floor with SW1 on HPI/HIP CAN board.
SW1 1234567
EX) If you want to set 12 floor, set on Dip3, Dip4.
(Dip3 + Dip4 = 4 + 8 = 12)
Floor 1 2 4 8 16 32 64
Example)
SW1(0011000) 12F
* Caution *
SW1 is turned on by up direction.
1 : ON
0 : OFF
SW1(1101000) 11F
SW1(0101000)
10F
SW1(1001000)
9F
SW1(0001000)
8F
SW1(1110000)
7F
SW1(0110000)
6F
SW1(1010000)
5F
SW1(0010000)
4F
SW1(1100000) 3F
SW1(0100000)
2F
SW1(1000000)
1F
