Hyundai Elevator SSVF7 - 3-8. CPI-CAN Board Adjustment

Hyundai Elevator Co., Ltd. STVF7 SYSTEM
REV.0 2009.11.06
TITLE
File Name :
STVF7 ADJUST MANUAL
STVF7 SERIES
ADJUSTMENT MANUAL
Document Number :
Rev. Commemts :
HELCO-C5-003-01 - 15 - A4(210㎜×297㎜)
3-7. Voice Synthesizer
1) Voice synthesizer is a role of button sound and announcing the current floor.
2) If "SW2" all dip switches are on, you can listen all recorded sound.
3) For normal voice operation, please setup "SW2" all dip switches are off.
Cable Name From To
CAN communication CCB-7 CC54C Voice syn. CN2
Speaker cable speaker - Voice syn. CN4
Emergency power cable
Emergency
power supply
CN2 Voice syn. CN1
[Table 6. Voice synthesizer connection]

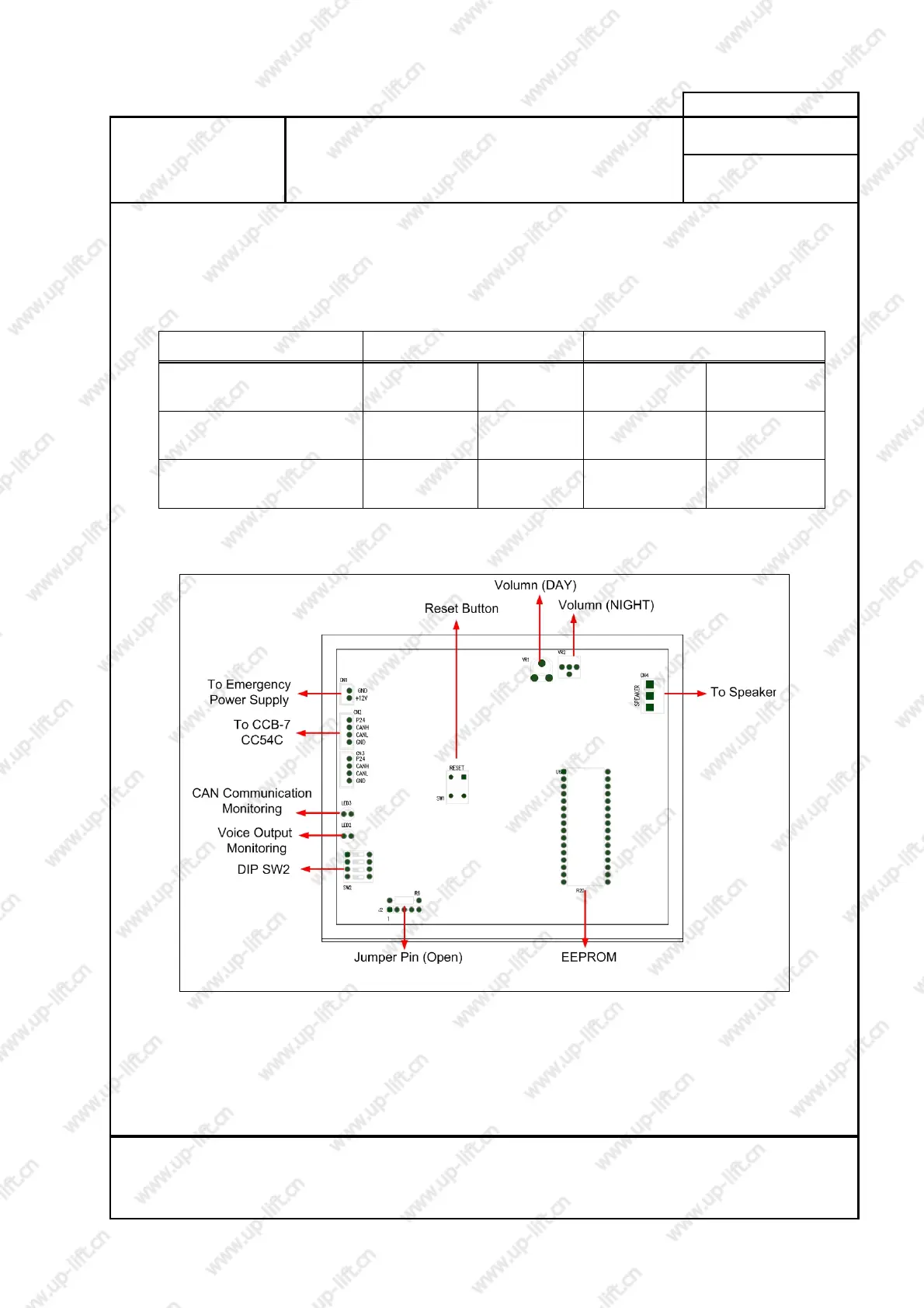

[Figure 12. Voice synthesizer]
