3-2. GIO Board Adjustment
(1) GIO board for ring group
- For ring group, 2 optical modules are inserted on GIO board.
- "D1" LED should be on in normal operation
- If "D1" LED not on, check the connection with the group controller or former elevator.
- And check the DC 24V power of CN3 connector.
- If #1 elevator, "select switch" should be on 1. (If #2, it should be on 2.)
- If changed "select switch", please push the reset button.
- For group operation, please refer to "STVF7 SERIES HHT MANUAL".

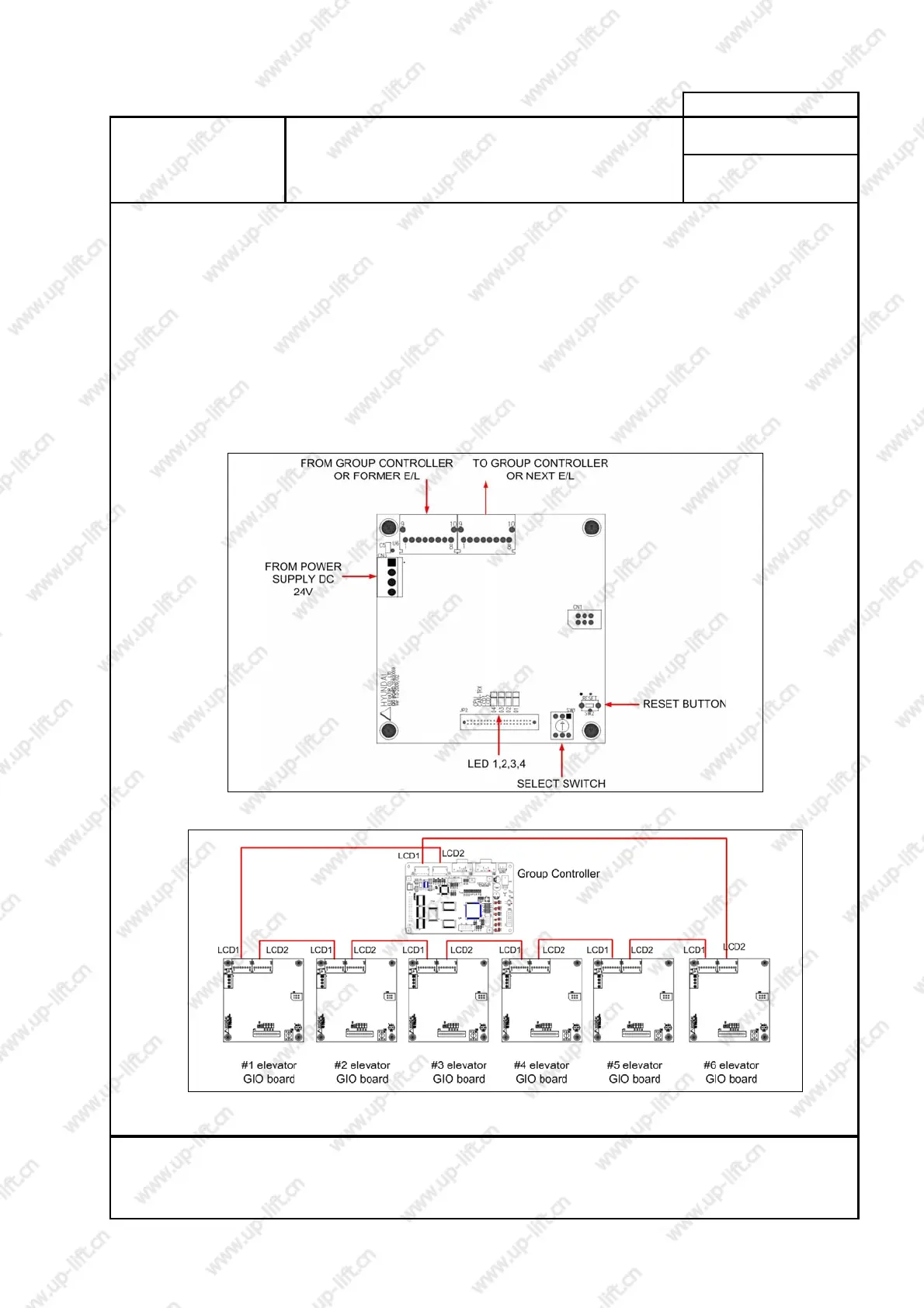

[Figure 3. GIO Board for Ring Group]
[Figure 4. Connection of Ring Group]
