Hyundai Elevator SSVF7 - 5-3. Operating Procedure; 5-4. Cautious Subjects

Hyundai Elevator Co., Ltd. STVF7 SYSTEM
REV.0 2009.11.06
TITLE
File Name :
STVF7 ADJUST MANUAL
STVF7 SERIES
ADJUSTMENT MANUAL
Document Number :
Rev. Commemts :
HELCO-C5-003-01 - 20 - A4(210㎜×297㎜)
5. INITIALIZING OPERATION (Initial Setting Operation for High-Speed)
5-1. Purpose
1) For the high speed operation, first of all, the main board of the inverter have to
detect each floor height (pulse count).
2) After the Initializing Operation, the high speed operation is feasible.
5-2. Check subjects
1) Check that inspection operation is feasible or not.
(If not, check the safety line, door line and any other errors.)
2) Move car where only DLA is off at bottom floor level.
<MCU Bd>
ULA ■ (on)
DZ ■ (on)
DLA □ (off)

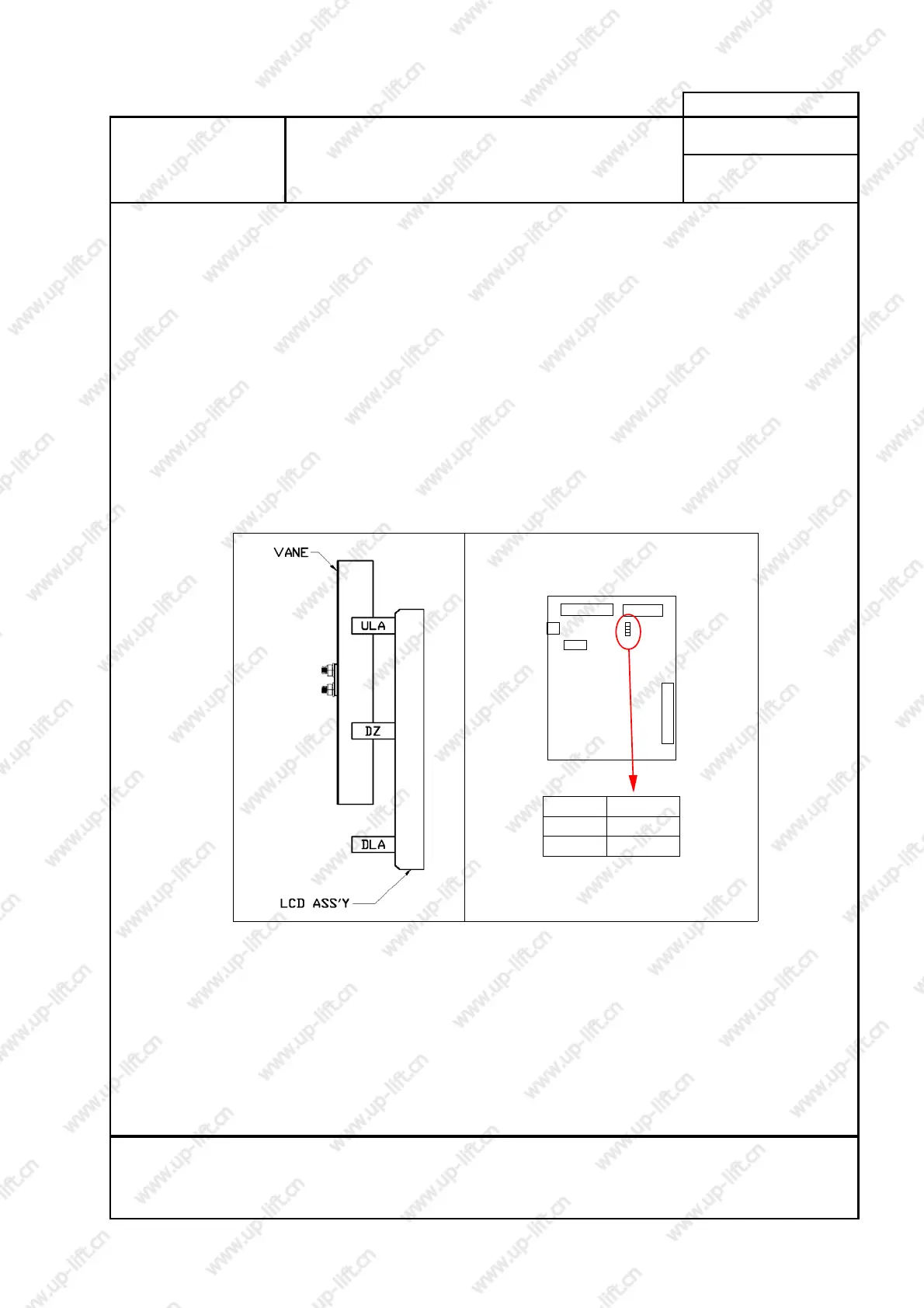

[Figure 16. Position of Landing Device and Vane for Initializing]
