Hyundai Elevator SSVF7 - 3-3. TNP Board Adjustment

Hyundai Elevator Co., Ltd. STVF7 SYSTEM
REV.0 2009.11.06
TITLE
File Name :
STVF7 ADJUST MANUAL
STVF7 SERIES
ADJUSTMENT MANUAL
Document Number :
Rev. Commemts :
HELCO-C5-003-01 - 8 - A4(210㎜×297㎜)
3-3. TNP Board Adjustment
- TNP (Terminal and Power) board is used for external input, output terminal, and power
transformation.

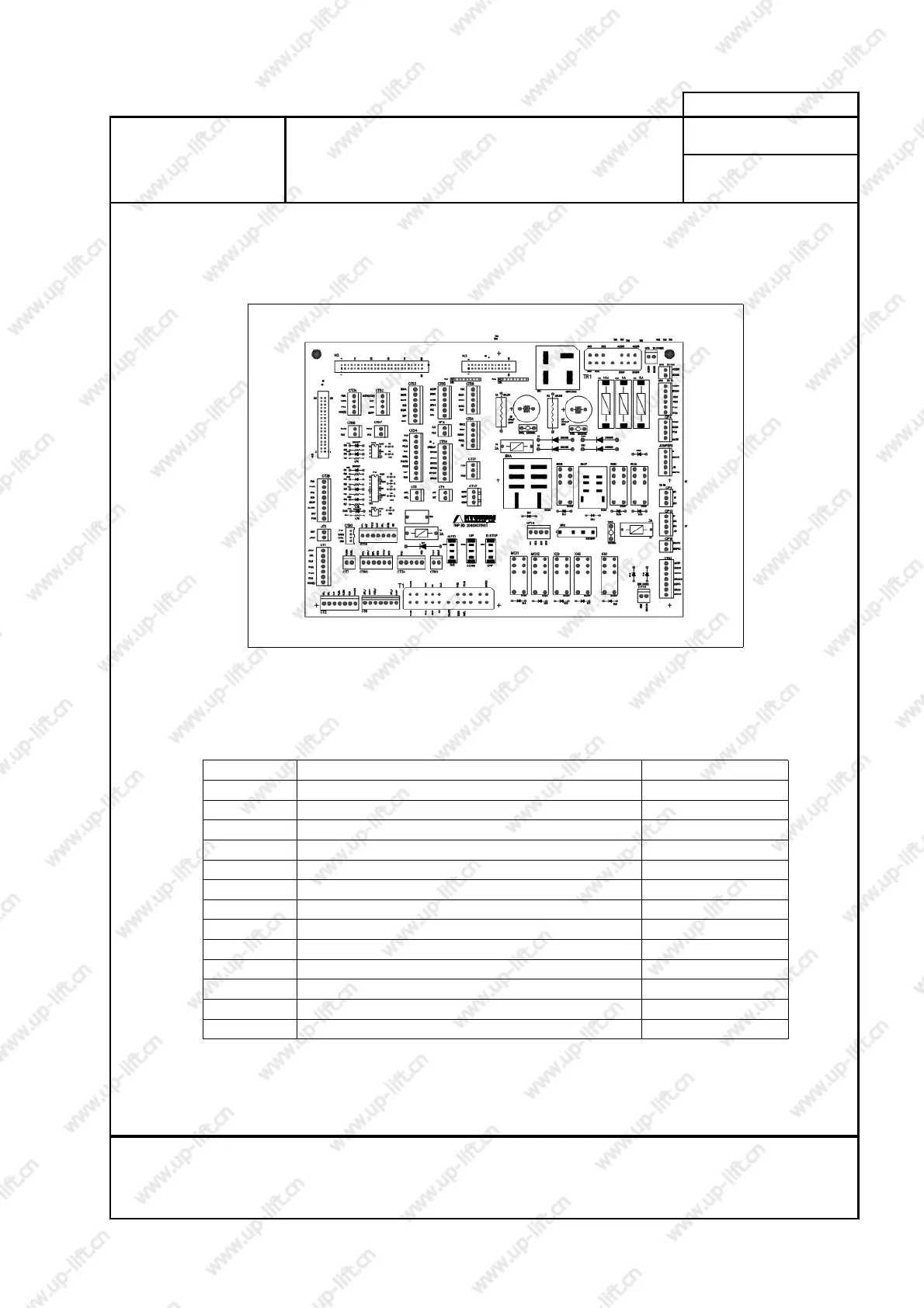

[Figure 6. TNP Board]
- Only "SSVF7" TNP board has a MCX2 relay, so TNP board of "SSVF7" is different from
that of "STVF7 and LXVF7".
Name Use Remark
BKA Brake Power line DC 24V
BRB BKB Contactor DC 24V
RBK sub brake "ON" in normal
BKP Variable Voltage of Brake Coil DC 24V
RUN BKA, BRB relay DC24V
X29 safety line DC 110V
MCX1 MC1 contactor
MCX2 MC2 contactor for SSVF7
X40 Car door interlock DC 110V
X41 Hatch door interlock DC 110V
SW1 AUTO/INS(Auto/Inspection)
SW2 UP/DOWN(Manual Up / down operation) at Inspection
SW3 ESTOP/OFF(safety line)
[Table 3. Specification of relays]
