N700 Operating Instructions and Parts Manual 9. Explanation of I-Group Function
103
9.2.19 Multi-speed acceleration/deceleration time setting (XT1, XT2, XT3)
(1) It is possible to set acceleration and deceleration time of multi-stage from 1
st
to 7
th
.
(2) Use the intelligent terminal function
XT1, XT2, and XT3
ex) Setting the multi-speed acceleration/deceleration time 1~3(XT1~XT3) to the intelligent input
terminal No. 1~3.
CM1
XT1
(38)
XT2
(39)
CM1
P24 PLC
XT3
(40)

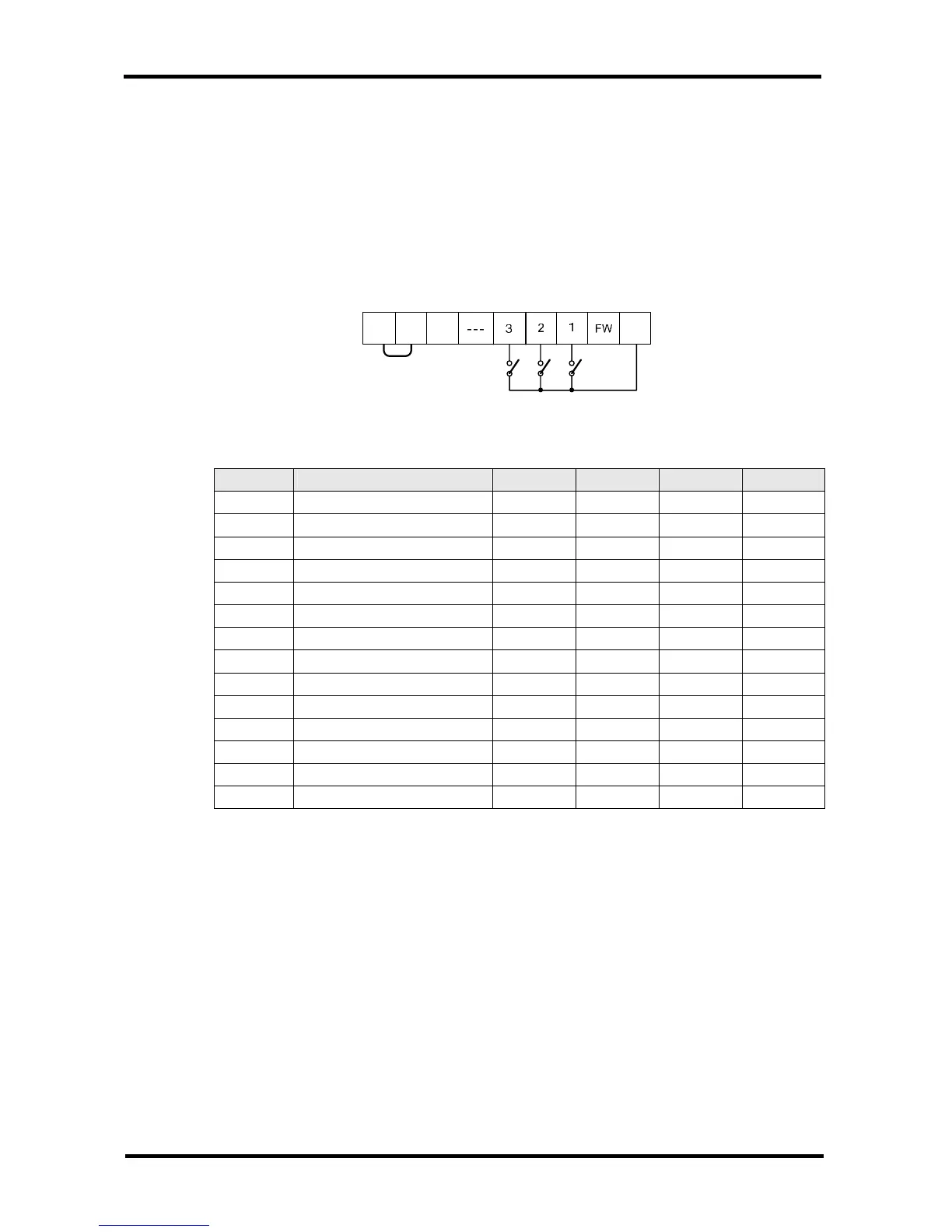

Fig. 9- 25 Multi-speed acceleration/deceleration time setting function selection
코드 기능명칭
XT3 XT2 XT1
초기값
A043 1
st
acceleration time 0 0 1 30.0
A044 1
st
deceleration time 0 0 1 30.0
A045 2nd acceleration time 0 1 0 30.0
A046 2nd deceleration time 0 1 0 30.0
A047 3rd acceleration time 0 1 1 30.0
A048 3rd deceleration time 0 1 1 30.0
A049 4th acceleration time 1 0 0 30.0
A050 4th deceleration time 1 0 0 30.0
A051 5th acceleration time 1 0 1 30.0
A052 5th deceleration time 1 0 1 30.0
A053 6th acceleration time 1 1 0 30.0
A054 6th deceleration time 1 1 0 30.0
A055 7th acceleration time 1 1 1 30.0
A056 7th deceleration time 1 1 1 30.0
Table 9- 16 Multi-speed acceleration/deceleration time setting code
